IMPORTANT!OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including calculating

working load limits, installation material being used, and periodic safety inspection of all installation

material and the projector. If you lack these qualifications, do not attempt the installation yourself, but

instead use a professional structural rigger. Improper installation can result in bodily injury and or

damage to property. The projector had to be installed out of the reach of people

DANGER OF FIRE! When installing the device, make sure there is no highly-inflammable

material(decoration articles, etc.)within a distance of min.0.5m.

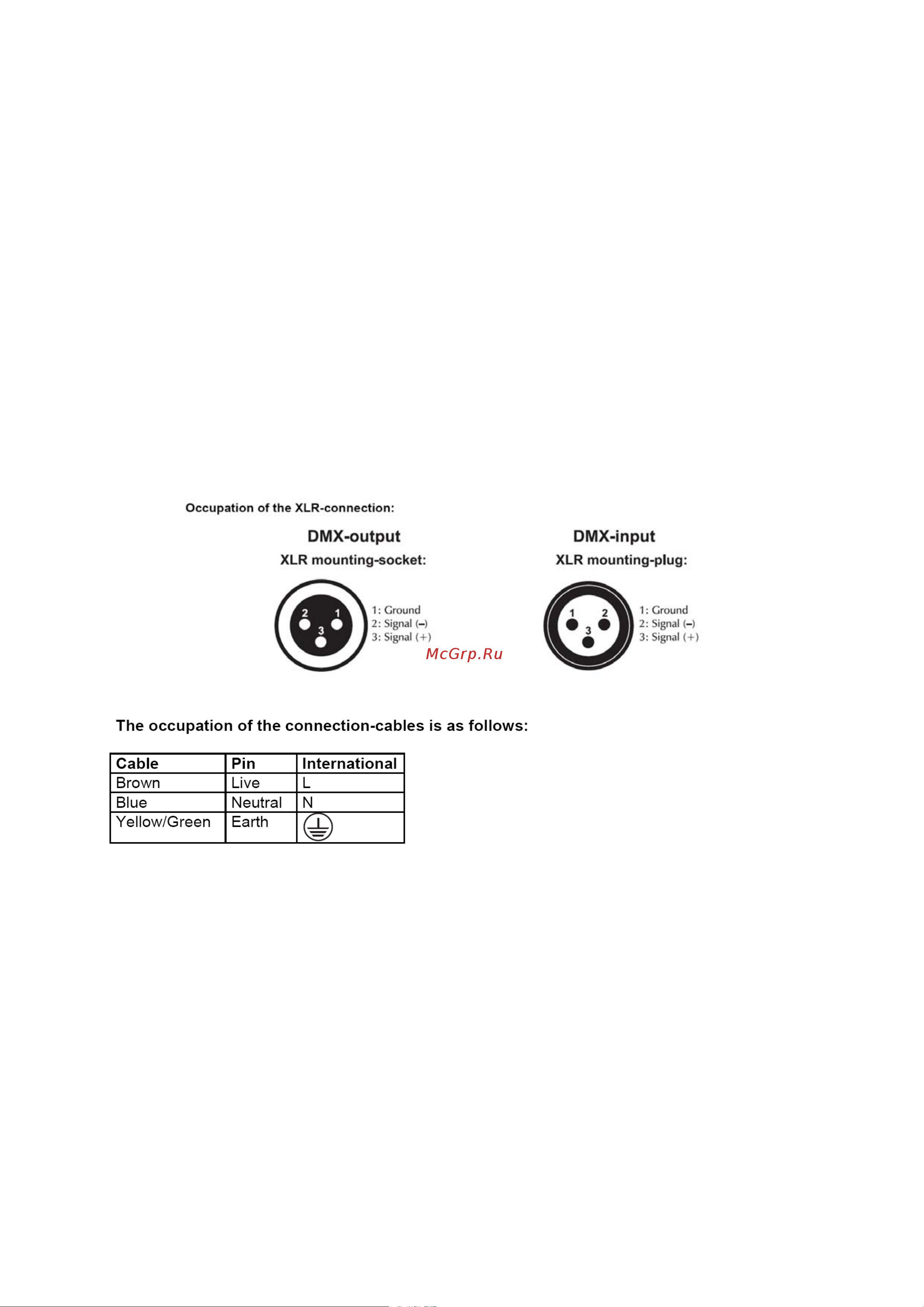

DMX 512 connection/ connection between fixture

The wires must not come into contact with each other, otherwise the fixture will not work at all or

properly. Please note the starting address depends upon which controller is being used. Only use a

DMX cable and 3-pin XLR-plugs and connectors in order to connect the controller with the fixture or one

fixture to another

Connection with the mains.

The earth has to be connected. The device must only be connected with an electric installation carried

out in compliance with IEC standards.

OPERATION

After you connected the effect to the mains, The fixture starts running

Stand Alone operation

In the stand alone mode, the fixture can be use without controller

Master/slave-operation

The master/slave-operation enables that several devices can be synchronized and controlled by one

master-device

DMX controlled operation

You can control the projectors individually via your DMX-controller

Addressing

The control board allows you to assign the DMX starting address,
