O Do not operate the vehicle if the battery
fluid is low. Low battery fluid can cause a
higher load on the battery which can
generate heat, reduce battery life, and in
some cases lead to an explosion.
O When working on or near a battery, al-
ways wear suitable eye protection and
remove all jewelry.
O Battery posts, terminals and related ac-
cessories contain lead and lead com-
pounds. Wash hands after handling.
O Keep the battery out of the reach of chil-
dren.

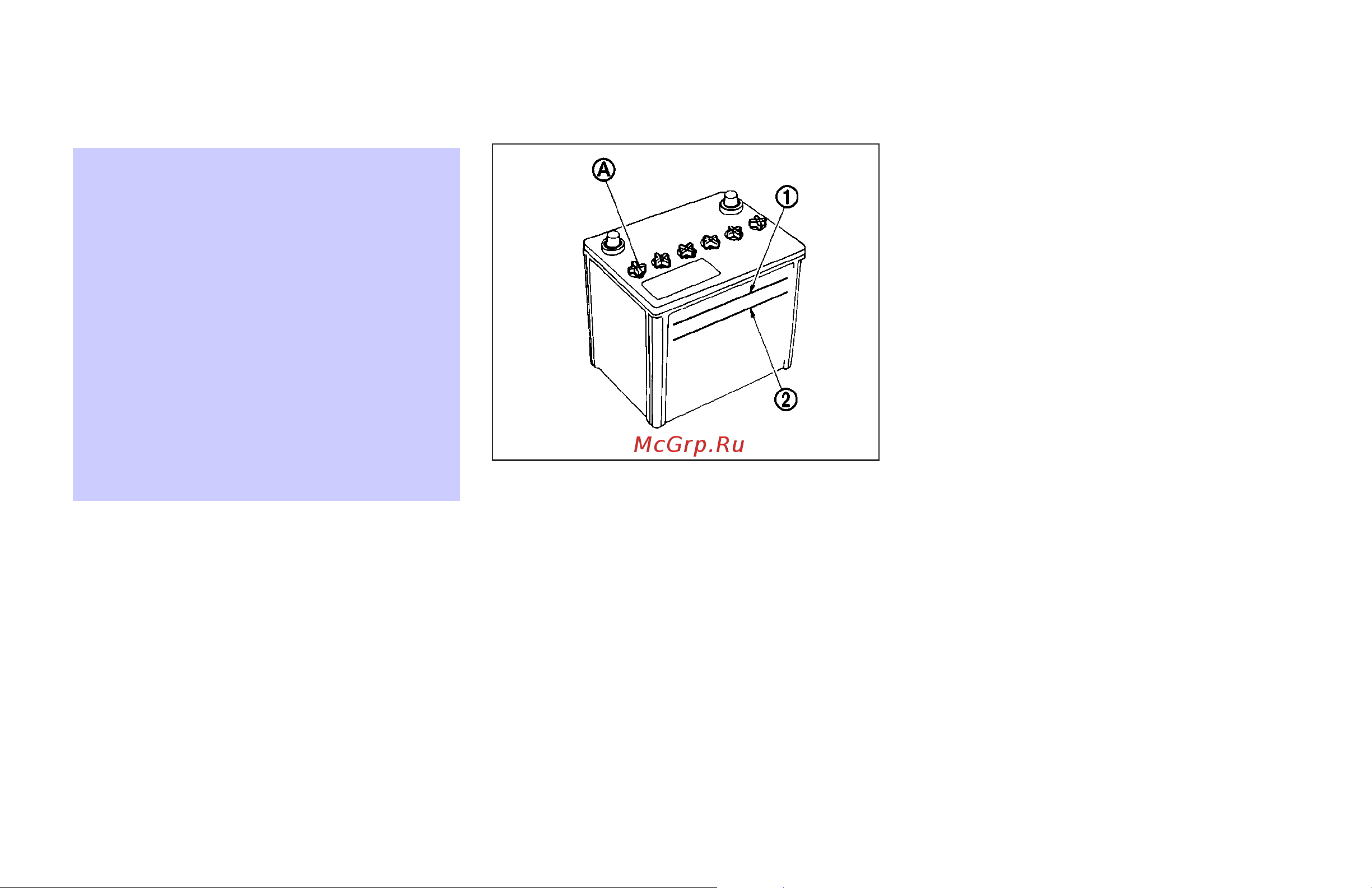

Check the fluid level in each cell. It
should be between the UPPER LEVEL
q
1
and LOWER LEVEL
q
2
lines.
If it is necessary to add fluid, add only
distilled water to bring the level to the in-
dicator in each filler opening. Do not over-
fill.
Vehicles operated in high temperatures or
under severe conditions require frequent
checks of the battery fluid level.
1. Remove the cell plugs
q
A
.
2. Add distilled water up to the UPPER
LEVEL
q
1
line.
3. Tighten cell plugs
q
A
.
Vehicles operated in high temperatures or
under severe conditions require frequent
checks of the battery fluid level.
DI0137MA
8-18 Maintenance and do-it-yourself
w 06.6.26/S50-D/V5.0 X
