11English

7.10 Replace (optional) carbon filters used during recirculation mode every 3-6

months depending on the intensity of using of the hood. To install the filters on a

T-shaped pin of a turbofan lid, axial pressure and clockwise rotation are required.

7.11 LED backlight lamps are installed in the cooker hood to illuminate a cooktop.

Before starting to replace the light bulbs, switch the cooker hood off and allow

them to cool down.

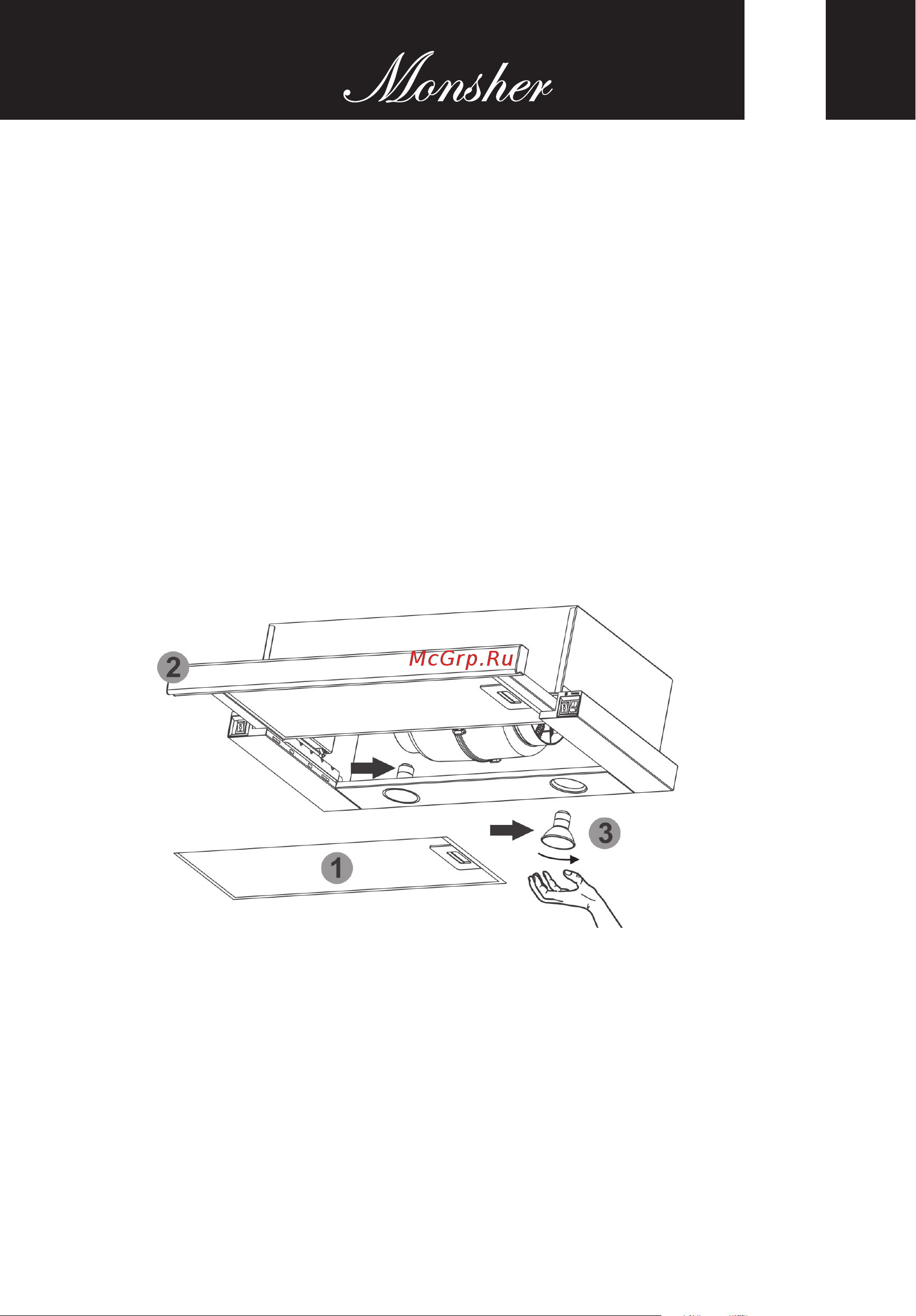

To replace a bulb, remove an aluminium filter 1, remove the pull-out panel with

filter 2, depress a bulb holder carrier such that the lamp 3 released from the

housing of the cooker hood, holding the holder carrier, lightly push the bulb in the

direction of the holder, and turning it counterclockwise remove it from the housing

of the hood (Fig. 7). Then, install a new one with the same characteristics and insert

a aluminium filter.

Fig.7
