INSTALLATION INSTRUCTIONS
Two persons are required for proper installation. A
qualified installer should be commissioned to make the
connection.

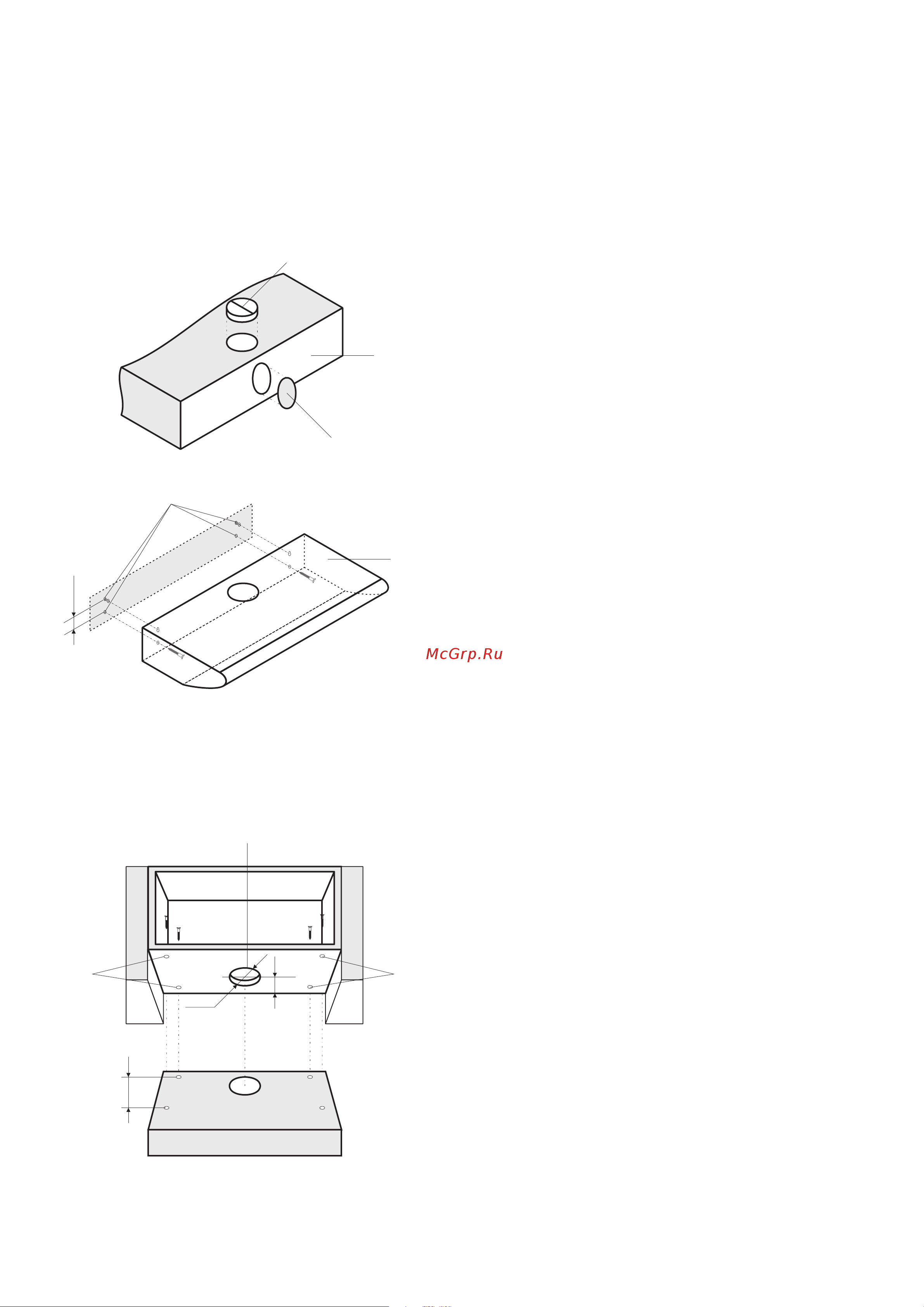

INSTALLATION OF THE COOKER HOOD
• Remove the grease filter before proceeding with
the assembly instructions (see p. 20). This will
make the appliance easier to handle.
• For an operation in air extractor mode set the V-
flap 1 concerning your requirements to the one of
two (top/ rear) exhaust outlets, another outlet
cove with a special plug
2. In odour absorber
mode both outlets should be opened.
• Trace a vertical line on the wall to indicate the
centre of the cooker plate. Place a hood body 3 to
the wall, set it symmetrically in relation to the
central line, the distance between its bottom side
and a
heating plate should be minimum of 650
mm (see p. 12).
Wall mounting
• Level the hood body horizontally. Mark the
installation openings 4 on the wall.
• Drill the holes as indicated on the wall, using drill
of 8 mm diameter. Drive the plugs in and then
hang the hood body on the
wall using 2 top
screws. Tighten the bottom screws.
Mounting under a wall unit
• For the air extractor mode of the cooker hood with
a vertical location of the vent conduit using the top
outlet, make an opening 5 of Ø 133 mm in the
bottom of the wall unit in advance
in accordance
with the drawing.
• Drill in the wall unit the holes 6 in predefined
places with a drill of Ø 6 mm. Fasten the cooker
hood with a 4 screws, operate inside of the wall
unit.
•If the cooker hood will be use in extractor mode it
is necessary
to mount a vent conduit of Ø 125 mm
on the fixed V-flap 1.
EN
44
85
Ø 133
256
2
3
3
1
4
5
66
6
