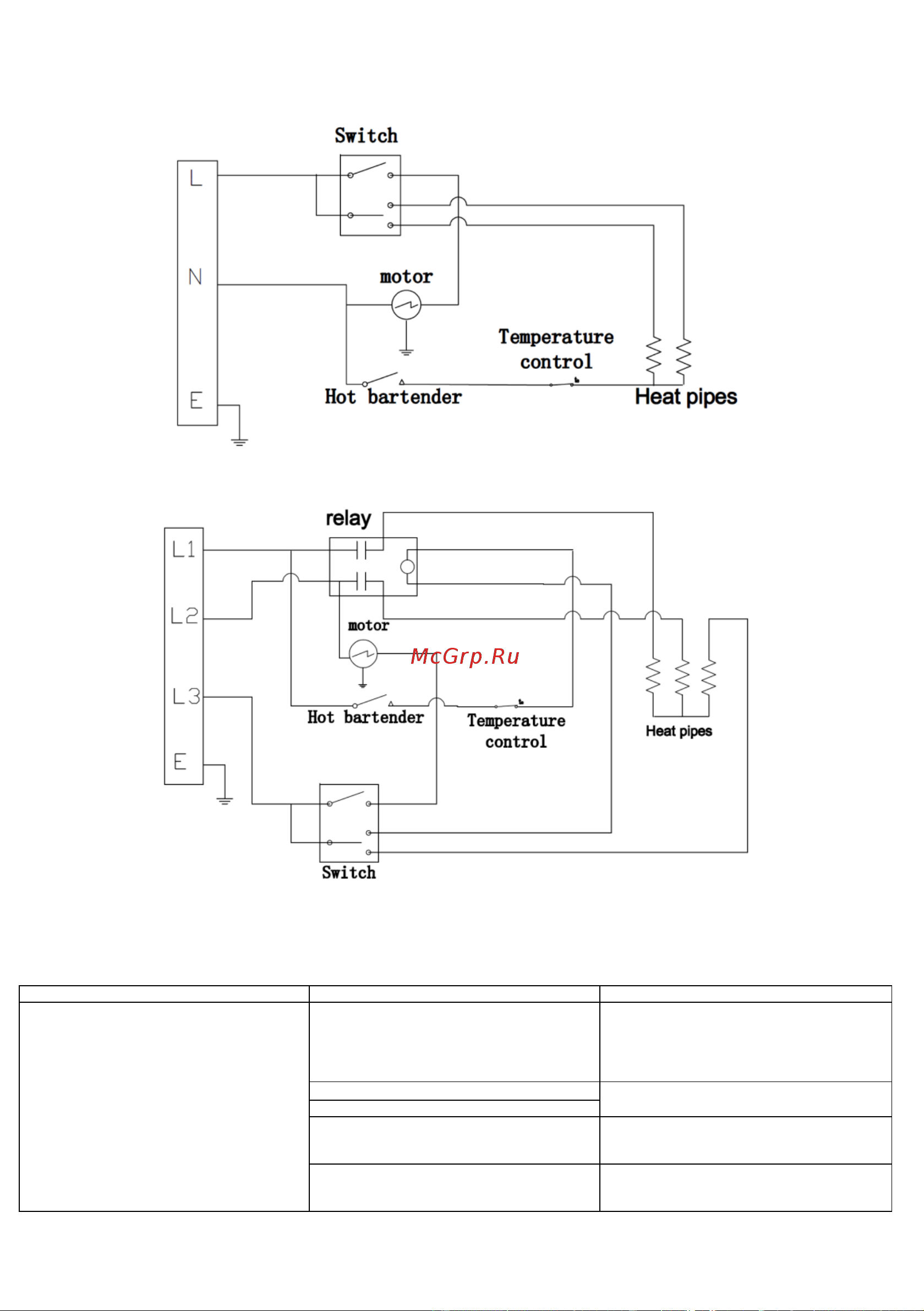

10. WIRING DIAGRAM

Models T-HG2-Q11T, T-HG3-Q11T, T-HG3-Q12T

Models T-HG5-Q12T

11. TROUBLESHOOTING

If it is impossible to fix these malfunctions with these methods, contact the authorized service center.

Malfunction

Possible cause

Solution

The device is connected

to the network but doesn’t work

No power

Check whether the power

supply is disconnected from

the device and, if necessary,

connect device to power supply

Defective operation mode switch

Contact an authorized service

center

Defective motor

Low heating temperature is set on

thermostat

Set the temperature higher on

thermostat by rotating the handle

clockwise

Faulty contact connection in

wiring scheme of electrical circuit

Contact an authorized service

center or restore reliable

contact connection
