Chapter 13 Spanning Tree Protocol

GS2200-8/24 User’s Guide

114

13.4 Configure Rapid Spanning Tree Protocol

Use this screen to configure RSTP settings, see (Rapid) Spanning Tree Protocol on page 110 for

more information on RSTP. Click RSTP in the Advanced Application > Spanning Tree Protocol

screen.

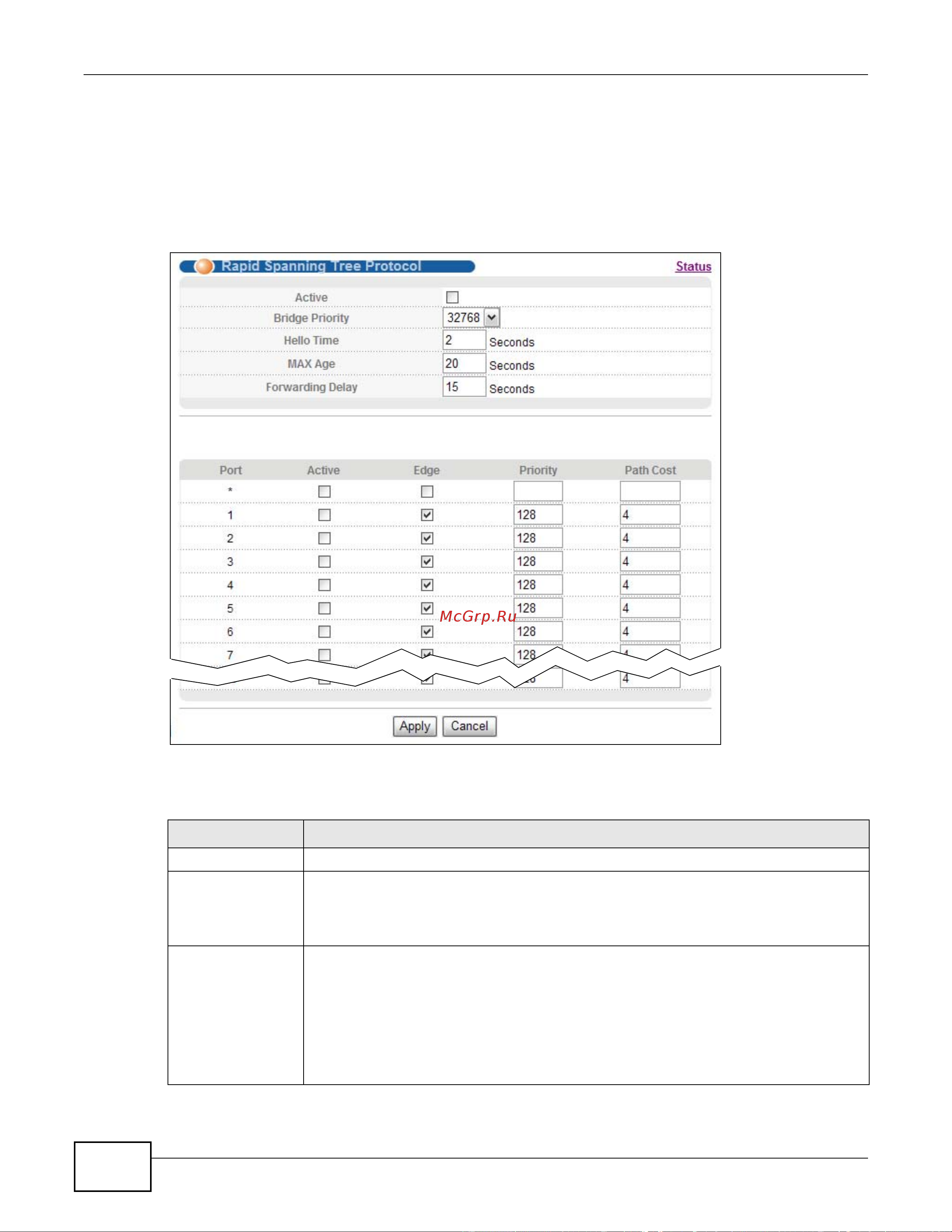

Figure 71 Advanced Application > Spanning Tree Protocol > RSTP

The following table describes the labels in this screen.

Table 30 Advanced Application > Spanning Tree Protocol > RSTP

LABEL DESCRIPTION

Status Click Status to display the RSTP Status screen (see Figure 72 on page 116).

Active Select this check box to activate RSTP. Clear this checkbox to disable RSTP.

Note: You must also activate Rapid Spanning Tree in the Advanced Application >

Spanning Tree Protocol > Configuration screen to enable RSTP on the Switch.

Bridge Priority Bridge priority is used in determining the root switch, root port and designated port. The

switch with the highest priority (lowest numeric value) becomes the STP root switch. If

all switches have the same priority, the switch with the lowest MAC address will then

become the root switch. Select a value from the drop-down list box.

The lower the numeric value you assign, the higher the priority for this bridge.

Bridge Priority determines the root bridge, which in turn determines Hello Time, Max

Age and Forwarding Delay.
