Chapter 13 Spanning Tree Protocol

GS2200-8/24 User’s Guide

123

13.8.1 Multiple Spanning Tree Protocol Port Configuration

To configure MSTP ports, click Port in the Advanced Application > Spanning Tree Protocol >

MSTP screen.

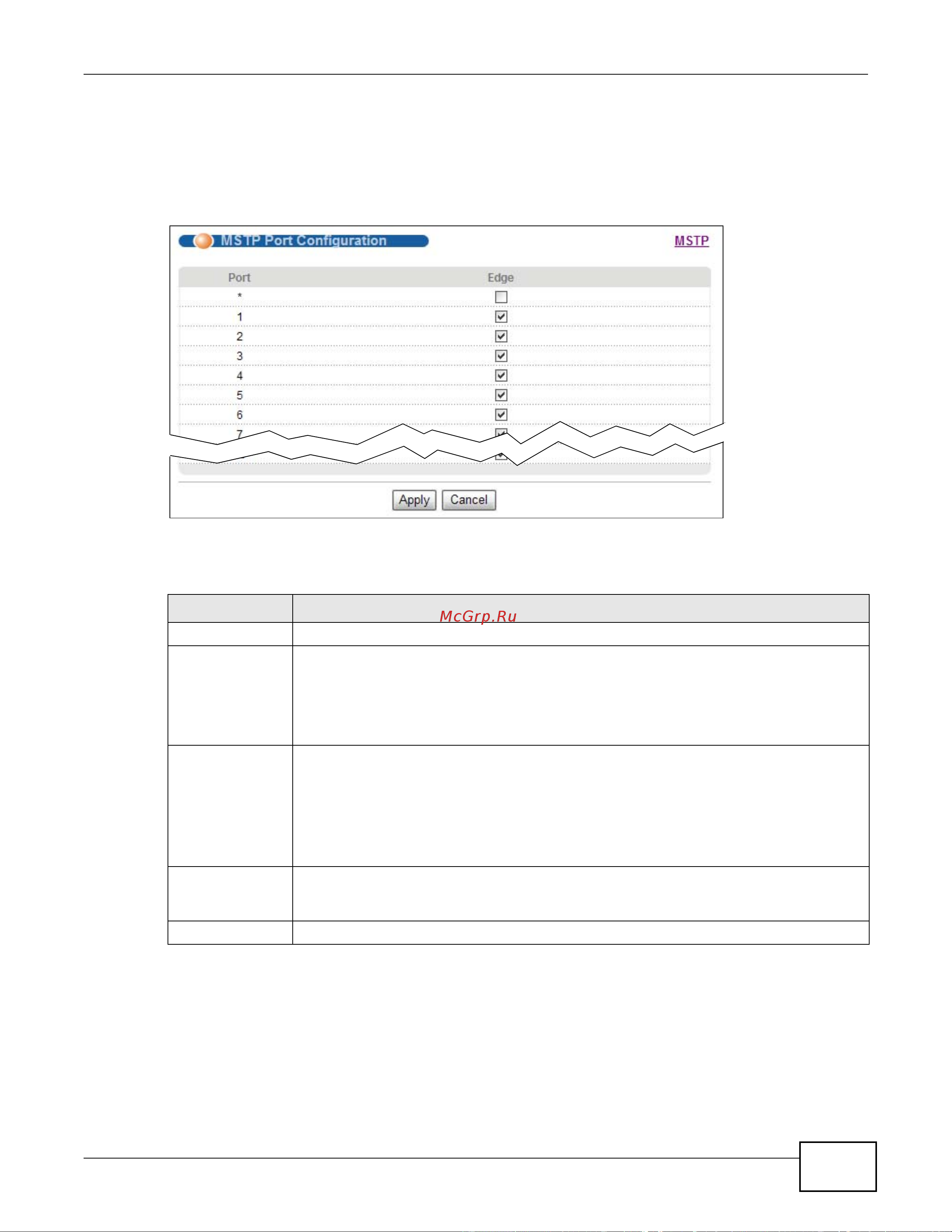

Figure 76 Advanced Application > Spanning Tree Protocol > MSTP > Port

The following table describes the labels in this screen.

13.9 Multiple Spanning Tree Protocol Status

Click Advanced Application > Spanning Tree Protocol in the navigation panel to display the

status screen as shown next. See Multiple STP on page 112 for more information on MSTP.

Table 35 Advanced Application > Spanning Tree Protocol > MSTP > Port

LABEL DESCRIPTION

Port This field displays the port number.

* Settings in this row apply to all ports.

Use this row only if you want to make some settings the same for all ports. Use this row

first to set the common settings and then make adjustments on a port-by-port basis.

Note: Changes in this row are copied to all the ports as soon as you make them.

Edge Select this check box to configure a port as an edge port when it is directly attached to a

computer. An edge port changes its initial STP port state from blocking state to forwarding

state immediately without going through listening and learning states right after the port

is configured as an edge port or when its link status changes.

Note: An edge port becomes a non-edge port as soon as it receives a Bridge Protocol Data

Unit (BPDU).

Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses

these changes if it is turned off or loses power, so use the Save link on the top navigation

panel to save your changes to the non-volatile memory when you are done configuring.

Cancel Click Cancel to begin configuring this screen afresh.
