Chapter 16 Mirroring

GS2200-8/24 User’s Guide

135

16.2 Port Mirroring Setup

Click Advanced Application > Mirroring in the navigation panel to display the Mirroring screen.

Use this screen to select a monitor port and specify the traffic flow to be copied to the monitor port.

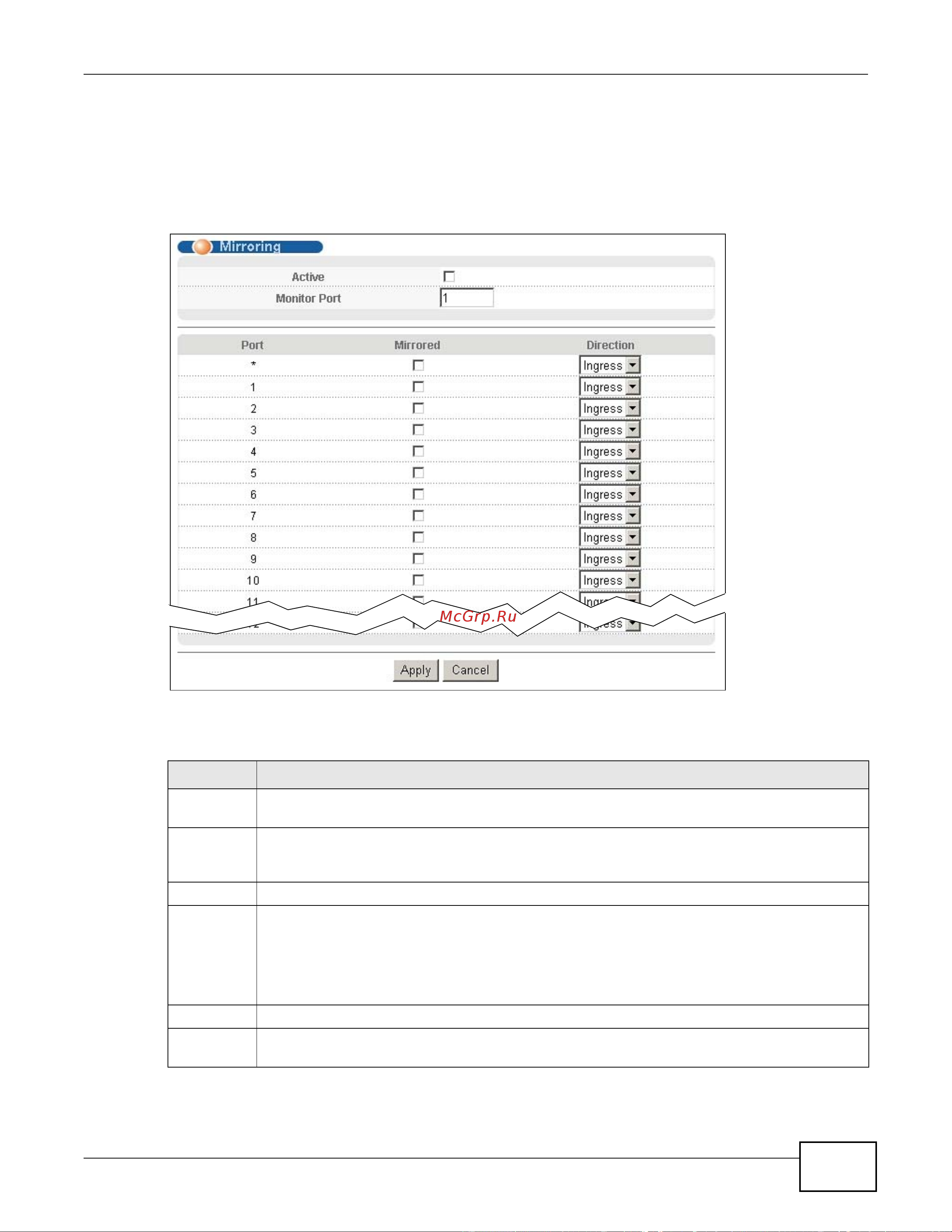

Figure 84 Advanced Application > Mirroring

The following table describes the labels in this screen.

Table 39 Advanced Application > Mirroring

LABEL DESCRIPTION

Active Select this check box to activate port mirroring on the Switch. Clear this check box to disable

the feature.

Monitor Port The monitor port is the port you copy the traffic to in order to examine it in more detail without

interfering with the traffic flow on the original port(s). Enter the port number of the monitor

port.

Port This field displays the port number.

* Settings in this row apply to all ports.

Use this row only if you want to make some settings the same for all ports. Use this row first to

set the common settings and then make adjustments on a port-by-port basis.

Note: Changes in this row are copied to all the ports as soon as you make them.

Mirrored Select this option to mirror the traffic on a port.

Direction Specify the direction of the traffic to mirror by selecting from the drop-down list box. Choices

are Egress (outgoing), Ingress (incoming) and Both.
