Chapter 17 Link Aggregation

GS2200-8/24 User’s Guide

144

1 Make your physical connections - make sure that the ports that you want to belong to the trunk

group are connected to the same destination. The following figure shows ports 2-5 on switch A

connected to switch B.

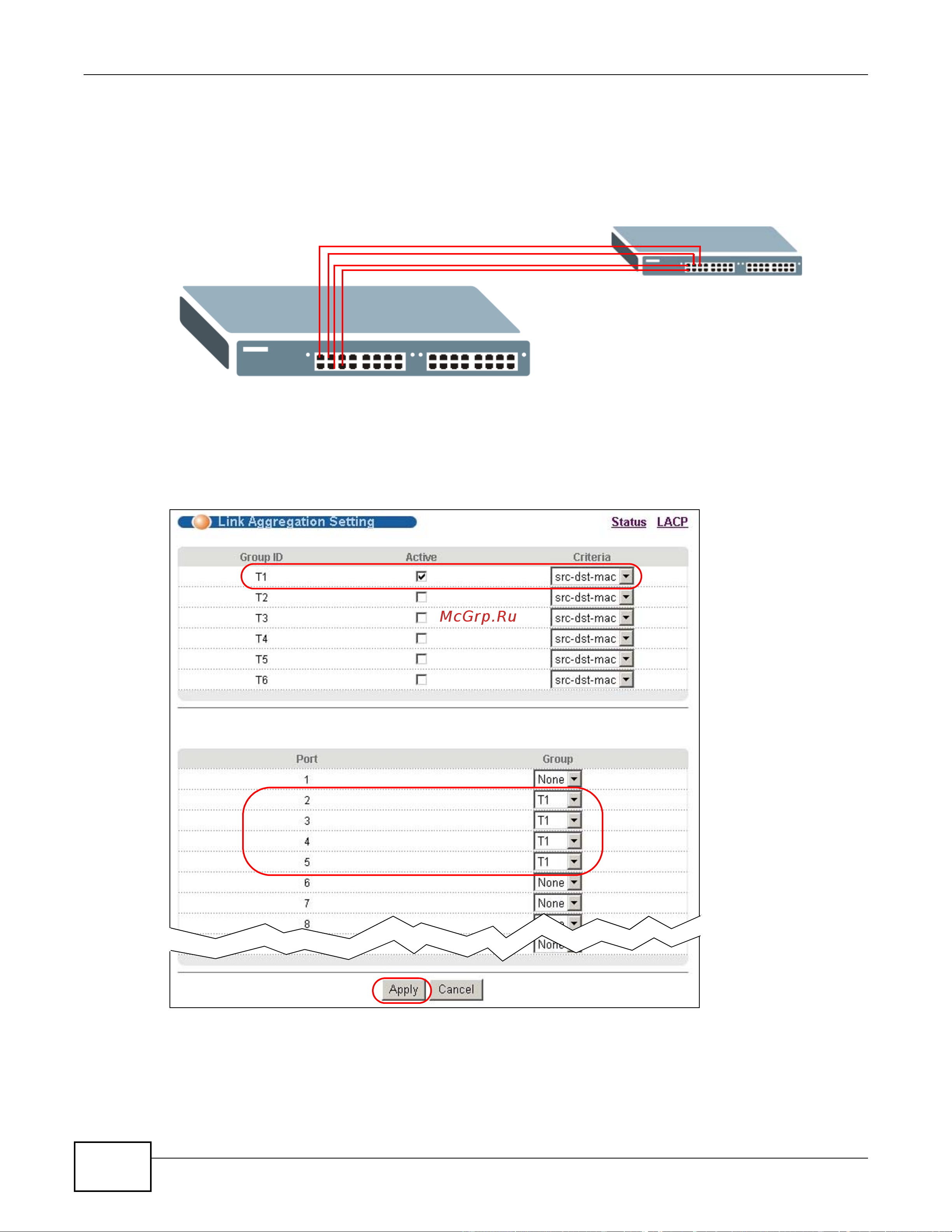

Figure 88 Trunking Example - Physical Connections

2 Configure static trunking - Click Advanced Application > Link Aggregation > Link

Aggregation Setting. In this screen activate trunk group T1, select the traffic distribution

algorithm used by this group and select the ports that should belong to this group as shown in the

figure below. Click Apply when you are done.

Figure 89 Trunking Example - Configuration Screen

Your trunk group 1 (T1) configuration is now complete.
