Chapter 22 Queuing Method

GS2200-8/24 User’s Guide

166

an equal amount of bandwidth, and then moves to the end of the list; and so on, depending on the

number of queues being used. This works in a looping fashion until a queue is empty.

Weighted Round Robin Scheduling (WRR) uses the same algorithm as round robin scheduling, but

services queues based on their priority and queue weight (the number you configure in the queue

Weight field) rather than a fixed amount of bandwidth. WRR is activated only when a port has

more traffic than it can handle. Queues with larger weights get more service than queues with

smaller weights. This queuing mechanism is highly efficient in that it divides any available

bandwidth across the different traffic queues and returns to queues that have not yet emptied.

22.2 Configuring Queuing

Use this screen to set priorities for the queues of the Switch. This distributes bandwidth across the

different traffic queues.

Click Advanced Application > Queuing Method in the navigation panel.

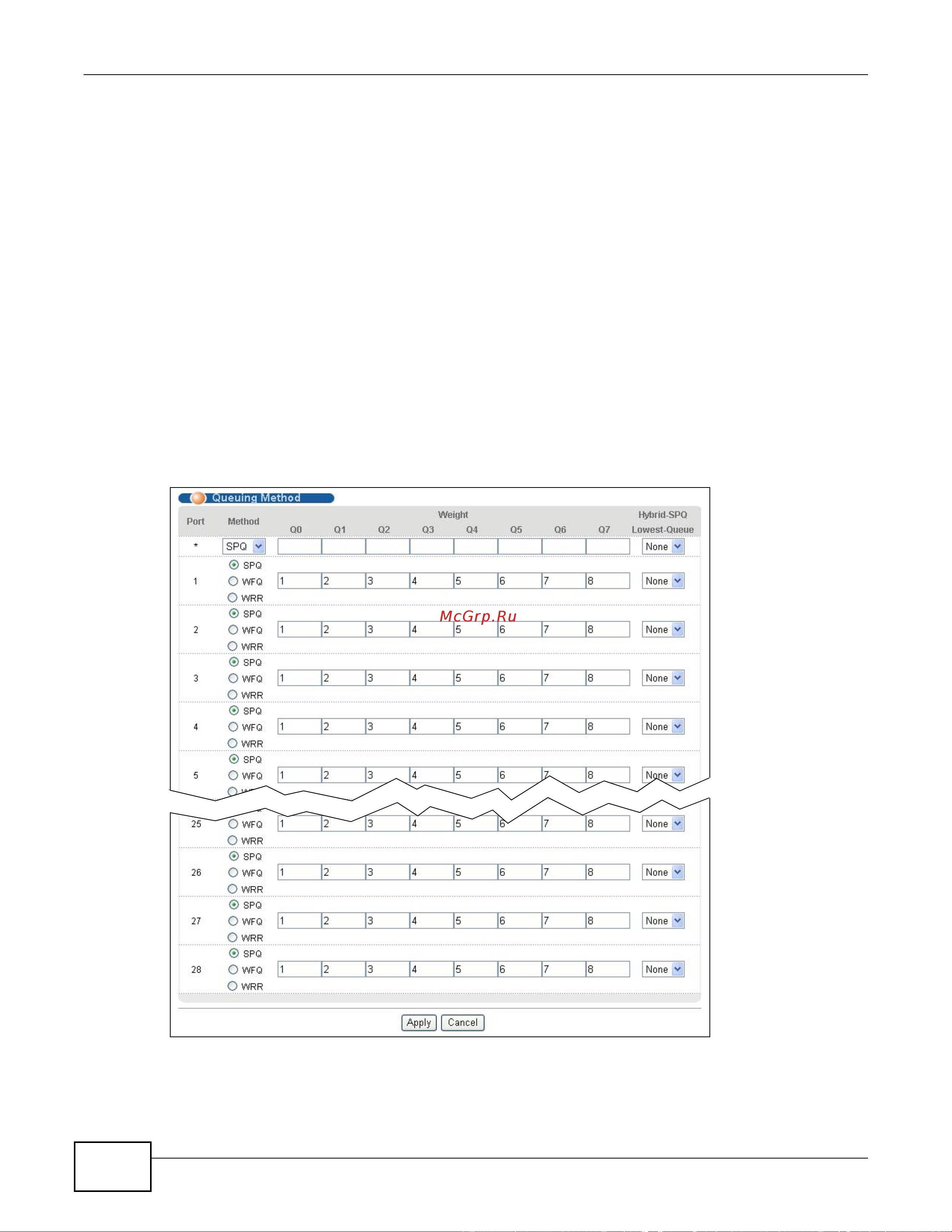

Figure 102 Advanced Application > Queuing Method
