Chapter 23 Multicast

GS2200-8/24 User’s Guide

178

23.6.1 MVR Group Configuration

All source ports and receiver ports belonging to a multicast group can receive multicast data sent to

this multicast group.

Configure MVR IP multicast group address(es) in the Group Configuration screen. Click Group

Configuration in the MVR screen.

Note: A port can belong to more than one multicast VLAN. However, IP multicast group

addresses in different multicast VLANs cannot overlap.

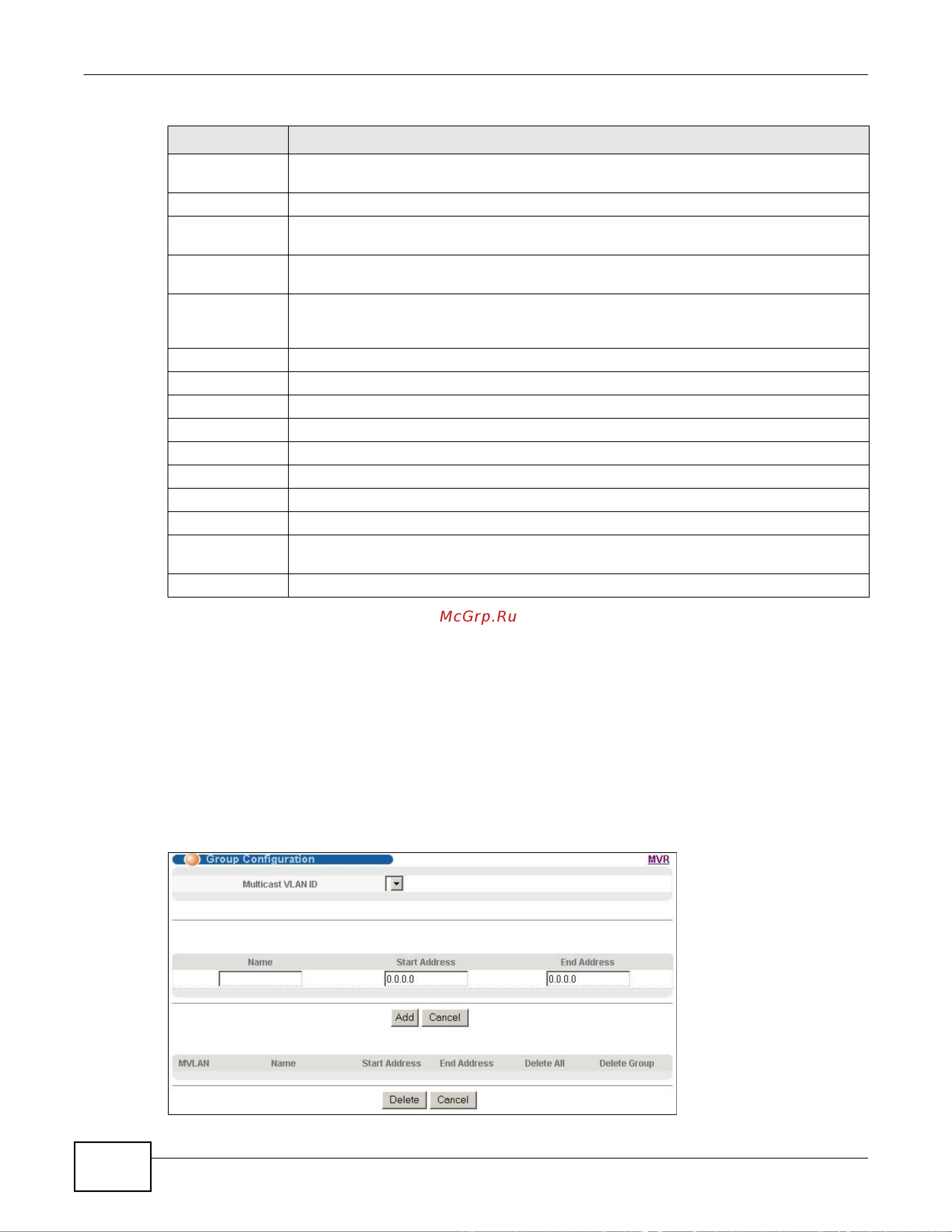

Figure 110 Advanced Application > Multicast > Multicast Setting > MVR: Group Configuration

Source Port Select this option to set this port as the MVR source port that sends and receives multicast

traffic. All source ports must belong to a single multicast VLAN.

Receiver Port Select this option to set this port as a receiver port that only receives multicast traffic.

None Select this option to set the port not to participate in MVR. No MVR multicast traffic is sent

or received on this port.

Tagging Select this checkbox if you want the port to tag the VLAN ID in all outgoing frames

transmitted.

Add Click Add to save your changes to the Switch’s run-time memory. The Switch loses these

changes if it is turned off or loses power, so use the Save link on the top navigation panel

to save your changes to the non-volatile memory when you are done configuring.

Cancel Click Cancel to begin configuring this screen afresh.

VLAN This field displays the multicast VLAN ID.

Active This field displays whether the multicast group is enabled or not.

Name This field displays the descriptive name for this setting.

Mode This field displays the MVR mode.

Source Port This field displays the source port number(s).

Receiver Port This field displays the receiver port number(s).

802.1p This field displays the priority level.

Delete To delete a multicast VLAN(s), select the rule(s) that you want to remove in the Delete

column, then click the Delete button.

Cancel Click Cancel to clear the Delete check boxes.

Table 59 Advanced Application > Multicast > Multicast Setting > MVR (continued)

LABEL DESCRIPTION
