Chapter 25 IP Source Guard

GS2200-8/24 User’s Guide

206

25.8 ARP Inspection Log Status

Use this screen to look at log messages that were generated by ARP packets and that have not

been sent to the syslog server yet. To open this screen, click Advanced Application > IP Source

Guard > ARP Inspection > Log Status.

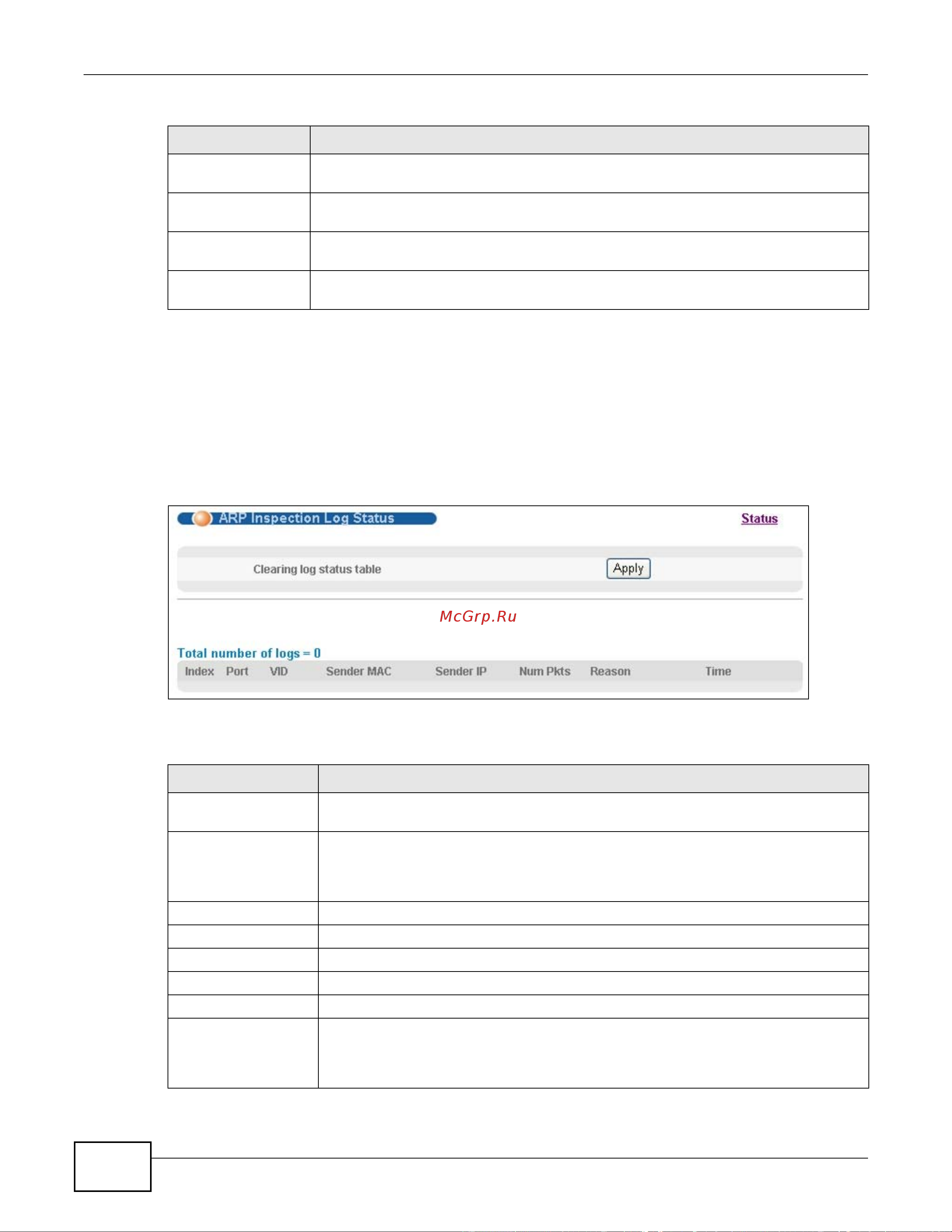

Figure 128 ARP Inspection Log Status

The following table describes the labels in this screen.

Request This field displays the total number of ARP Request packets received from the VLAN

since the Switch last restarted.

Reply This field displays the total number of ARP Reply packets received from the VLAN since

the Switch last restarted.

Forwarded This field displays the total number of ARP packets the Switch forwarded for the VLAN

since the Switch last restarted.

Dropped This field displays the total number of ARP packets the Switch discarded for the VLAN

since the Switch last restarted.

Table 74 ARP Inspection VLAN Status

LABEL DESCRIPTION

Table 75 ARP Inspection Log Status

LABEL DESCRIPTION

Clearing log status

table

Click Apply to remove all the log messages that were generated by ARP packets and

that have not been sent to the syslog server yet.

Total number of logs This field displays the number of log messages that were generated by ARP packets

and that have not been sent to the syslog server yet. If one or more log messages are

dropped due to unavailable buffer, there is an entry called overflow with the current

number of dropped log messages.

Index This field displays a sequential number for each log message.

Port This field displays the source port of the ARP packet.

VID This field displays the source VLAN ID of the ARP packet.

Sender MAC This field displays the source MAC address of the ARP packet.

Sender IP This field displays the source IP address of the ARP packet.

Num Pkts This field displays the number of ARP packets that were consolidated into this log

message. The Switch consolidates identical log messages generated by ARP packets in

the log consolidation interval into one log message. You can configure this interval in

the ARP Inspection Configure screen. See Section 25.9 on page 207.
