Chapter 31 Differentiated Services

GS2200-8/24 User’s Guide

242

The following table describes the labels in this screen.

31.3 DSCP-to-IEEE 802.1p Priority Settings

You can configure the DSCP to IEEE 802.1p mapping to allow the Switch to prioritize all traffic

based on the incoming DSCP value according to the DiffServ to IEEE 802.1p mapping table.

The following table shows the default DSCP-to-IEEE802.1p mapping.

31.3.1 Configuring DSCP Settings

To change the DSCP-IEEE 802.1p mapping click the DSCP Setting link in the DiffServ screen to

display the screen as shown next.

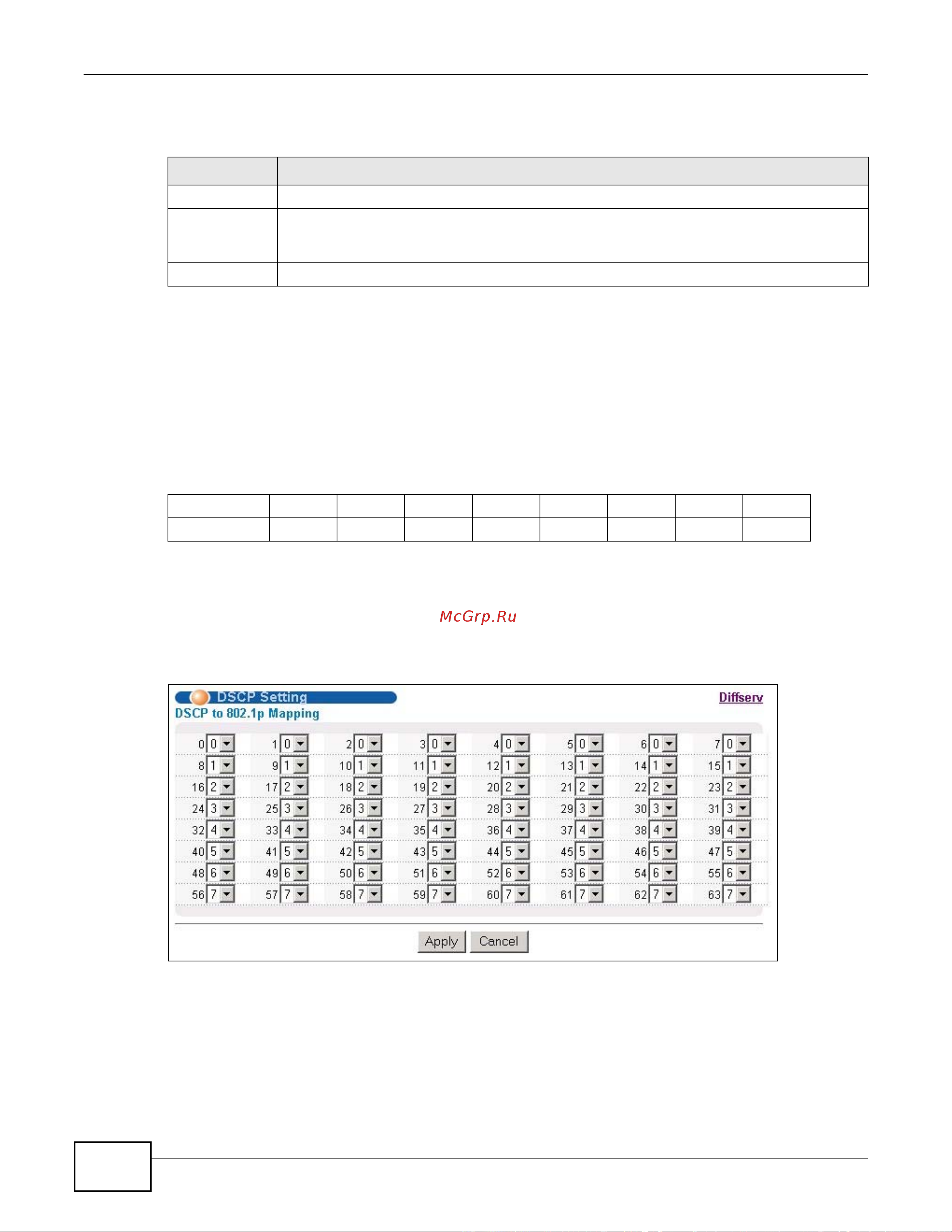

Figure 156 IP Application > DiffServ > DSCP Setting

Table 94 IP Application > DiffServ

LABEL DESCRIPTION

Active Select this option to enable DiffServ on the Switch.

Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses these

changes if it is turned off or loses power, so use the Save link on the top navigation panel to

save your changes to the non-volatile memory when you are done configuring.

Cancel Click Cancel to begin configuring this screen afresh.

Table 95 Default DSCP-IEEE 802.1p Mapping

DSCP VALUE 0 – 7 8 – 15 16 – 23 24 – 31 32 – 39 40 – 47 48 – 55 56 – 63

IEEE 802.1p 01234567
