Chapter 2 Hardware Installation and Connection

GS2200-8/24 User’s Guide

2 Align the holes on the back of the Switch with the screws on the wall. Hang the Switch on the

screws.

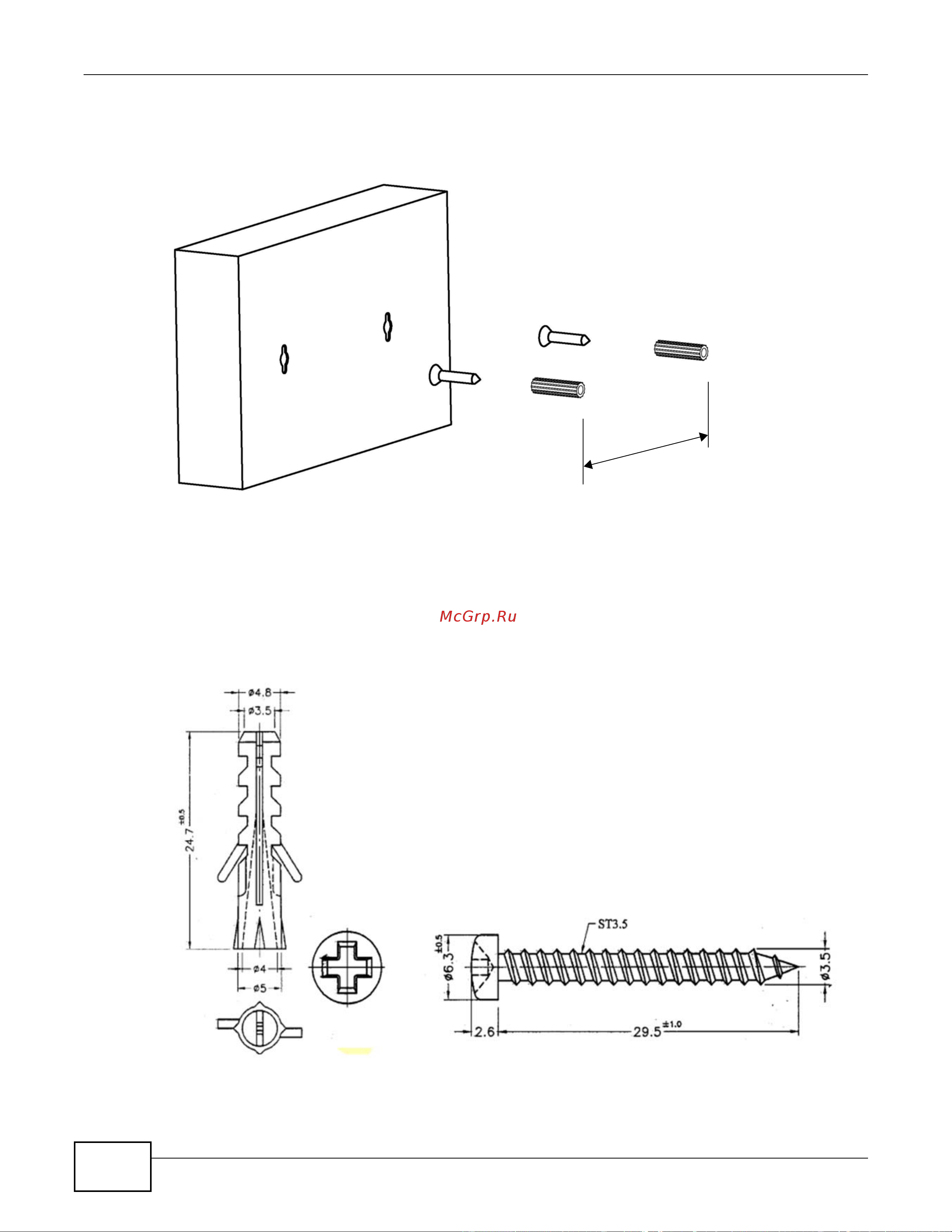

Figure 7 Wall-mounting Example

The Switch should be wall-mounted horizontally. The Switch's side

panels with ventilation slots should not be facing up or down as this

position is less safe.

The following are dimensions of a self-tapping screw and masonry plug used for wall mounting. All

measurements are in millimeters (mm).

Figure 8 Masonry Plug and 3.5 mm Self-Tapping Screw
