Chapter 3 Hardware Panels

GS2200-8/24 User’s Guide

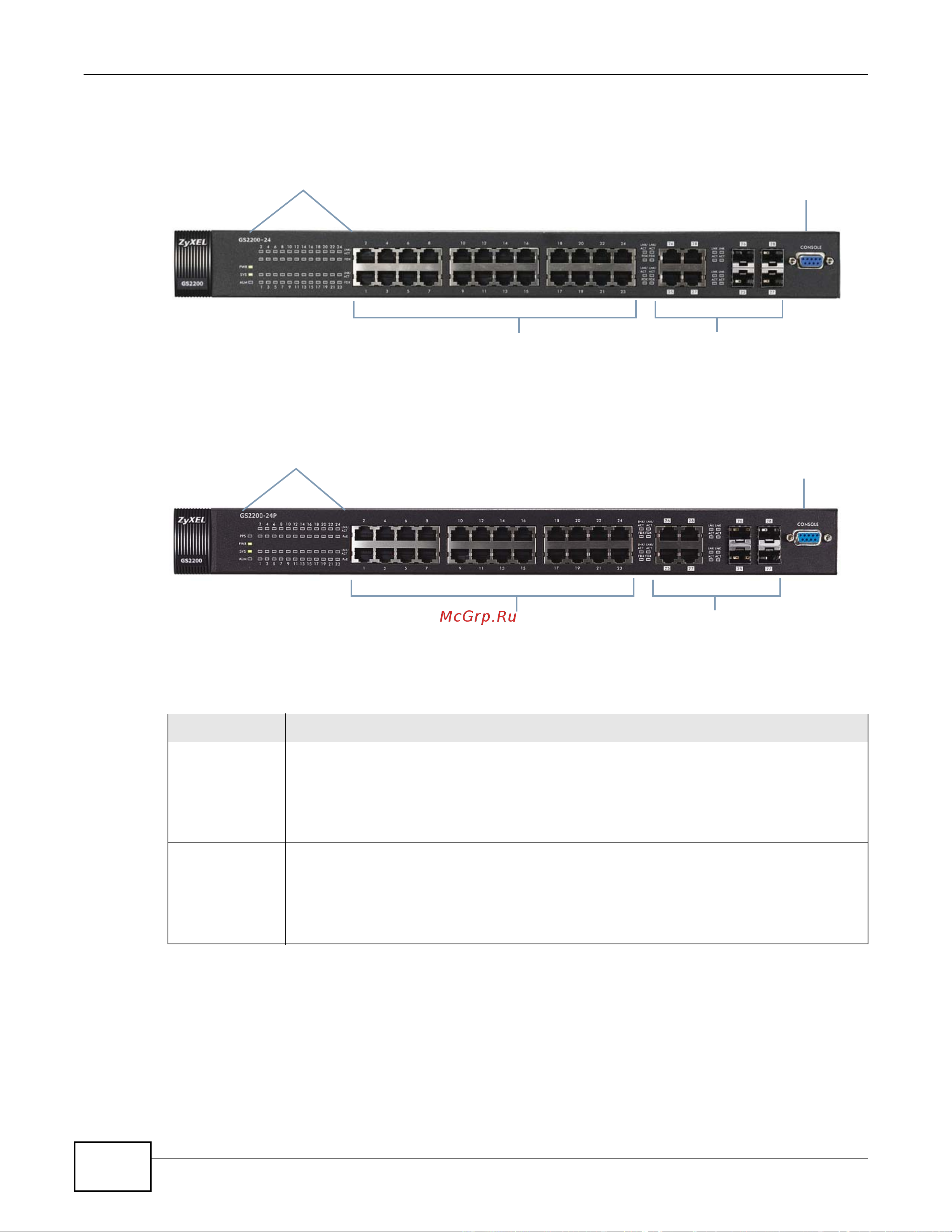

Figure 11 Front Panel (GS2200-24)

Figure 12 Front Panel (GS2200-24P)

The following table describes the port labels on the front panel.

Table 2 Front Panel Connections

LABEL DESCRIPTION

8 or 24 100/

1000 RJ-45

Ethernet Ports

(GS2200-8 or

GS2200-24

only)

Connect these ports to a computer, a hub, a wireless AP, an Ethernet switch or router.

8 or 24 100/

1000 BASE-T

PoE Ports

(GS2200-8HP or

GS2200-24P

only)

Connect these ports to a computer, a hub, a wireless AP, an Ethernet switch or router.

The GS2200-8HP supports the IEEE 802.3at High Power over Ethernet (PoE) standard and

the GS2200-24P supports the IEEE 802.3af PoE standard. Ports 1 to 4 on the GS2200-8HP

can supply power of up to 30W per Ethernet port. Ports 5 to 8 on the GS2200-8HP and

ports 1 to 24 on the GS2200-24P can supply power of up to 15.4W per Ethernet port.

Ethernet Ports

Dual Personality Interfaces

Console Port

LEDs

PoE Ethernet Ports

Dual Personality Interfaces

Console Port

LEDs
