Chapter 3 Hardware Panels

GS2200-8/24 User’s Guide

5 Connect the fiber optic cables to the transceiver.

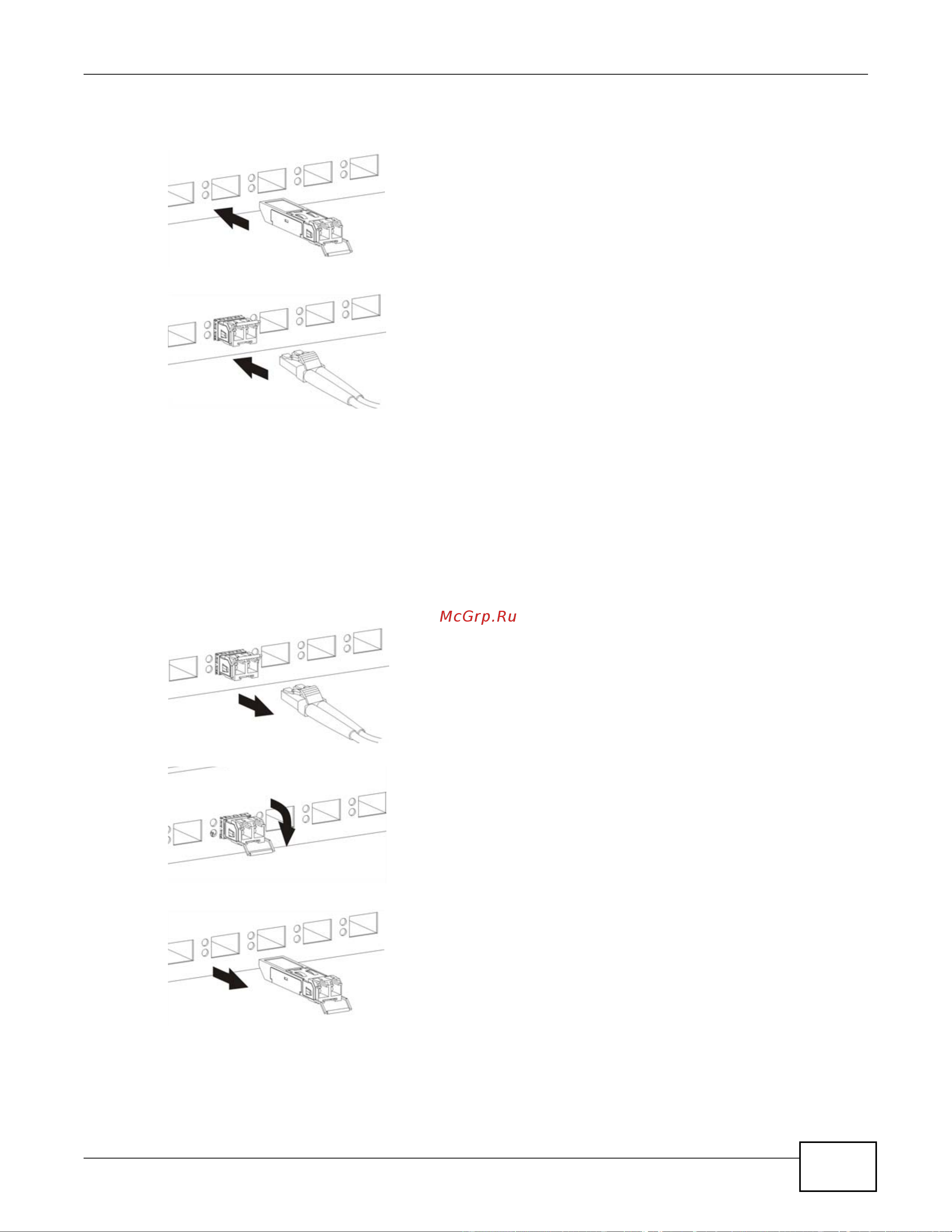

Figure 13 Transceiver Installation Example

Figure 14 Connecting the Fiber Optic Cables

3.2.3.2 Transceiver Removal

Use the following steps to remove a mini-GBIC transceiver (SFP module).

1 Remove the fiber optic cables from the transceiver.

2 Open the transceiver’s latch (latch styles vary).

3 Pull the transceiver out of the slot.

Figure 15 Removing the Fiber Optic Cables

Figure 16 Opening the Transceiver’s Latch Example

Figure 17 Transceiver Removal Example

3.2.4 Power Connector

Note: Make sure you are using the correct power source as shown on the panel.
