Chapter 9 VLAN

GS2200-8/24 User’s Guide

9.2.1 VLAN Details

Use this screen to view detailed port settings and status of the VLAN group. Click on an index

number in the VLAN Status screen to display VLAN details.

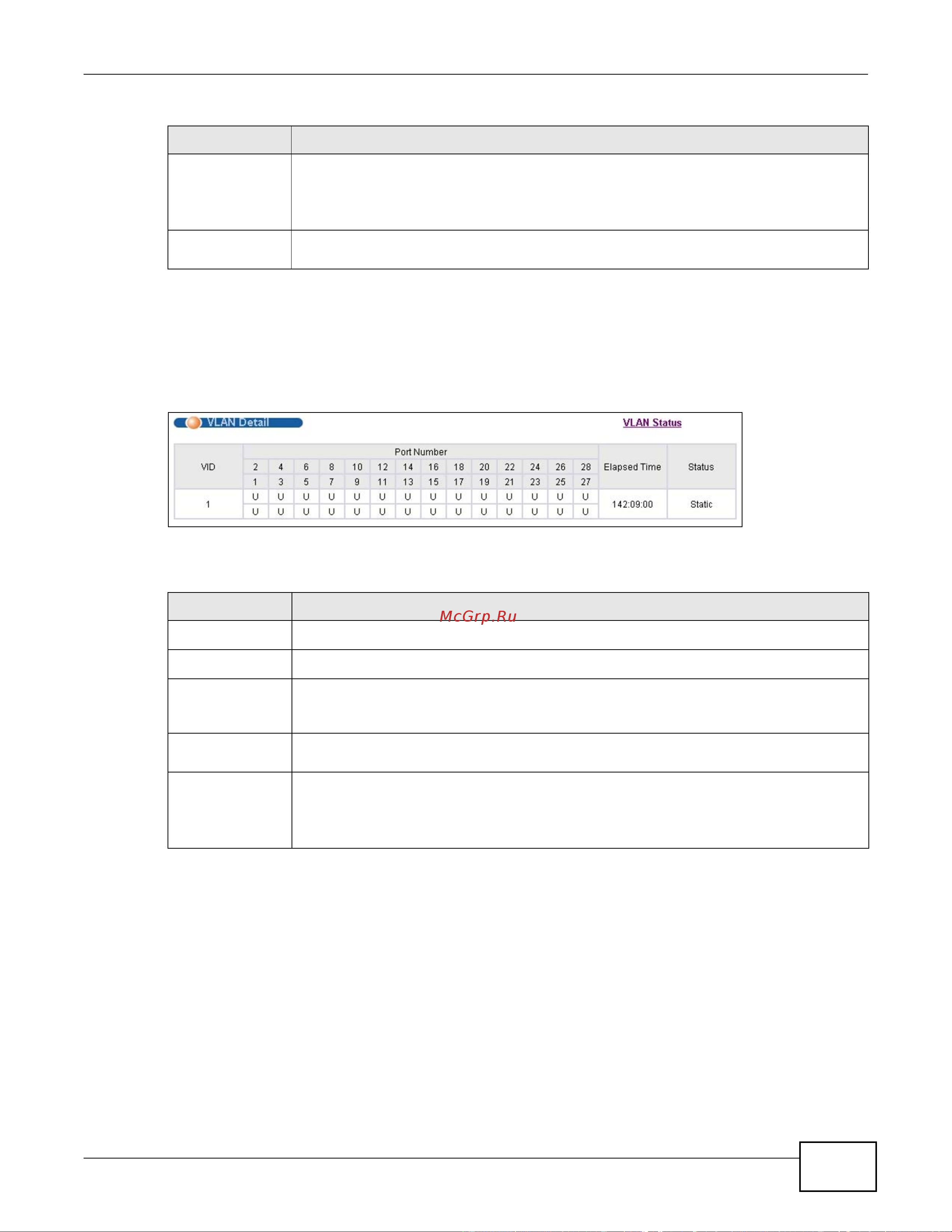

Figure 52 Advanced Application > VLAN > VLAN Detail

The following table describes the labels in this screen.

Status This field shows how this VLAN was added to the Switch.

dynamic: using GVRP

static: added as a permanent entry

Change Pages Click Previous or Next to show the previous/next screen if all status information cannot

be seen in one screen.

Table 17 Advanced Application > VLAN: VLAN Status (continued)

LABEL DESCRIPTION

Table 18 Advanced Application > VLAN > VLAN Detail

LABEL DESCRIPTION

VLAN Status Click this to go to the VLAN Status screen.

VID This is the VLAN identification number that was configured in the Static VLAN screen.

Port Number This column displays the ports that are participating in a VLAN. A tagged port is marked as

T, an untagged port is marked as U and ports not participating in a VLAN are marked as “–

“.

Elapsed Time This field shows how long it has been since a normal VLAN was registered or a static VLAN

was set up.

Status This field shows how this VLAN was added to the Switch.

dynamic: using GVRP

static: added as a permanent entry
