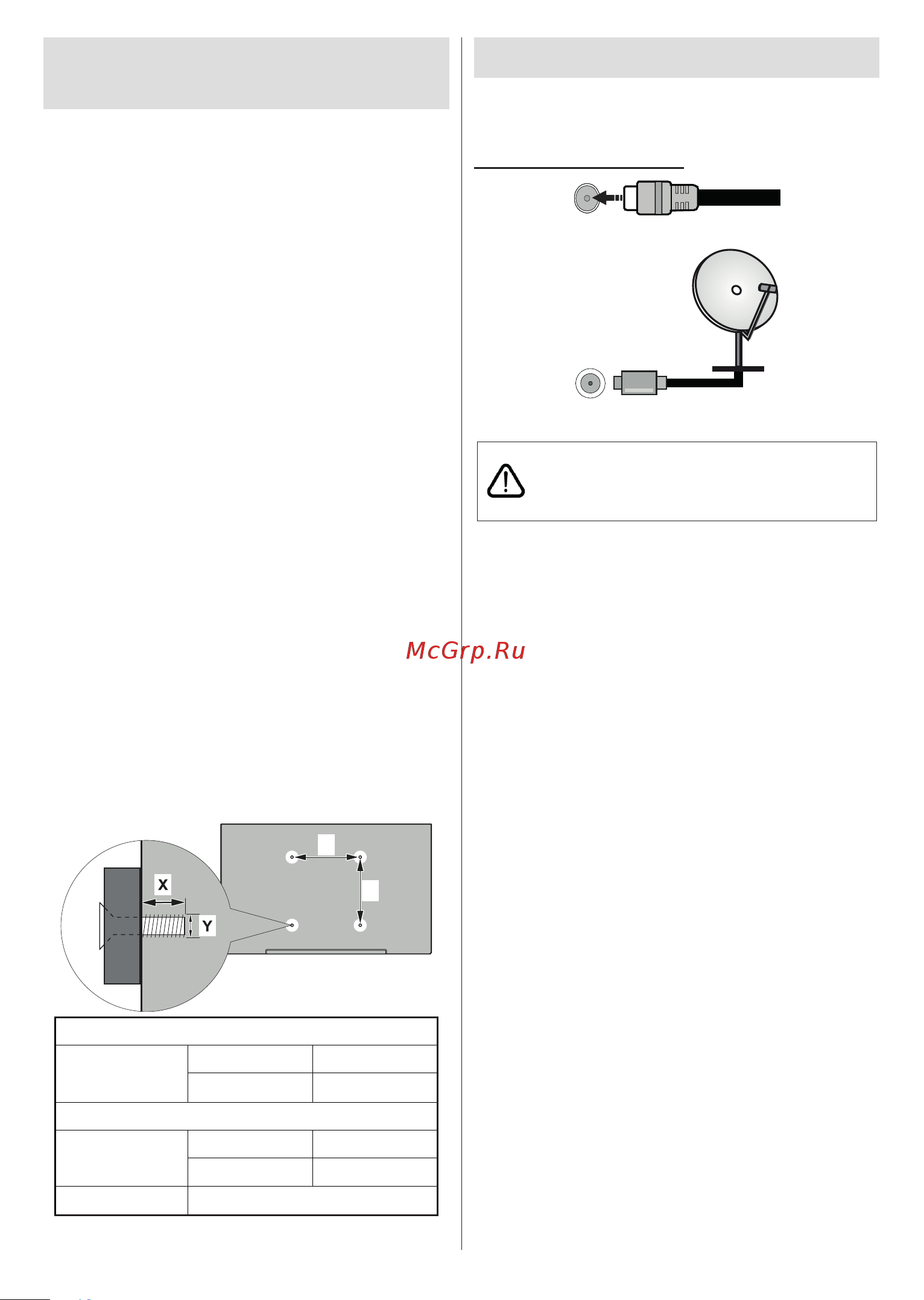

English - 5 -
Stand Installation &
Wall Mounting
Assembling / Removing the pedestal
Preparations
Take out the pedestal(s) and the TV from the packing
case and put the TV onto a work table with the screen
panel down on a clean and soft cloth (blanket, etc.).
• Use a at and rm table bigger than the TV.
• Do not hold the screen panel part.
• Make sure not to scratch or break the TV.
Assembling the pedestal
1. Place the pedestal(s) on the mounting pattern(s)
on the rear side of the TV.
2. Insert the screws provided and tighten them gently
until the pedestal(s) is/are properly tted.
Removing the pedestal from the TV
Be sure to remove the pedestal in the following way
when using the wall mount bracket or repacking the TV.
• Put the TV onto a work table with the screen panel
down on a clean and soft cloth. Leave the pedestal(s)
protruding over the edge of the surface.
• Unscrew the screws that x the pedestal(s).
• Remove the pedestal(s).
When using the wall mount bracket
Your TV is also prepared for a VESA-compliant wall
mount bracket. If it is not supplied with your TV, contact
your local dealer to purchase the recommended wall
mount bracket.
Holes and measurements for the wall mount bracket
installation;
W
H
VESA WALL MOUNT MEASUREMENTS
Hole Paern
Sizes (mm)
W H
200 200
Screw Sizes
Length (X)
min. (mm) 10
max. (mm) 13
Thread (Y) M6
Antenna Connection
Connect the aerial or cable TV plug to the aerial input
(ANT) socket or satellite plug to the satellite input (LNB)
socket located on the rear-left side of the TV.
Rear-left side of the TV
ANT
LNB
If you want to connect a device to the TV, make
sure that both the TV and the device are turned o󰀨
before making any connection. After the connection
is done, you can turn on the units and use them.
