Before using the machine, make sure that it is provided with the

identification Label. In case the Identification Label is missing,

do not use the machine and consult your dealer immediately.

The Identification Label with the technical specifications is fixed

to the motor.

Check that the mains voltage is the same as shown on the iden-

tification label.

4.2 - IDENTIFICATION LABEL

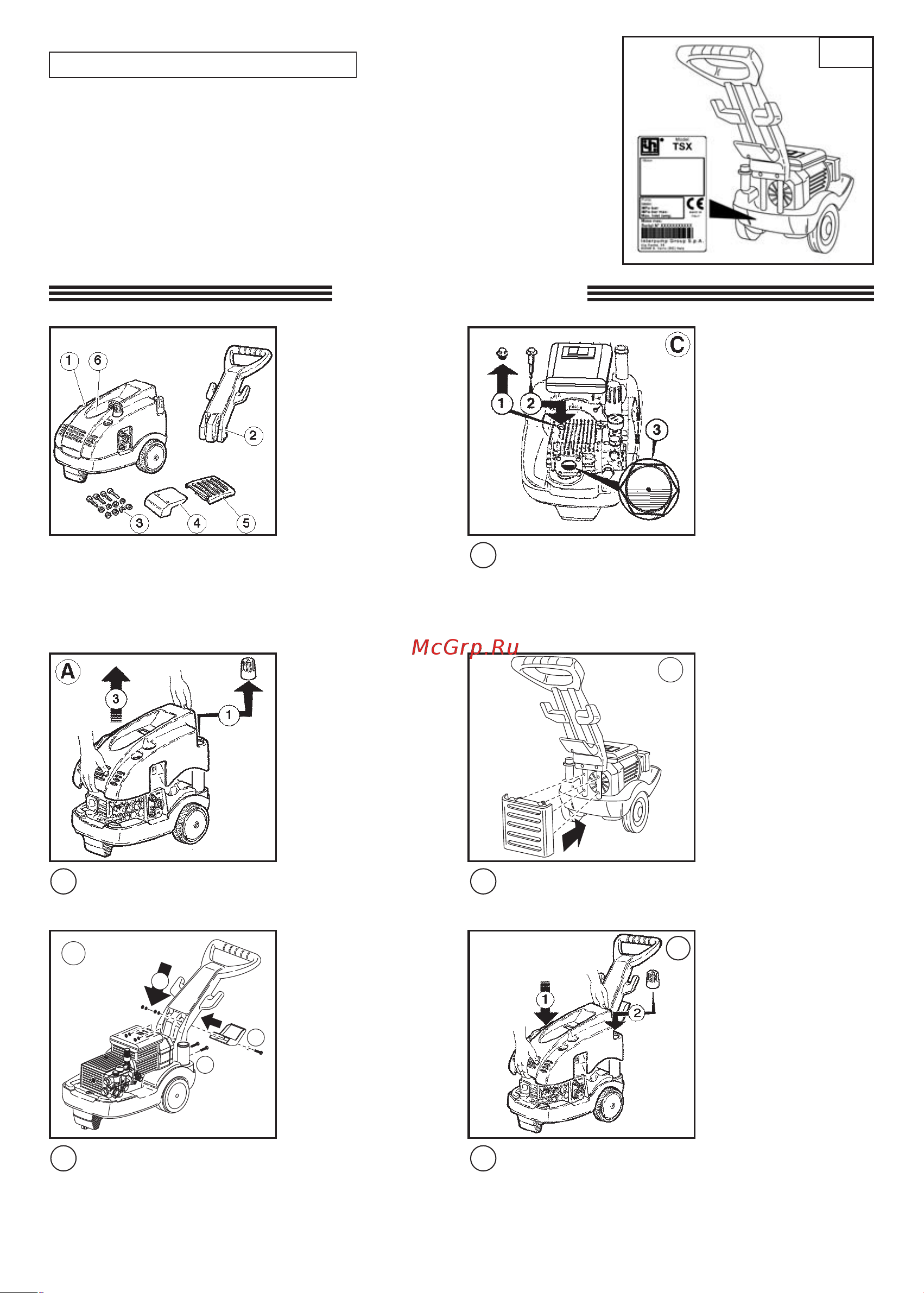

5 - INSTALLATION

 Body of the unit

 Handle

 Kit of screws + washers + nuts

 Hose hanger

 Fan grid

 Cover fixing knob

 Remove the cap of the chemical tank

 Unscrew cover fixing knob

 Remove the cover

Replace the red plug (Fig. 1) with the black and yellow

dipstick (Fig. 2) and check that the oil in the sigth

glass is at half-way level (Fig. 3).

Insert fan grid into its holes and push firmly until it is

fully locked.

 Replace the cover.

 Reinsert the chemical tank cap.

 Lock cover fixing knob.

 Insert the handle in its guides.

 Fix the handle and hose hanger by using screws,

nuts and washers supplied.

 Fix the bottom of the handle by using screws, nuts

and washers supplied.

TSX
