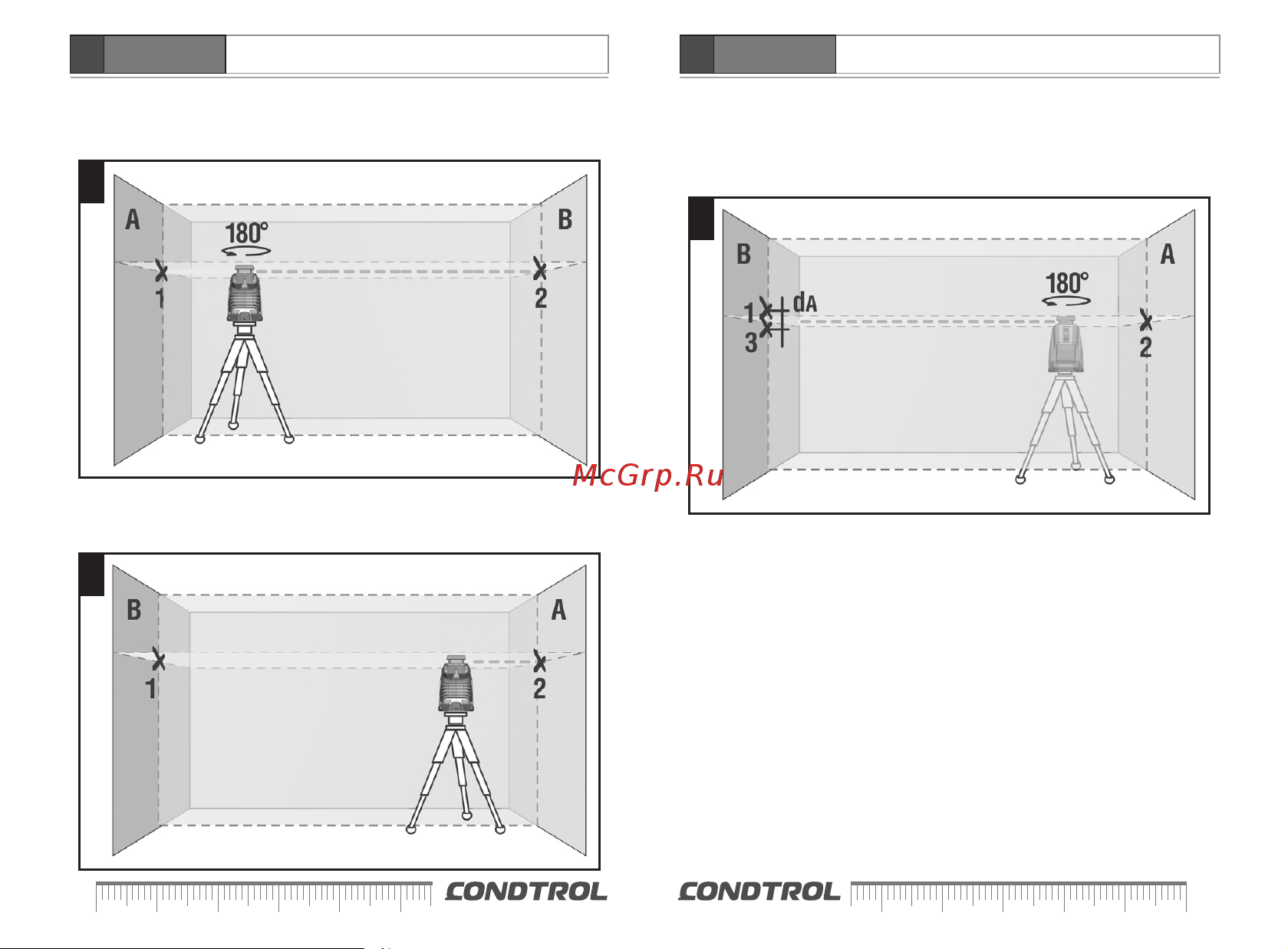

2. Turn the instrument by 180°, mark the point where laser lines

intersect each other on the opposite wall as В2. (see Fig. В).

3. Move the instrument to the opposite wall B and set it in such a way

so that the point where laser lines intersect each other would be on the

same level with point B2. (see Fig. C).

4. Turn the instrument by 180°, direct the instrument to the wall А in

such a way so that the vertical line would coincide with point А1. Mark

the point of intersecting laser line on the wall А a s A3. (see. Fig. D).

5. Measure distance d between points А1 and А3 (see. Fig. D). If this

distance exceeds 2 mm, please contact service center.
