FlexShaft™ Drain Cleaning Machines

999-995-158.09_REV. C

15

17. Pull any remaining cable assembly from

the line by hand and push back into the

drum. Prepare the machine for transport.

Draining the Drum

If needed, the drain cleaner can be turned to

allow any liquid in the housing to be drained

(see Figure 1 for drain hole location).

Transportation

Feed all of cable assembly into the drum

and secure the chain knocker in the hook.

Remove the drill from the drill shaft. Do not

leave the drill attached during transport to

prevent tipping and damage to the drain

cleaner. See Figure 1.

Storage

The Drain Cleaning Machine

must be kept dry and indoors or well cov-

ered if kept outdoors. Store the machine in

a locked area that is out of reach of children

and people unfamiliar with drain cleaning

machines. This machine can cause serious

injury in the hands of untrained users.

Maintenance

Instructions

WARNING

Drill should be removed from drain

cleaner before any maintenance is per-

formed.

Always wear safety glasses and other

appropriate protective equipment when

performing any maintenance.

Cleaning

It is good practice to use a towel to wipe dirt

and debris from the sheath as the cable as-

sembly is pulled from the drain and fed back

into the drum. This will help to keep the drum

clean and reduce the likelihood of the cable

assembly sticking in the drum. If needed,

cable assembly can be pulled from the ma-

chine and the housing opened for flushing/

cleaning.

Clean the machine as needed with hot soapy

water and/or mild disinfectants. Drain the ma-

chine as needed.

Lubrication

The FlexShaft Drain Cleaning Machines are

lubricated for life from the factory.

Cable Assembly Replacement

1. Pull entire cable assembly from housing.

2. Remove the f

asteners holding the hous-

ing closed (4 mm hex wrench) and open

the housing (Figure 14).

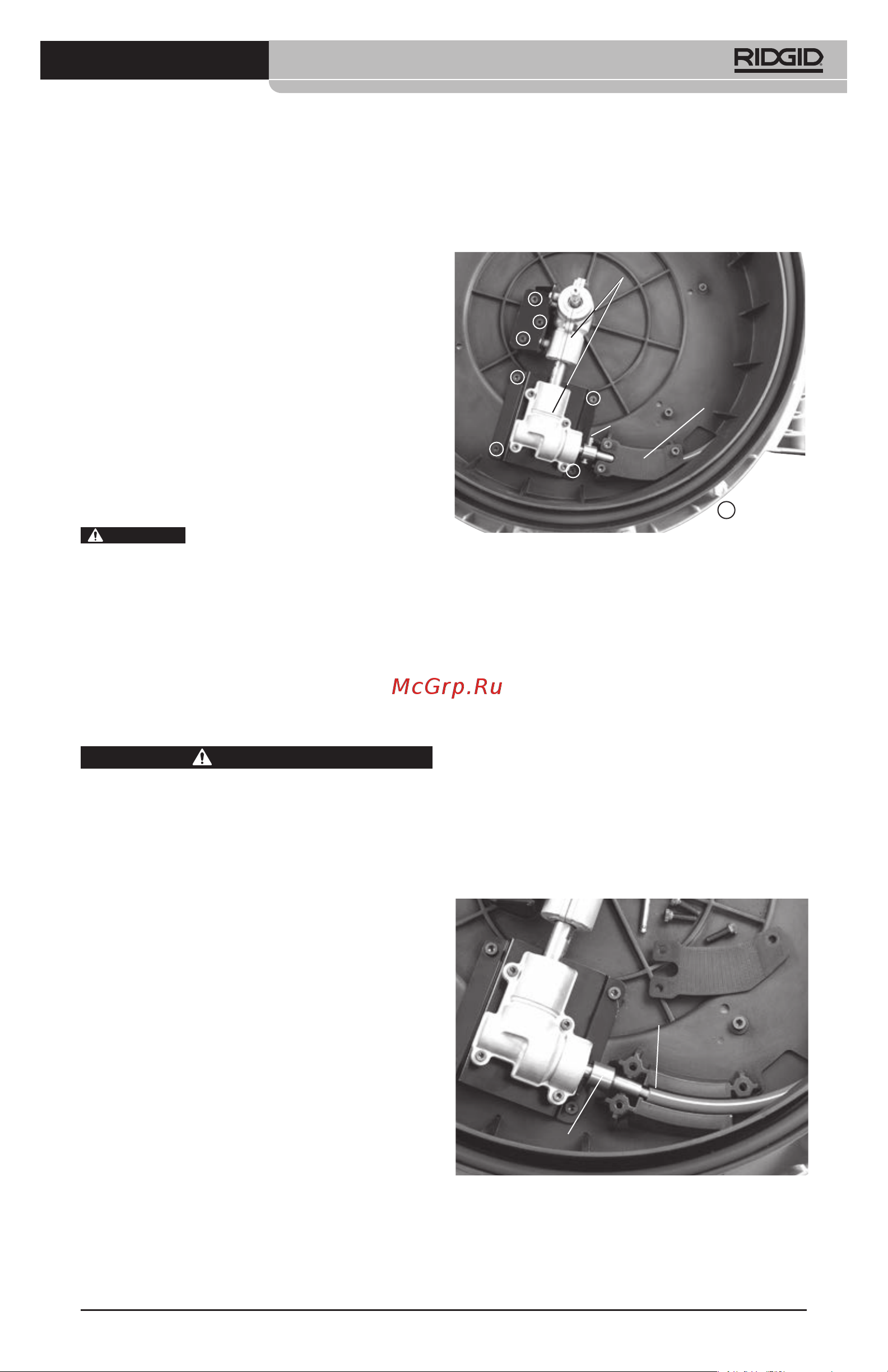

Figure 14 – Drain Cleaner Housing Opened

3. Remove retention plate fasteners and re-

tention plate (Figure 14).

4. Loosen gear box plate fasteners 3-4 turns

but do not remove. (4 mm hex wrench).

5. Remove the detent pin from the cable

coupling.

6. Remove the cable coupling from the gear

box shaft and remove the cable assembly.

Lift the gearboxes slightly to allow cable

coupling removal.

7. Reverse process to assemble, securely

attaching all fasteners. Ensure sheath is

tight to the stop in the drum cable slot to

minimize exposed cable (see Figure 15).

Figure 15 – Changing the Cable Assembly

Gear Boxes

Gear Box

Plate

Fastener

Detent Pin

Retention

Plate

Sheath Tight

To Stop

Cable Coupling

WARNING
