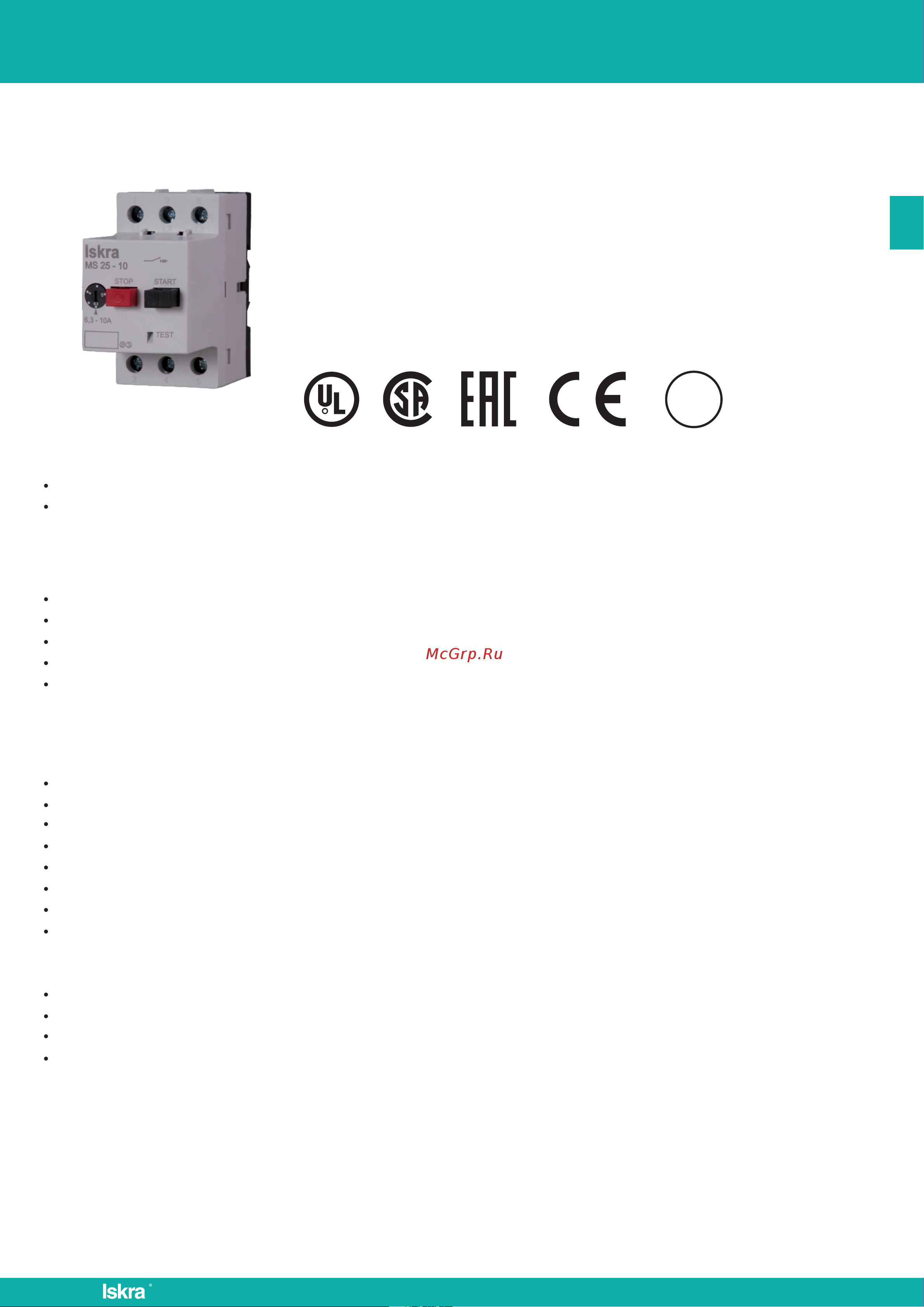

MOTOR PROTECTION CIRCUIT BREAKERS ARE SPECIAL TYPE OF CIRCUIT
BREAKERS, DESIGNED FOR PROTECTION OF WIDE RANGE OF SINGLE-PHASE
AND THREE-PHASE AC MOTORS AGAINST OVERLOAD AND SHORT CIRCUIT.
THEY ARE USED IN INDUSTRY, SMALL MACHINES, AGRICULTURAL MACHINES,
COMPRESSORS, ETC.
Motor protection circuit breakers MS25 up to 25 A .................................
Accessories ..................................................................................................
Accessories - general ..................................................................................
Example for Ordering data .......................................................................
Technical characteristics ...........................................................................
Dimensions .................................................................................................
page 2-9
page 2-11
page 2-14
page 2-10
page 2-20
page 2-26
FOR MOTOR PROTECTION:
PROTECTION OF OTHER LOADS:
OTHER BENEFITS:
All kind of AC induction motors
For three-phase motors up to 22 kW
Various low-inductive loads
Version with a thermal overload release for single-phase consumers MST20
Version with thermal and magnetic release for single-phase consumers MS20
Version for short-circuit protection MSZ25
Version for transformer protection MS25TR
Automatic switch-off at over-current with thermal or magnetic release
Control with under-voltage release or shunt release
An auxiliary switch for side mounting or flush mounting used for indication of the switching state
Indication of release with trip indicating auxiliary switch
ON/OFF buttons positions unequivocally indicates switching position of main contacts
Contact material :
- resistant to contact welding
- enables low contact heating
Isolating distance between contacts: 4.5 mm per contact place
Connection of a rigid or flexible conductor
Assemby to 35 mm wide mounting rail in compliance with EN 60715
Vertical or horizontal operational position
Manual control:
- START, STOP, push-buttons - Test of release function (TEST)
2
MOTOR PROTECTION CIRCUIT BREAKERS - MS25
ORDERING DATA
R
