8

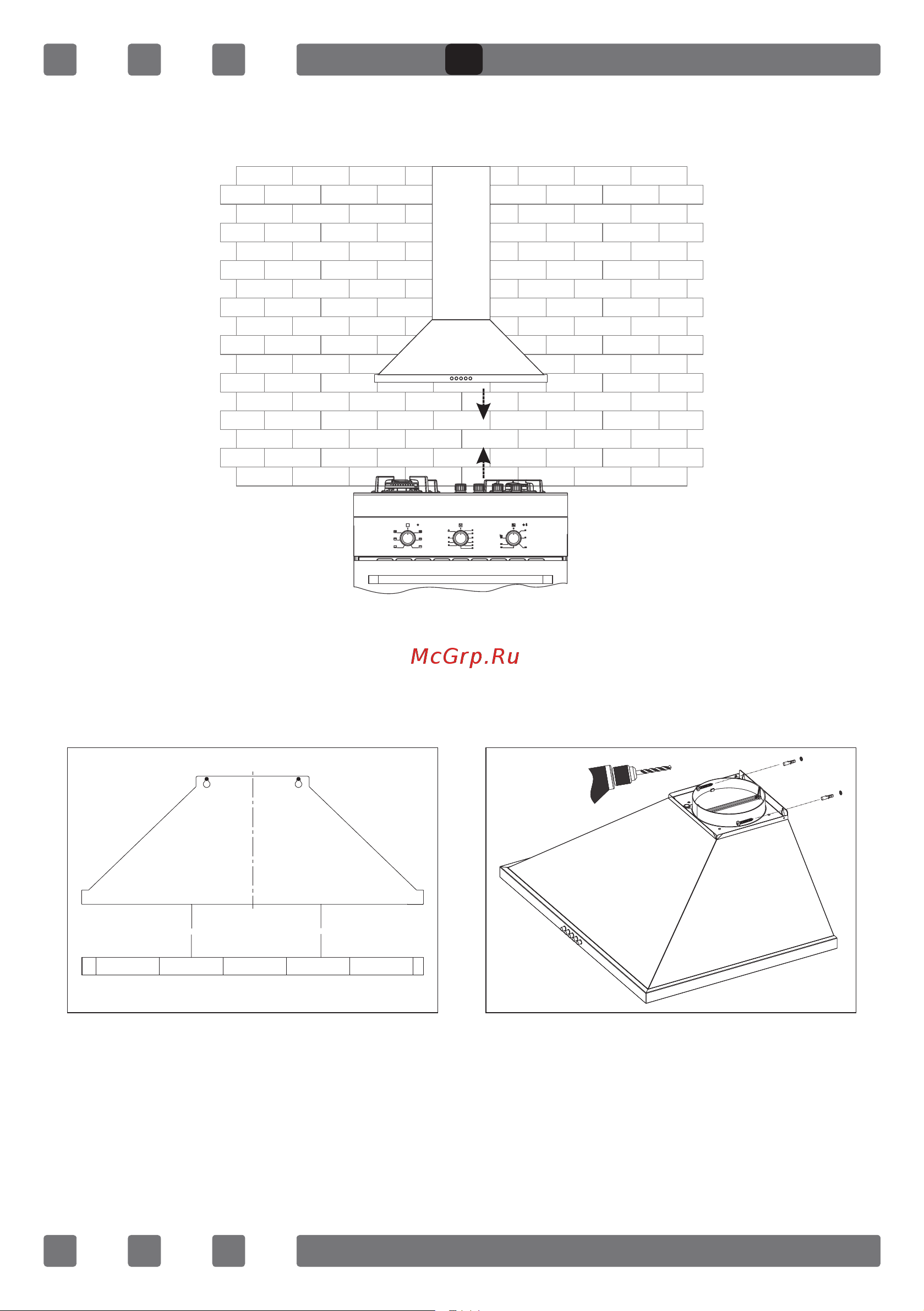

3. INSTALLATION OF CHIMNEY HOOD
3.1. Location Of The Chimney Hood
3.2. Mounting Chimney Hood On The Wall
2 drywall (8mm) anchors are nailed into the holes drilled according to
installation template (A,B). They are xed into the wall through 2 key
holes by screws as shown in Figure 1.
3.3. Mounting The Aluminum Pipe
Place the aluminum pipe on the plastic duct. Place the other end of the
pipe into the air outlet in the kitchen. (Figure 2)
Twists and bends on the aluminum pipe may cause minimizing the air suction
so avoid unnecessary bends and twists as much as possible. (Figure 3-4)
Place the inner duct and outer duct carefully on the product.
0
80
50
130
220
180
250
MAX
90
80
70
40
30
10
20
50
0
60
Min. 650 mm.
Figure 1
Installation Template
A B
GB
