Fix the inner duct to inner duct connection plate with 2 screws.

3.4. Installation Of Outer Duct

Put the outer duct on the chimney hood and x to it by 2 screws (Figure 5)

3.5. Installation of Inner Duct Mounting Bracket

2 xing holes are drilled on the wall with Ø 6 mm electric drill at a suitable

height and place to x the inner duct hanger plate onto the wall. 6mm

drywall anchors are nailed into those holes and inner duct mounting

brackrets are pinned down. (Figure 6)

At the last step of chimney hood installation, the inner duct is screwed

on the inner duct mounting brackets.

Note: Packaging may not include inner duct according to model.

4. FUNCTIONS OF THE CHIMNEY HOOD

4.1. Control Panel

Digital Control: Touch the symbols on

the keys. (On/Off function and timer

are on the same key; if pressed for 1

sec on-off function will operate.

If pressed for 3 sec. 15 minutes timer will operate.

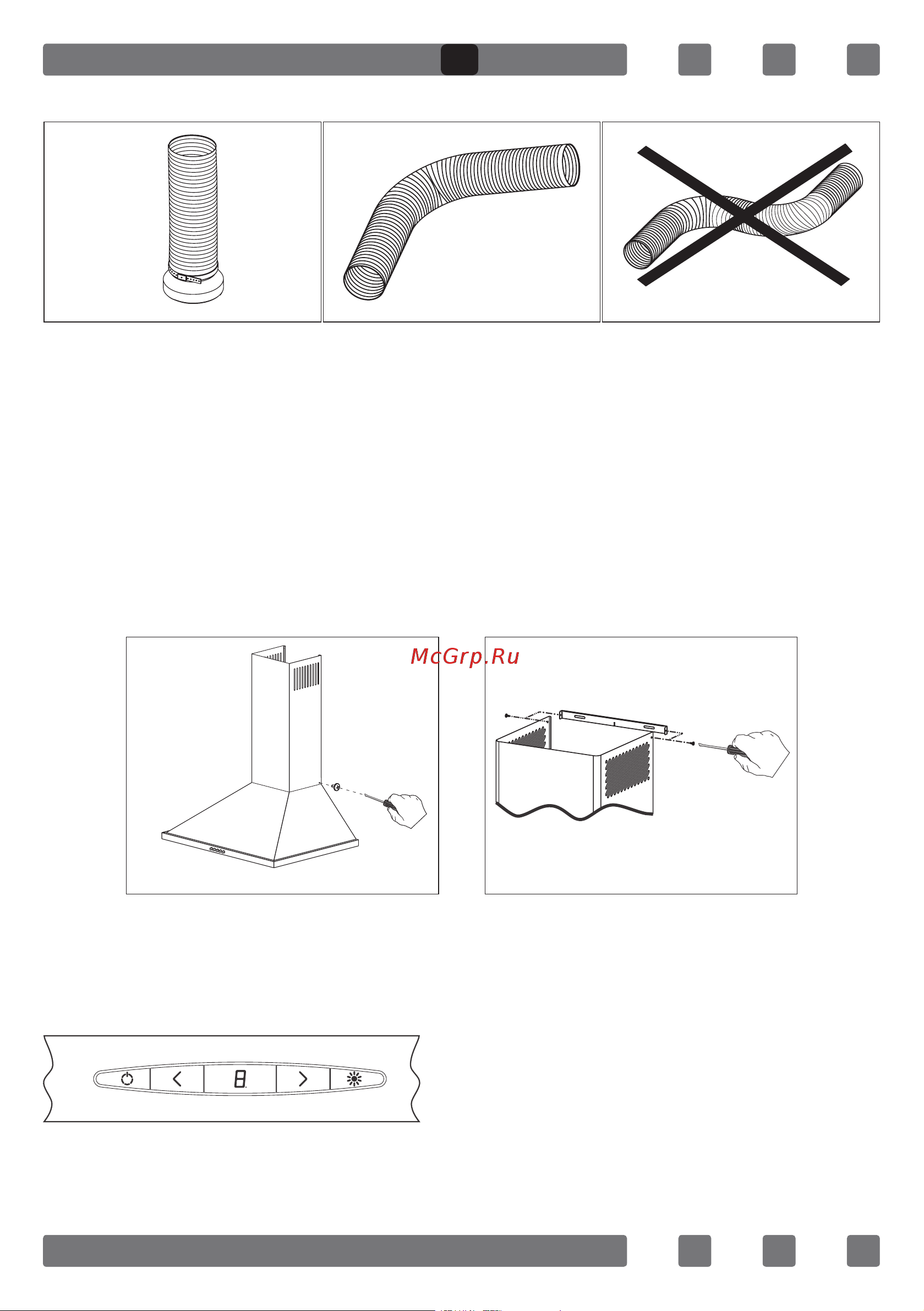

Figure 3 Figure 4

Figure 2

Figure 5 Figure 6
