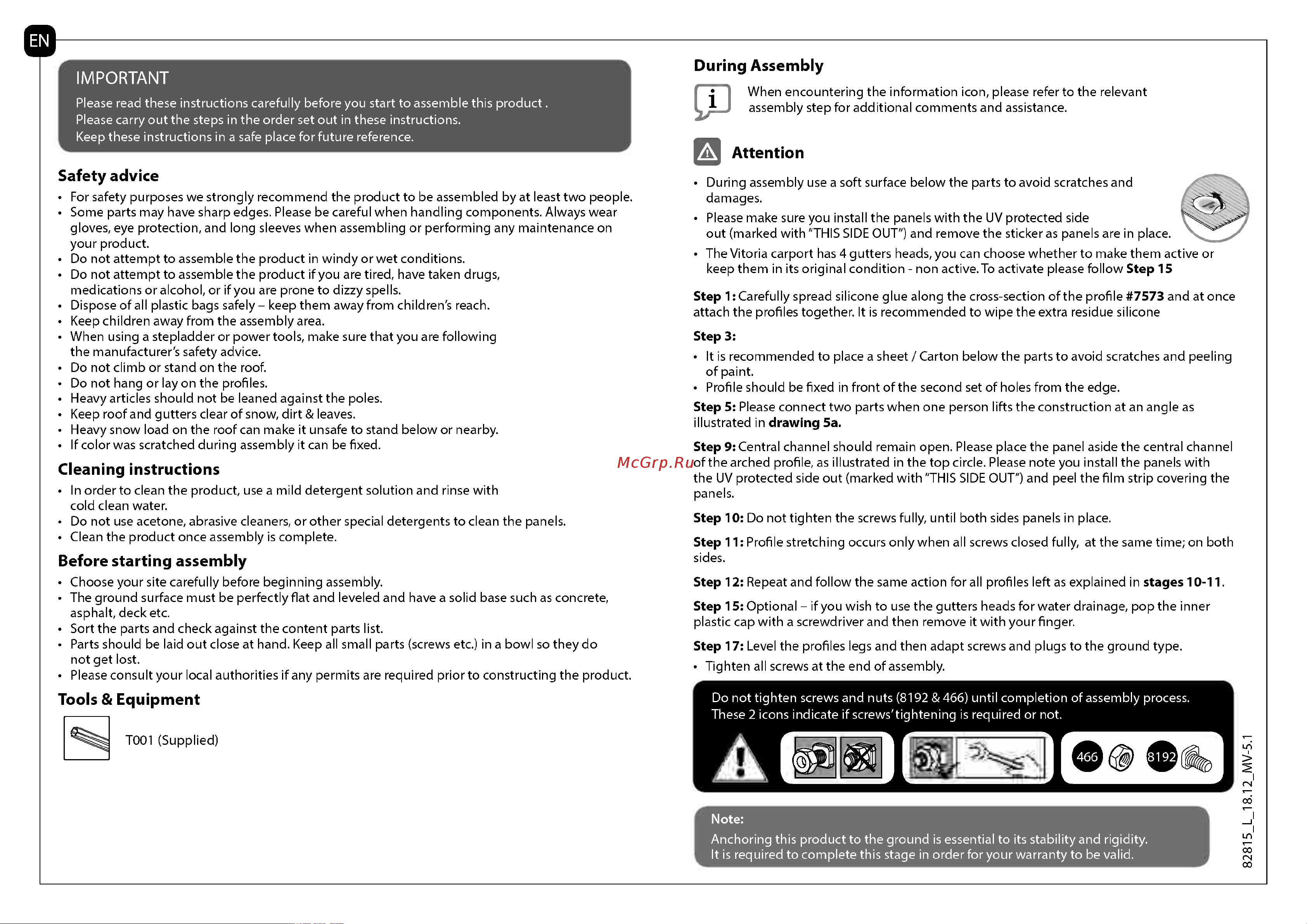

IMPORTANT

Please read these instructions carefully before you start to assemble this product .

Please carry out the steps in the order set out in these instructions.

Keep these instructions in a safe place for future reference.

Safety advice

For safety purposes we strongly recommend the product to be assembled by at least two people.

Some parts may have sharp edges. Please be careful when handling components. Always wear

gloves, eye protection, and long sleeves when assembling or performing any maintenance on

your product.

Do not attempt to assemble the product in windy or wet conditions.

Do not attempt to assemble the product if you are tired, have taken drugs,

medications or alcohol, or if you are prone to dizzy spells.

Dispose of all plastic bags safely - keep them away from children's reach.

Keep children away from the assembly area.

When using a stepladder or power tools, make sure that you are following

the manufacturer's safety advice.

Do not climb or stand on the roof.

Do not hang or lay on the profiles.

Heavy articles should not be leaned against the poles.

Keep roof and gutters clear of snow, dirt & leaves.

Heavy snow load on the roof can make it unsafe to stand below or nearby.

If color was scratched during assembly it can be fixed.

Cleaning instructions

In order to clean the product, use a mild detergent solution and rinse with

cold clean water.

Do not use acetone, abrasive cleaners, or other special detergents to clean the panels.

Clean the product once assembly is complete.

Before starting assembly

Choose your site carefully before beginning assembly.

The ground surface must be perfectly flat and leveled and have a solid base such as concrete,

asphalt, deck etc.

Sort the parts and check against the content parts list.

Parts should be laid out close at hand. Keep all small parts (screws etc.) in a bowl so they do

not get lost.

Please consult your local authorities if any permits are required prior to constructing the product.

Tools & Equipment

T001 (Supplied)

During Assembly

cWhen encountering the information icon, please refer to the relevant

assembly step for additional comments and assistance.

Attention

During assembly use a soft surface below the parts to avoid scratches and

damages.

Please make sure you install the panels with the UV protected side

out (marked with "THIS SIDE OUT") and remove the sticker as panels are in place.

The Vitoria carport has 4 gutters heads, you can choose whether to make them active or

keep them in its original condition - non active. To activate please follow Step 15

Step 1: Carefully spread silicone glue along the cross-section of the profile #7573 and at once

attach the profiles together. It is recommended to wipe the extra residue silicone

Step 3:

It is recommended to place a sheet / Carton below the parts to avoid scratches and peeling

of paint.

Profile should be fixed in front of the second set of holes from the edge.

Step 5: Please connect two parts when one person lifts the construction at an angle as

illustrated in drawing 5a.

Step 9: Central channel should remain open. Please place the panel aside the central channel

of the arched profile, as illustrated in the top circle. Please note you install the panels with

the UV protected side out (marked with "THIS SIDE OUT") and peel the film strip covering the

panels.

Step 10: Do not tighten the screws fully, until both sides panels in place.

Step 11: Profile stretching occurs only when all screws closed fully, at the same time; on both

sides.

Step 12: Repeat and follow the same action for all profiles left as explained in stages 10-11.

Step 15: Optional - if you wish to use the gutters heads for water drainage, pop the inner

plastic cap with a screwdriver and then remove it with your finger.

Step 17: Level the profiles legs and then adapt screws and plugs to the ground type.

Tighten all screws at the end of assembly.

Do not tighten screws and nuts (8192 & 466) until completion of assembly process.

These 2 icons indicate if screws'tightening is required or not.

Note:

Anchoring this product to the ground is essential to its stability and rigidity.

It is required to complete this stage in order for your warranty to be valid.
