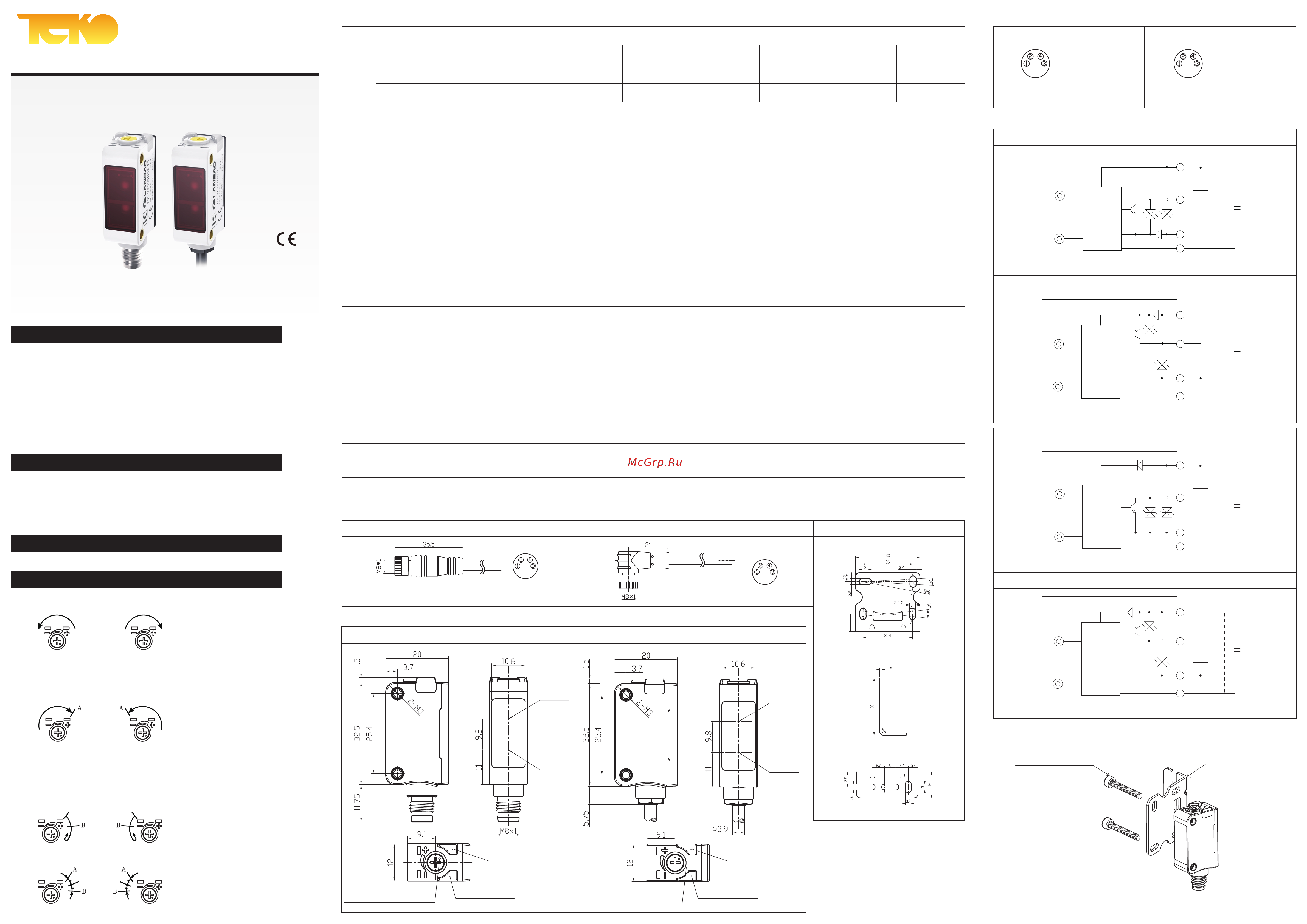

PSE-YC series
Photoelectric sensor
Operation manual
Precautions
Safety Warning
Scrap Treatment
Distance Adjustment
Please make sure that the power supply voltage is within the rated value beforepower-
ing on
Do not use in an environment with flammable, explosive or corrosive gases
Do not use in oil or chemical environments
Do not use in a high humidity environment
Do not use in direct sunlight
Do not use in other environmental conditions that exceed the rated value
Do not disassemble, repair or modify this product without authorization
When the product is scrapped, please dispose of it as industrial waste
The time from powering-on to normal detection of the sensor is 100 ms, please
ensure that the sensor is used after 100 ms of powering-on
When using different power sources for the sensor and load, be sure to turn on
the power of the sensor first
When the sensor is not used, it is recommended to cut off the power of the load first
and then turn off the power of the sensor
Avoid using thinner, alcohol or other organic solvents when cleaning
Mounting
Mounting bracket
(accessory
）
ZJP-8
Screw(M3×12mm)
Dimensions
Background Suppression-Connector
Receiver
Emitter
Action indicator
(yellow)
Stable indicator
(green)
Sensitivity adjusting knob
Receiver
Emitter
Action indicator
(yellow)
Stable indicator
(green)
Sensitivity adjusting knob
Background Suppression-Cable
Wiring diagram
Accessory Dimensions(Sold Separately)
The following accessories need to be ordered additionally except for the ZJP-8 type mounting bracket.
Mounting Bracket: ZJP-8 (accessory)M8 Connector: CS S48L-3-2 M8 Connector: CS S49L-3-2
Note: The standard detection target is a white card of 20cm*20cm(90% reflectivity)
BN
BK
BU
WH
Load
Output
Output indication
(Yellow)
Stability indication
(Green)
+
-
FGS Mode
BGS Mode
10...30V
4
3
2
1
BN
BK
BU
WH
Load
Output
Output indication
(Yellow)
Stability indication
(Green)
+
-
FGS Mode
BGS Mode
10...30V
3
2
4
1
Photoelectric
sensor main
circuit
Terminal Wiring Diagram
BN: +
BU: -
BK: OUT
WH: -FGS / +BGS
1: +
3: -
4: OUT
2: -FGS / +BGS
PSE-YC5
BN ： +
BU ： -
BK ： OUT
WH ： -NC/+NO
PSE-YC25, YC35
PSE-YC5(NPN Output)
PSE-YC5(PNP Output)
PSE-YC25, YC35(NPN Output)
PSE-YC25, YC35(PNP Output)
BN
BK
BU
WH
Output indication
(Yellow)
Stability indication
(Green)
Photoelectric
sensor main
1
4
3
2
+
-
10...30V
Load
Output
Normally
open
Normally
closed
BN
BK
BU
WH
Output indication
(Yellow)
Stability indication
(Green)
Photoelectric
sensor main
+
-
1
4
3
2
10...30V
Load
Output
Normally
open
Normally
closed
Technical specifications
Detection type
Format
Cable
Connector
Background suppression
Red light(630nm)
5-turn knob adjustment
Anti-ambient light
Ambient temperature
Protection degree
Storage temperature
Certification
Lens
Weight
Accessories
Material
Cable: about 50g; Connector: about 10g
Screw
×2, Mounting bracket ZJP-8, Operation manual
-25℃...55℃
-25℃...70℃
IP67
CE
PMMA
PC+ABS
BGS/FGS Switch
NO/NC Switch
Sensing distance
Light source
Distance adjustment
Supply voltage
Consumption current
Load current
Voltage drop
Circuit protection
Return difference
Light spot size
≤20mA
≤100mA
≤2V
0,2...5cm
0,5...25cm 0,5...35cm
＜
2%
＜
10%
≤0,5ms ≤1ms
10...30 V DC
Short circuit, Reverse polarity, Overload, Zener protection
⌀ 2 mm (5 cm) ⌀ 6 mm (25 cm)
The white wire connected to the positive electrode or floating is BGS, and the
white wire connected to the negative electrode is FGS
The white wire connected to the positive electrode or floating is NO, and
the white wire connected to the negative electrode is NC
PSE-YC5DNOR PSE-YC5DNCR
PSE-YC5DNOR-E3 PSE-YC5DNCR-E3
PSE-YC5DPOR PSE-YC5DPCR
PSE-YC5DPOR-E3 PSE-YC5DPCR-E3
NPN NO NPN NC PNP NO NPN PNP NPN PNPPNP NC
PSE-YC25DNBR
PSE-YC25DNBR-E3
PSE-YC25DPBR
PSE-YC25DPBR-E3
PSE-YC35DNBR
PSE-YC35DNBR-E3
PSE-YC35DPBR
PSE-YC35DPBR-E3
/
/
Sunlight interference
≤
10,000 lux;Anti-incandescent light interference
≤
3,000 lux
Green: Power indicator; Yellow: Output,overload or short circuit
Response time
Indicator
Note: When installing this product, please keep the tightening torque below 0,5 N·m
Do not subject the sensor to severe external forces (such as hammer hits, etc.)
during installation, so as not to damage the sensor performance
BGS FGS
BGS FGS
BGS FGS
BGS FGS
2.BGS function: In the object present condition, turn the sensitivity adjuster and
confirm the point A where the sensor enters the sensing state.
FGS function: In sensing back-ground condition, turn the sensitivity adjuster
and confirm the point A where the sensor enters the non-sensing state.
4.The optimum positon to stably detect objects is the center point between A and B.
3.BGS function: After removing the sensing object, turn the sensitivity adjuster and
confirm the point B where the sensor enters the non-sensing state.
FGS function: In the object present condition, turn the sensitivity adjuster and
confirm the point B where the sensor enters the sensing state.
(If the sensor does not enter the“Light”state operation even when the sestivity
adjuster is turned fully clockwise, the postion is point B.)
1.Turn the sensitivity adjuster fully.
BGS function: Counterclockwise FGS function: Clockwise
1: +
3: -
4: OUT
2: -NC / +NO
Photoelectric
sensor main
circuit
Photoelectric
sensor main
circuit
Photoelectric
sensor main
circuit
