4

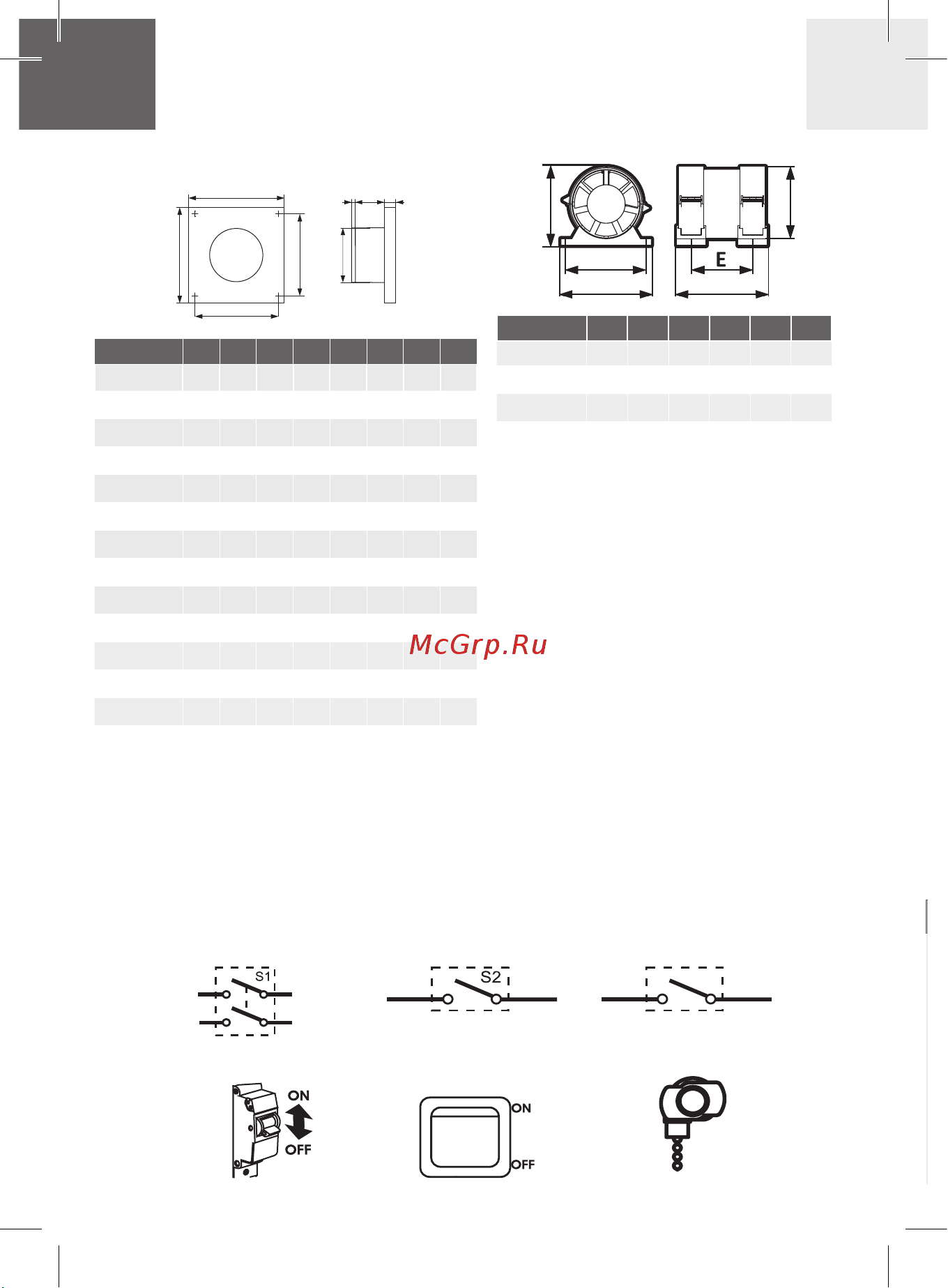

AURA / PARUS / SILENT / SLIM / RIO /
STANDARD
F*
E
C
Ød
X
A
Y
B
Model
d A B X Y E F* С
AURA 4
100 155 155 135 135 70 7 24
AURA 5
125 175 175 155 155 78 8,5 24
PARUS 4
98 175 220 135 135 74 6 44
PARUS 5
123 190 237 160 160 79 6 52
RIO 4
98 170 170 135 135 74 6 38
RIO 5
123 200 200 160 160 79 6 38
SILENT 4
100 155 155 135 135 70 7 31
SILENT 5
125 175 175 155 155 78 8,5 32
SLIM 4
100 160 160 140 140 76 7 9
SLIM 5
125 180 180 160 160 82 8,5 9
SLIM 6
150 205 205 187 187 86 10 9
STANDARD 4
100 180 250 160 230 58,5 7 24
STANDARD 5
125 180 250 160 230 58,5 8,5 24
*- This size is present only in fans with “back flow valve” option
Installation and set up procedures
DICITI fans are mounted both with airvents and independently.
DiCiTi fans are intended for wall and ceiling mounting. Models of DiCiTi fans with an ”02” option are applied to wall mounting.
Mounting of DiCiTi fans is carried out as with ventilating air ducts and independently on a plain vertical or horizontal surface,
for models with an “02” option on a plain vertical surface of sucient rigidness for installation of a product by means of
screws. Tolerance range of a mounting surface in vertical and horizontal directions is ±0,5 mm.
S3
Legend of circuit breaker S1
on the scheme
Сircuit breaker S1
External switch S2
Built-in switch S3 (pull chain
switch)
Legend of external switch
S2 on the scheme
Legend of built-in switch S3 on
the scheme
PRO
B
A
F
D
C
Model
A B C D E F
PRO 4 122 138 119 103,6 94 139
PRO 5 147 163 144 128,6 101 146
PRO 6 182 198 179 163,6 104 154
Pic.1 AURA
/SILENT
Pic.2 SLIM Pic.3 SLIM -02
