PARUS/RIO (Pic. 6-7)

• remove the decorative front panel and terminal block cover

• hold the power wire through the cable hole 1 in the case

• strip the insulation on 5-7 mm from the wire end

• insert wires into terminal box X and press them by tap screw

• ﬁx the wires by means of cable clamp 2

•install the cover of terminal block and front panel by easy pressure

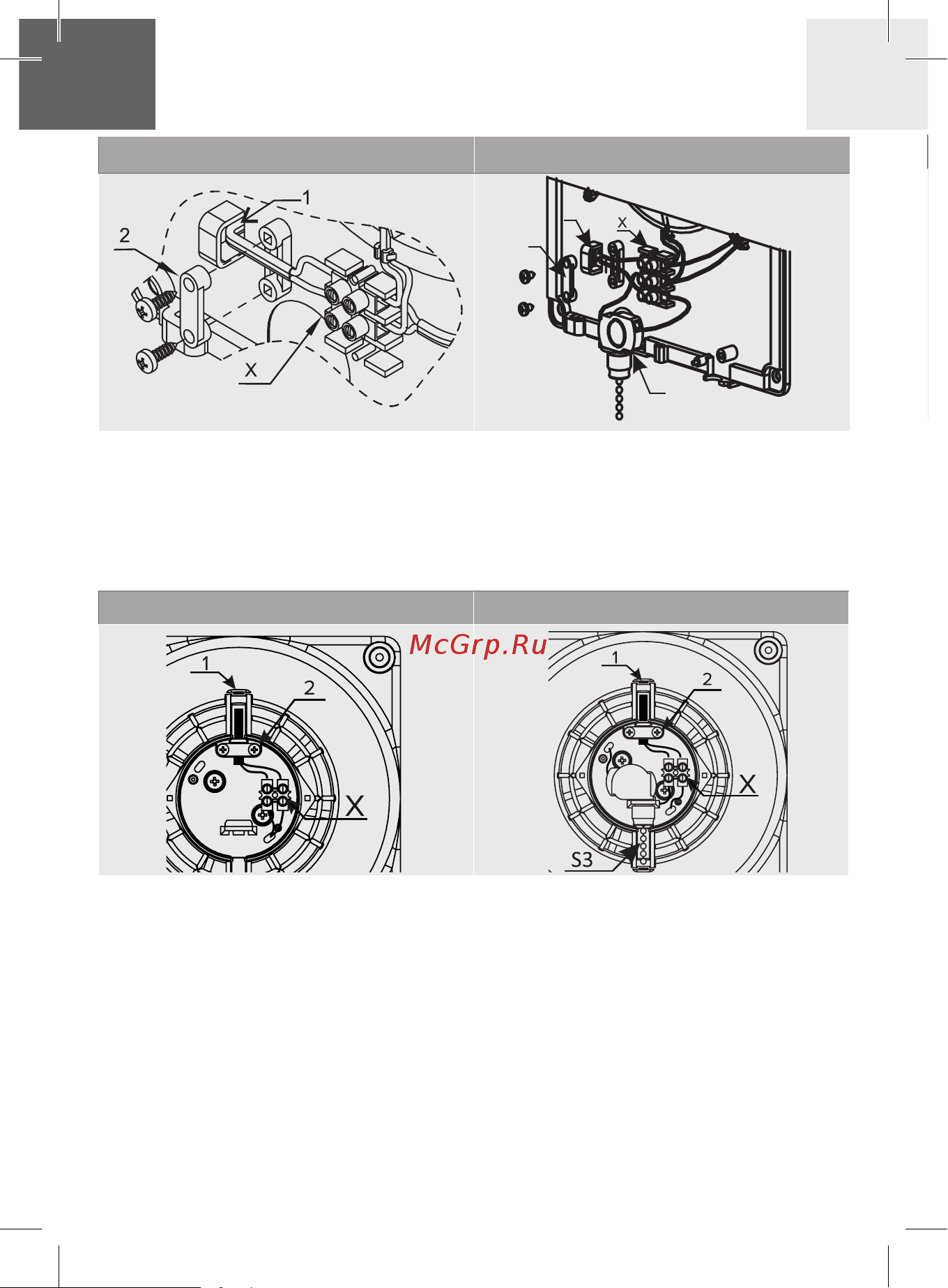

Pic.6 PARUS / RIO Pic.7 PARUS-02 / RIO-02

Pic.8 PRO

Pic.

9 PRO

PRO (Pic. 8, 9)

• remove the terminal block cover;

• hold the power wire through the cable hole 1 in the case

• strip the insulation on 5-7 mm from the wire end insert wires into

terminal box X and press them by tap screw;

• ﬁx the wires by means of cable clamp 2;

•install the cover of terminal block.

•Install brackets of holders;

•Install ﬁrst couple of covers in brackets ;

•Install the fan ;

•Butt airvents from two sides to the fan case

•Fix the fan case with airvents by means of another couple of covers.

Pic.

4 STANDARD

Pic.

5 STANDARD-02
