2. Descriptionе

FUBAG aerographs are used to apply the coating by paint or lacquer spraying. These aerographs

can be used only if they are connected to the compressor or the similar compressed air supply. The

use for other purposes can cause failures of the appliance, and besides can be a hazard to other

people. Do not introduce any design changes into the product and do not use it for other purposes

other than that intended. Strictly follow the safety rules.

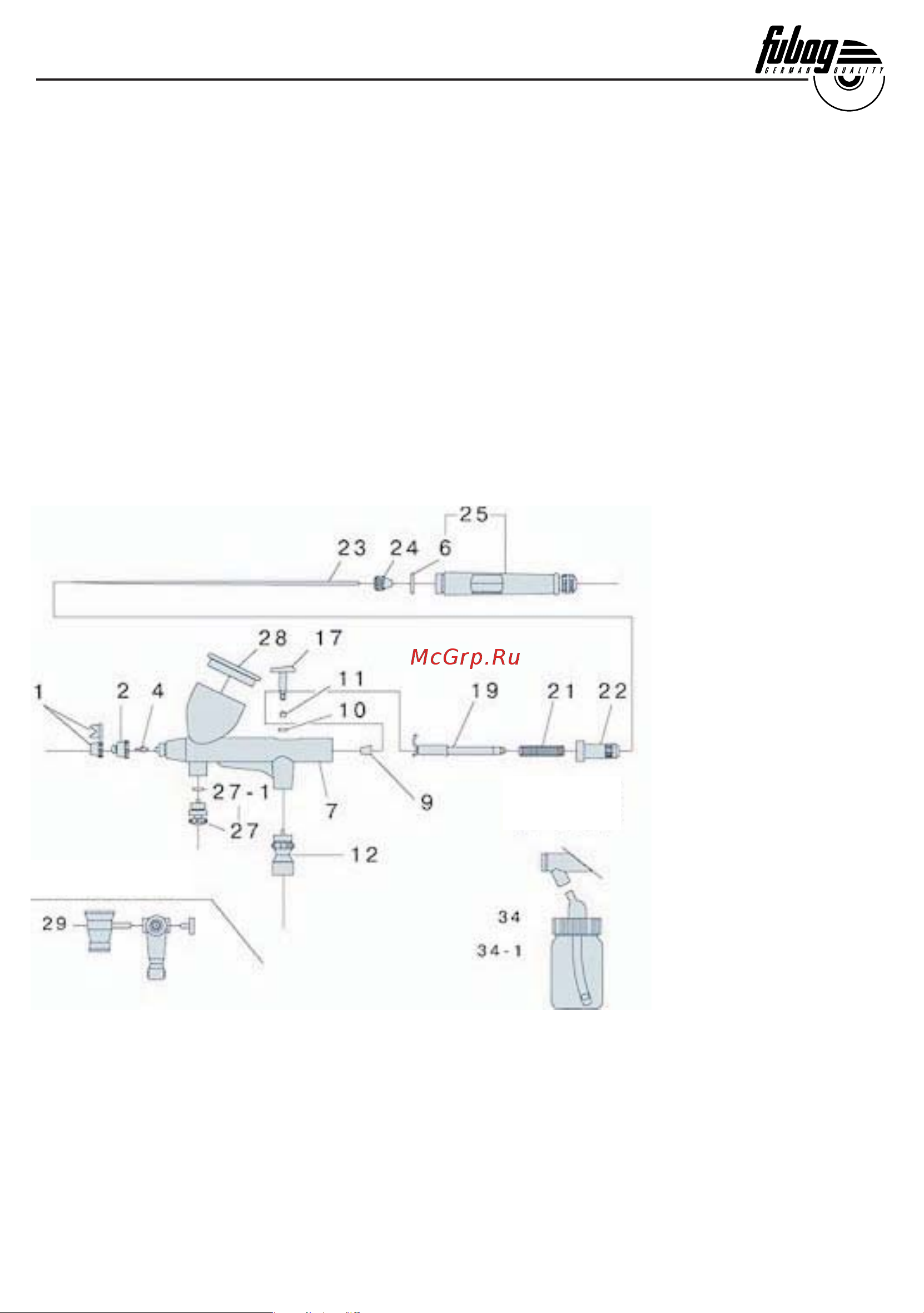

1. Needle head

2. Nozzle head

4. Nozzle

7. Housing

9. Needle guide

10. Piston

11. Piston ring

12. Air feed presetting

valve

17. Push button

19. Auxiliary guide for

needle clamping

22. Spring guide

21. Needle spring

23. Needle

24. Needle holder

25. Needle cap with

material supply control

27. Air feed regulator

28. Tank cover

29. Side tank 1.5 mm

32. Nozzle key

33. Material supply

control

34. Glass reservoir,

lower tank
