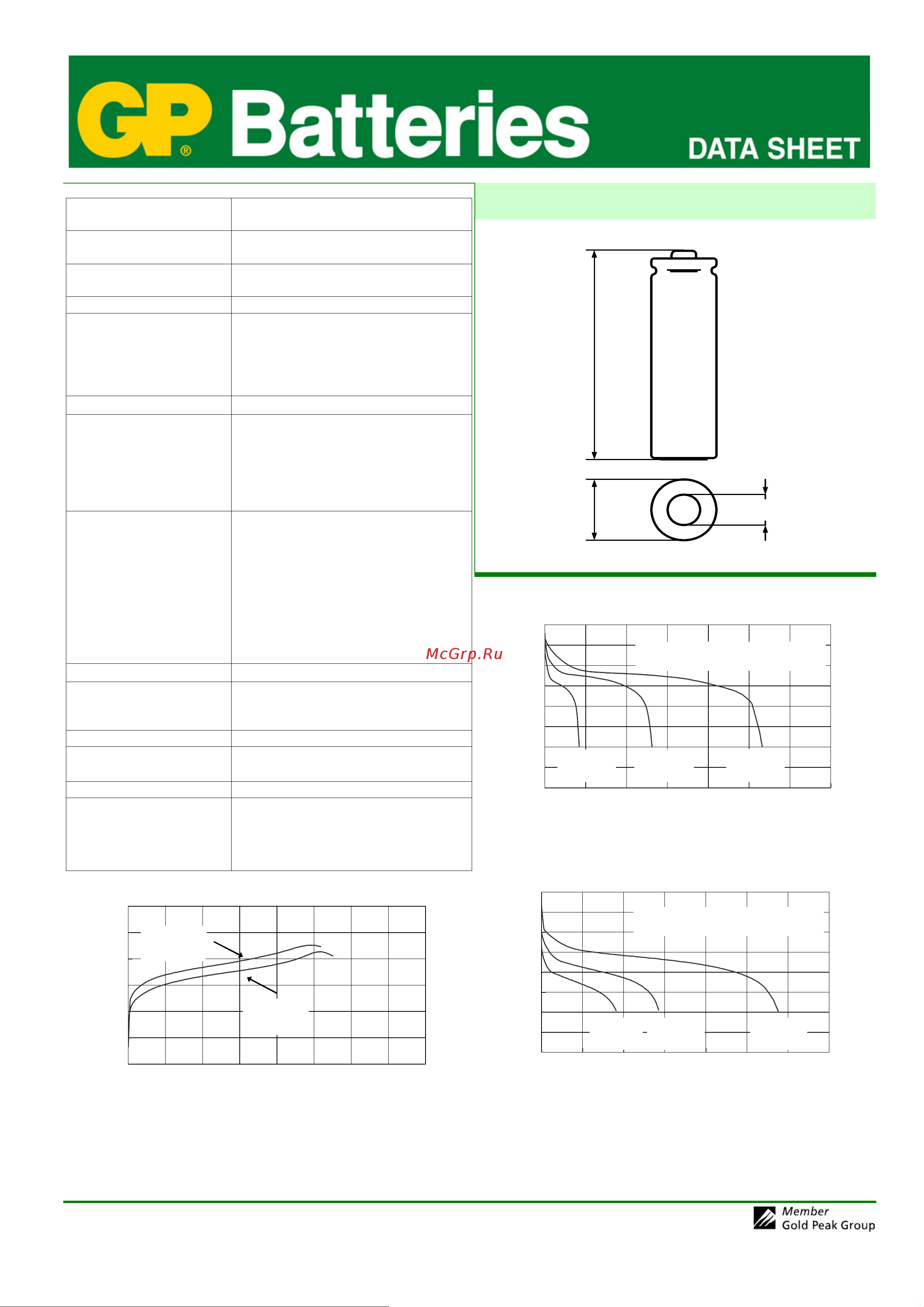

Model No.: GP270AAHC
5.2 (Ref.)
14.5
-0.7
+0
50.5 -1.3
+0
unit: mm
Type
: Rechargeable Nickel Metal
Hydride Cylindrical Cell
Nominal Dimension
(with Sleeve)
:
Φ = 14.5mm
H = 50.5mm
Applications
: Recommended discharge current
260 to 7800mA
Nominal Voltage
: 1.2V
Capacity
: Nominal: 2600mAh
Minimum: 2600mAh
Typical: 2600mAh
When discharged at 520mA to
1.0V at 20
Charging Condition
:
260mA for 16 hrs at 20
Charging Retention
: 70% of nominal capacity after cell
storage at 20 for 6months,
50% of nominal capacity after cell
storage at 20 for 1year
When discharged at 520mA to 1.0V at
20
Fast Charge
: 1300mA to 2600mA (0.5 to 1C)
charge termination control
recommended control parameters:
-ΔV
: 0-5mV
DT/dt :
0.8/min (0.5 to 0.9C)
0.8 - 1/min (1C)
TCO :
45 - 50
Timer : 100% nominal input
(for ref. only)
Service Life
:
~300 cycles (IEC standard)
Continuous
Overcharge
: 260mA maximum current for 1 year.
No conspicuous deformation and/or
leakage
Weight
: 31.0g
Internal Resistance
:
Average 20mΩ upon fully charged
(Max.28mΩ) at 1000Hz
Max. Charging Voltage
: 1.5V at 260mA charging
Ambient Temperature
Range
:
Standard Charge : 0 to 45
Fast Charging : 10 to 45
Discharge : -20 to 50
Storage : -20 to 35
1.1
1.2
1.3
1.4
1.5
1.6
1.7
0 20 40 60 80 100 120 140 160
Capacity Input %
Voltage (V)
Fast Charge (Charge Control Required)
2400mA
(1C)
1200mA
(0.5C)
0.7
0.8
0.9
1
1.1
1.2
1.3
1.4
1.5
02468101214
Discharge Time (Hrs)
Voltage (V)
Low Rate Discharge
1200mA
(0.5C)
240mA
(0.1C)
480mA
(0.2C)
Charge: 240mA x 16hrs at 20°C
0.7
0.8
0.9
1
1.1
1.2
1.3
1.4
1.5
0 10203040506070
Discharge Time (Mins)
Voltage (V)
High Rate Discharge
7200mA
(3C)
2400mA
(1C)
4800mA
(2C)
Charge: 240mA x 16hrs at 20°C
The information (subject to change without prior notice) contained in this document
is for reference only and should not be used as a basis for product guarantee or
warranty. For applications other than those described here, please consult your
nearest GP Sales and Marketing Office or Distributors.
www.gpbatteries.com
MRS3868 rev.04
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice.
Copyright@GPI International Ltd. – All rights reserved
Charge: 260mA×16hrs at 20
Discharge: at 20
Charge: 260mA×16hrs at 20
Discharge: at 20
1300mA
(0.5C)
520mA
(0.2C)
260mA
(0.1C)
7800mA
(3C)
5200mA
(2C)
2600mA
(1C)
2600mA
(
1C
)
1300mA
(
0.5C
)
