GB-7

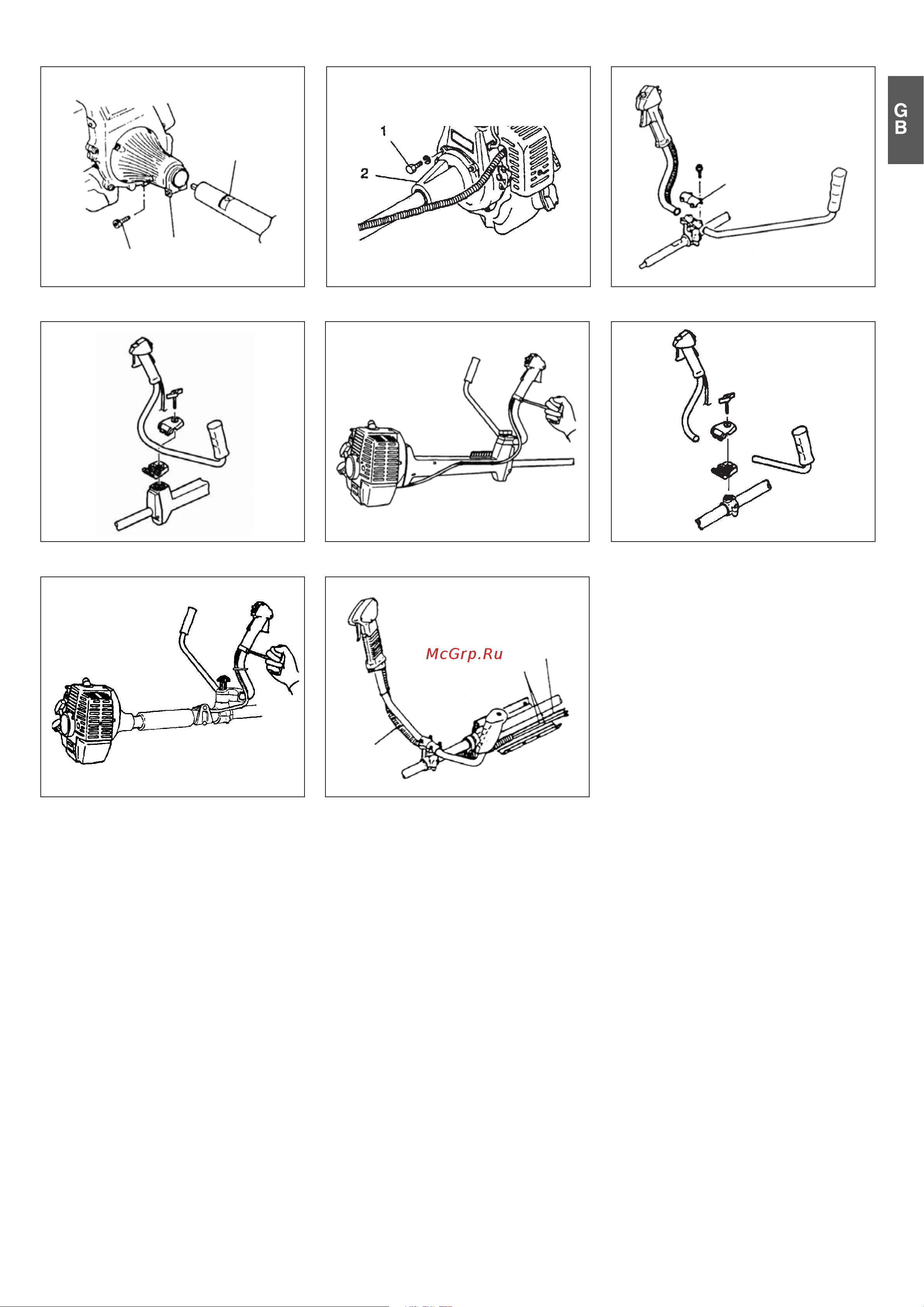

3. Assembly procedures

Installation of handle (Fig. 1-2)

Remove the handle bracket (1) from the

assembly. (Fig. 1-2)

Place the handles and attach the handle bracket

with four bolts lightly. Adjust to appropriate

position. Then fix it firmly with the bolts.

Throttle wire/stop cord

Put stop cords(3) and throttle wire(1) through

protection tube(2). Then unhook the hip pad

and wrap the protected stop cords and throttle

wire (1) with it (Fig.1-3)

NOTE

Fix protection tube on drive shaft(CG47EJ) or

handle(CG47EJ (T)) using cord clamps.

Fig. 1-1 Fig. 1-1B

Fig. 1-2B

Fig. 1-2

Installation handle for CG47EJ (T)

(Fig. 1-2D, 1-2E)

Place the handles and attach the handle

bracket with the handle knob lightly. Adjust

appropriate position. Then fix it firmly with the

handle knob.

Attach throttle grip on the handle with a screw

and nut.

Fig. 1-2C Fig. 1-2D

Fig. 1-2E

Fig. 1-3

Drive shaft to engine (Fig. 1-1)

Loosen tube locking bolt (1). Insert the drive shaft

into the clutch case of the engine properly until

the marked position (2) on the drive shaft tube

meets the clutch case.

NOTE!

When it is hard to insert drive shaft up to the

marked position on the drive shaft tube, turn

drive shaft by the cutter mounting end clockwise

or counter-clockwise. Tighten tube locking bolt

lining up the hole in the shaft tube.

Then tighten clamp bolt securely (3).

Drive shaft to engine for CG47EJ (T)

(Fig.1 -1B)

Attach the engine to the clutch case (2) with the

four screws or bolts (1) provided.

NOTE for CG47EY (T) (Fig. 1-2B, 2C)

The drive shaft and the engine of this model are

pre-assembled at the factory. All you have to do

is attach throttle grip on the handle with a screw

and a nut and then, install it on the handle

brackets. Finger-tighten the knob nut securely.
