2. That the extension cord is properly wired and in good electrical condition;

and

3. That the wire size is a minimum of 16 AWG to allow for AC ampere rating of

the charger.

When Storing Battery Pack

• Keep the battery charger dry. Avoid exposing the battery pack to rain or wet

conditions.

Before Performing Adjustments Or Repairs

• Models with portable battery pack:Remove the battery pack from the engine

battery tray.

• Models with integrated battery pack:Disconnect the wire harness from the

starter motor.

WARNING

Battery chemicals are toxic and corrosive.

Fire or explosion can cause severe burns or death.

• Never burn or incinerate discarded or used battery packs as they may explode.

Toxic fumes and materials are created when battery packs are burned.

• Do not use a battery that has been crushed, dropped, or damaged.

Features and Controls

Engine Controls

Compare the illustration (Figure:1,2,3) with your engine to familiarize yourself with the

location of various features and controls.

A. Engine Identification NumbersModel - Type - Code

B. Spark Plug

C. Muffler, Muffler Guard (if equipped), Spark Arrester (if equipped)

D. Electric Starter

E. Dipstick

F. Lithium-Ion Portable Battery Pack

G. Air Intake Grille

H. Fuel Tank and Cap

I. Air Cleaner

J. Throttle Control (if equipped)

K. Battery Charger - Portable Battery Pack

L. Fuel Shut-off (if equipped)

M. Lithium-Ion Integrated Battery Pack

N. Cable and Charger - Integrated Battery Pack

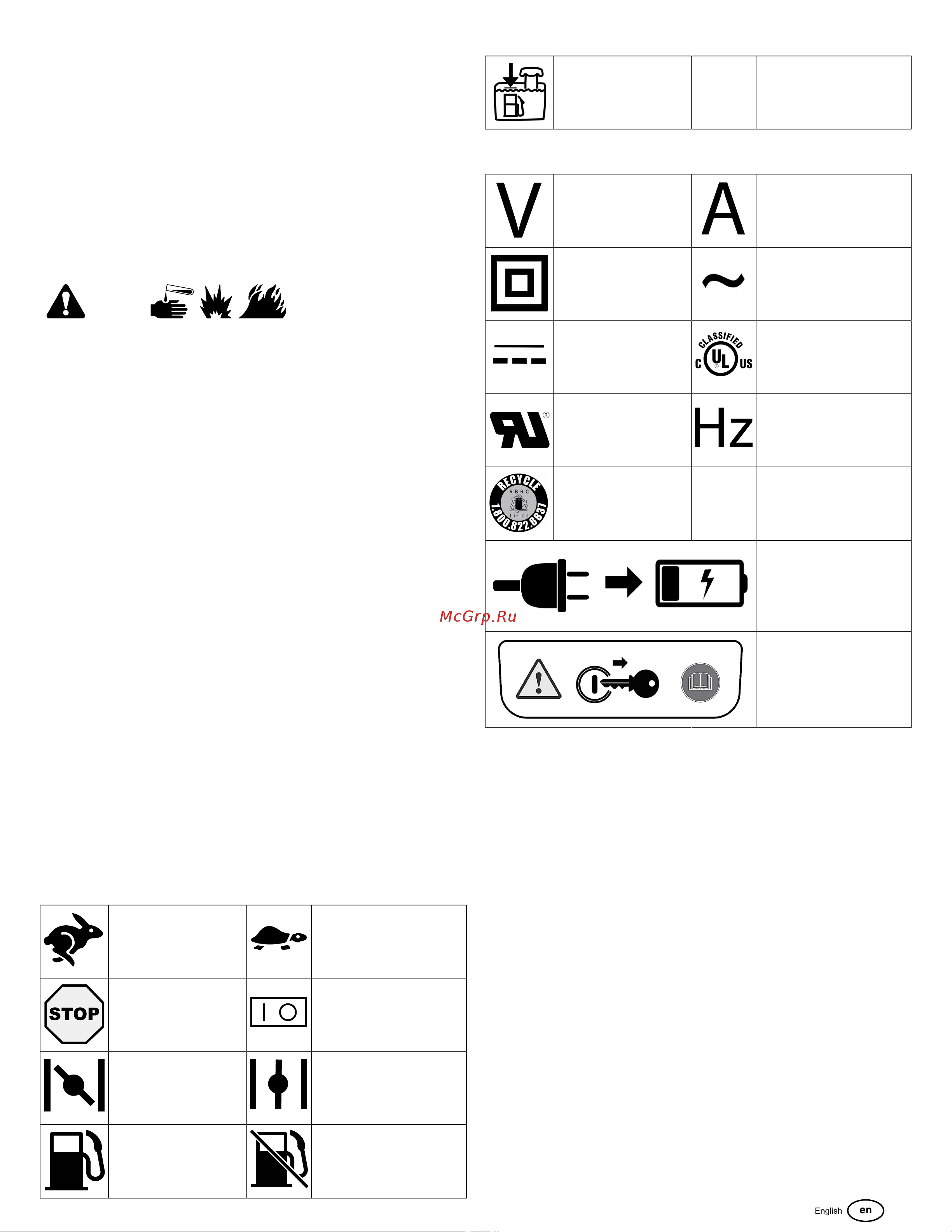

Engine Control Symbols and Meanings

Engine speed - FAST Engine speed - SLOW

Engine speed - STOP ON - OFF

Engine start - Choke

CLOSED

Engine start - Choke OPEN

Fuel Cap

Fuel Shut-off - OPEN

Fuel Shut-off - CLOSED

Fuel level - Maximum

Do not overfill

Battery Control Symbols and Meanings

Volt Ampere

Double Insulated Alternating Current

Direct Current Underwriters Laboratories,

Inc. US & Canada Listed

Product

Underwriters Laboratories,

Inc. Registered Product

Hertz

Properly Recycle Battery  

Charge Battery Pack

Remove Key / Battery Pack

Operation

Oil Recommendations

Oil Capacity: See the Specifications section.

NOTICE

Some engines are shipped from Briggs & Stratton with or without oil. Always make

sure that the engine has oil. If you start the engine without oil, it will be damaged

beyond repair and will not be included under the warranty.

We recommend the use of Briggs & Stratton

Warranty Certified oils for best

performance. Other high-quality detergent oils are permitted if classified for service SF,

SG, SH, SJ or higher. Do not use special additives.

Outdoor temperatures determine the correct oil viscosity for the engine. Use the chart

to select the best viscosity for the outdoor temperature range expected. Engines on

most outdoor power equipment operate well with 5W-30 Synthetic oil. For equipment

operated in hot temperatures, Vanguard

15W-50 Synthetic oil gives the best

protection.
