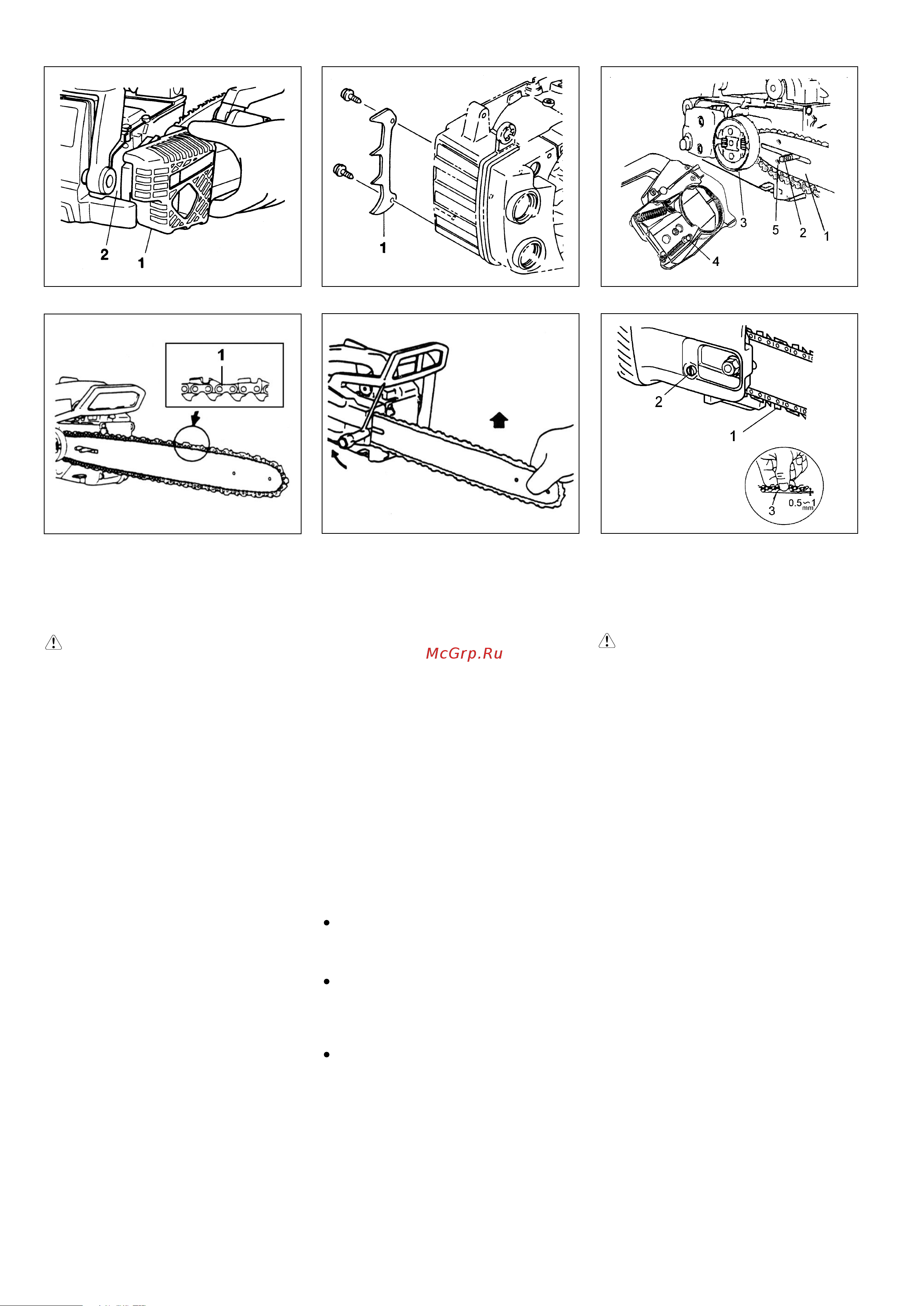

GB-6

Slightly move the bar back and forth and make

sure the chain tension boss (4) fits into the hole

(5) in the bar properly.

4. Confirm the direction of saw chain (1) is

correct as in the figure, and align the chain on

the sprocket. (Fig. 1-3)

5. Guide the chain drive links into the bar

groove all around the bar.

6. Install the side case (1) onto the guide bar

clamp bolts after inserting it on the align-

ment/locking tab on the engine case (2).

(Fig. 1-1)

Then fix the clamp nuts temporarily.

3. Assembly procedures

NOTE!

Fig.1-1 Fig.1-2Fig.1-1B

Fig.1-3 Fig.1-4

Fig.1-5

WARNING!

7. Raise the bar end, and tighten the chain (1)

by turning the tension adjustment bolt (2)

clockwise. To check proper tension, lightly

lift up the center of chain and there should

be about 0.5-1.0mm clearance between bar

and edge of drive link (3). (Fig.1-4, 5)

CAUTION!

PROPER TENSION IS EXTREMELY IM-

PORTANT!

8. Raise the bar end and securely tighten the

chain bar clamp nuts with the box wrench.

(Fig. 1-4)

9. A new chain will stretch so adjust the chain

after a few cuts and watch chain tension

carefully for the first half hour of cutting.

NOTE!

Check the chain tension frequently for

optimum performance and durability.

CAUTION!

When the chain is excessively tightened, the

bar and chain will be damaged rapidly.

Conversely, when the chain is excessively

loosened, it may get out of the groove in the

bar.

Always wear gloves when touching the chain.

During operation, hold chain saw firmly

with both hands. A single hand operation

may cause serious injury.

WARNING!

Never try to start engine without side case

securely fastened.

1. Remove chain bar clamp nuts (3).

2. Remove the side case (1) as pinching the

rear part of the side case (1) .(Fig. 1-1)

* Install the spiked bumper (1) (If so equipped)

to the unit with the two screws. (Fig.1-1B)

3. Install, the chain bar (1) onto the bolts (2),

then push it toward the sprocket (3) as far as

it will go. Make sure that the boss of chain

tension adjust bolt (4) fits into the hole of the

bar (5). (Fig.1-2)
