Code:
Drawing verified
correct as of:
DATE
28/10/2015
FILENAME
BRASSTRAP-25-CP.VSD
REVISED
20/05/2014, 08/10/2014
28/10/2015
SCALE
1: 3
DRAWN BY
RM
BRASSTRAP-25-CP
Code:
Drawing verified
correct as of:
DATE
14/11/2019
FILENAME
BRASSTRAP-25-CP.VSD
REVISED
20/05/2014, 08/10/2014
28/10/2015. 14/11/2019
SCALE
1: 3
DRAWN BY
RM
14/11/2019
RM

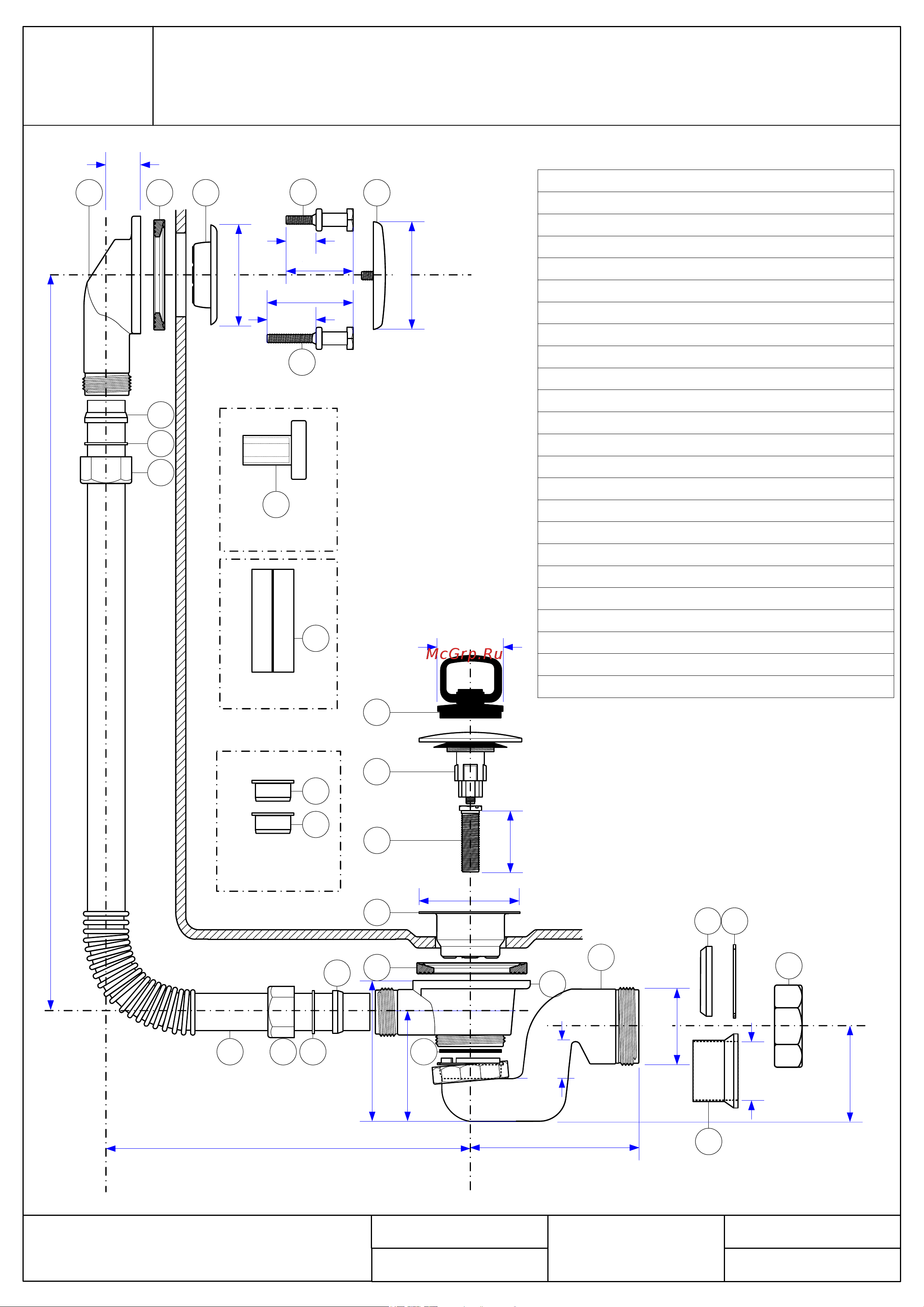

Part No. Description
1 Black PVC Plug
2 Clicker Seal
3 Ø70mm Polished S.S. Flange
4 45mm Bolt
5 6.5mm thick Nitrile Seal
6 CP Brass Waste Body
7 CP Brass Trap Body
8 1 ½” Nitrile Rubber Compression seal
9 1 ½” Clear Plastic Washer
10 40mm Nitrile Rubber Compression Seal
11 1 ½” CP Brass Outlet Nut
12 Nitrile Rubber seal for trap
13 1" Rubber Pipe Seal
14 1" Plastic Washer
15 1" CPB Nut
16 1" Copper CP Overflow Pipe
17
2 x Black Plastic Protective Caps for O/F Pipe (Item16)
18 Clear Plastic Cutting Sleeve for O/F Pipe (Item 16)
19 CP Brass Overflow Body
20 SS O/F Clamp plate
21 2x Locking Bolt – 2 Sizes for thick baths
22 Ø73mm CPB Overflow Cover
23 12mm Plastic Socket Key for Ferrules (Item 21)
85mm high Chrome Plated Brasstrap with
25mm Water Seal and Overflow.
2019 5
13
1
3
4
5
6
BATH
8 9
11
10
13
141516
17
17
18
23
22
21
21
14
15
2
85mm
(assembled)
130mm (Assembled)
450mm (Assembled)
1 ½”
Universal
Ø69mm
Ø70mm
Ø40mm
42mm
Will fit baths up to 24mm thick.
Longer clamping bolts available
separately if required.
1 ¾” (44.5mm)
Physical Measurement.
Suits Waste Hole
in 1 ½” BSP Waste
Cutting Sleeve for
O/F Pipe(Item 16)
Protective End Caps
for O/F Pipe(Item 16)
Ø73mm
23.5
Multifit Seals for
UK 1 ½” Pipe
For thinner Baths
61mm
36mm
45mm
20
2019 5
13
1
3
4
5
6
BATH
7
8 9
11
10
12
13
141516
17
17
18
23
22
21
21
14
15
25mm
Water Seal
2
72mm
(assembled)
250mm (Assembled)
130mm (Assembled)
450mm (Assembled)
1 ½”
Universal
Ø69mm
Ø70mm
Ø40mm
42mm
Will fit baths up to 24mm thick.
Longer clamping bolts available
separately if required.
1 ¾” (44.5mm)
Physical Measurement.
Suits Waste Hole
in 1 ½” BSP Waste
Socket Key For
Ferrules (item 21)
Cutting Sleeve for
O/F Pipe(Item 16)
Protective End Caps
for O/F Pipe(Item 16)
65mm
Ø73mm
23.5
Compression Seal for
Ø40mm OD Pipe
Multifit Seals for
UK 1 ½” Pipe
For thinner Baths
61mm
36mm
45mm
20
For thicker Baths
up to 23mm thick.
