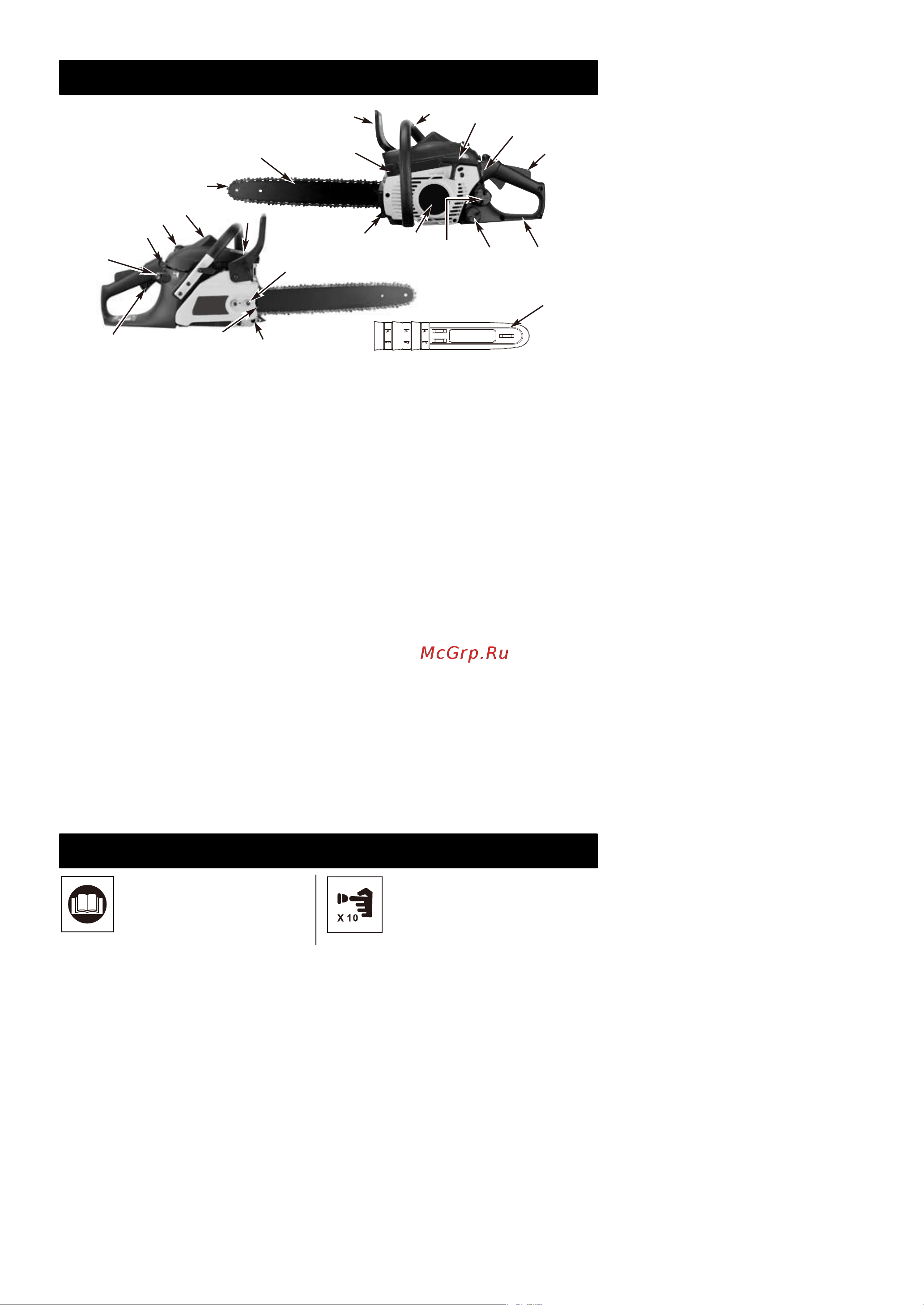

IDENTIFICATION (WHAT IS WHAT?)

IDENTIFICATION OF SYMBOLS

-- 2 --

Primer Bulb

1. Saw chain

2. Guide Bar

3. Spark Arrester Screen

4. Chain Brake Lever / Hand

Guard

5. Front Handle

6. Starter Handle

7. ON/OFF Switch

8. Safety Trigger

9. Rear Handle / Boot Loop

10. Oil Tank cap

11. Fuel Tank Cap

12. Starter Cover

13. Spiked Bumper

14. Bar Retaining Nuts

15. Muffler Shield

16. Spark Plug

17. Air Cleaner Cover

18. Choke Lever for Auto

Choke

19. Primer Bulb

20. Throttle/Trigger

21. Saw Chain Adjustment

Screw

22. Chain Catcher

23. Guide-bar Cover

SAFETY FEATURES

Numbers preceding the descriptions correspond with the numbers above to help you locate

the safety feature.

1 LOW KICKBACK SAW CHAIN helps

significantly reduce kickback, or the

intensity of kickback, due to specially

designed depth gauges and guard

links.

3 SPARK ARRESTER SCREEN retains

carbon and other flammable

particles over 0.023 inches (0.6mm)

in size from engine exhaust flow.

Compliance with local, state and

federal laws and/or regulations

governing the use of a spark arrester

screen is the user’s responsi-

bility. See Safety Precautions for

additional information.

4 CHAIN BRAKE LEVER / HAND

GUARD protects the operator’s left

hand in the event it slips off the front

handle while saw is running.

4 CHAIN BRAKE is a safety feature

designed to reduce the possibility of

injury due to kickback by stopping a

moving saw chain in milliseconds. It is

activated by the CHAIN BRAKE lever.

7 STOP SWITCH immediately stops

the engine when tripped. Stop switch

must be pushed to ON position to

start

or restart engine.

8 SAFETY TRIGGER prevents acciden-

tal acceleration of the engine. Throttle

trigger (20) cannot be squeezed

unless the safety latch is depressed.

22 CHAIN CATCHER reduces the danger

of injury in the event saw chain breaks

or derails during operation. The chain

catcher is designed to intercept a

whipping chain.

Read and understand the Instr-

uction Manual and all warning

labels before using the machine.
