of IEK trademark (hereinafter – tester) is designed to detect
Non-contact AC voltage tester VD10 of ARMA2L 5 series
Basic product data
AC voltage in the network.
The tester meets the requirements of LVD Directive 2014/35/EU,
ÅÌÑ Directive 2014/30/EU, RoHS Directive 2011/65/EU.

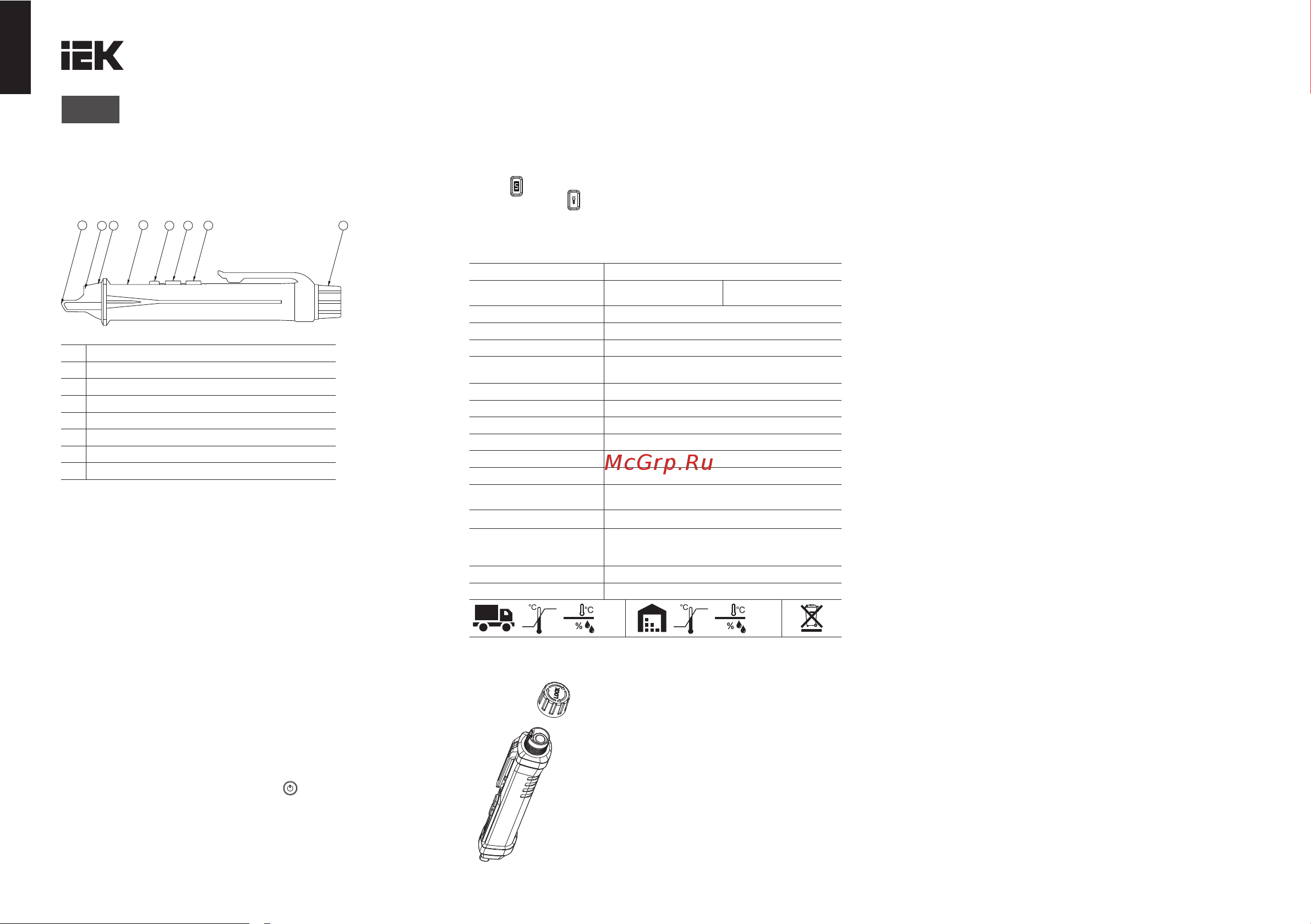

Structural diagram of the tester
Èçäàíèå / Version 1
ARMA2L 5
EN
l If the battery is discharged, do not use the device and replace the
battery with a good one.
l Do not use the tester to control voltages that exceed the allowable
value indicated on the device and in the passport.
l If the device is not used for a long time, remove the batteries and
observe the storage conditions specified in this passport.
1. Switching-on
2. Preliminary control
l Read the safety instructions before using the device.
l Check the tester with a known voltage source before use.
l Read all instructions carefully before using the tester.
Safety precaution
l Be careful when working with voltages greater than 30 V AC.
l To avoid electric shock, the following rules must be observed:
l Before use, check the device for mechanical damage. If in doubt,
replace the tester.
l Use personal protective equipment when working on electrical
installations, especially in the case of high voltages.
l Use the device only for its intended purpose.
l Use the batteries specified in this passport.
l If possible, do not take measurements alone.
Instructions for tester operation
To on/off the tester, press the button ( ). When switched on, the
device tests all indicators for operability, after which the button glows green,
which means the device is ready for use.
Before starting work, check the operation of the tester on a known
source of alternating voltage within the operating range.
Place the sensor (1) close to the AC voltage source (approximately
<1 cm). If the tester detects voltage in the operating range of values, then
the indicator of the corresponding intensity (low, medium, high) will light
up and a signal will sound.
To turn on the indication in the range of 12~1000 V AC, press the
The device is not designed to detect hidden wiring in the wall.
When AC voltage is detected, the green intensity indicator (low) flashes.
If a higher AC voltage is detected, the green intensity indicator
(middle) will light up.
Technical data
When the highest AC voltage is detected, the red intensity indicator
(high) lights up.
4. Press the ( ) button to turn the flashlight on and off.
button ( ).
3. Standard display mode (48~1000V AC)
Note:
1
Non-contact voltage tester sensor
2
Flashlight
3
Induced voltage signal indicator
4
Induced voltage signal intensity indicator
5
Power on/off button
6
Flashlight on/off button
7
Enhanced sensitivity enable button
8
Compartment for batteries
Parameter
Value
AC voltage range, V
12 to 1000 V (if the high
sensitivity mode is on)
48 to 1000 V (if the high
sensitivity mode is off)
Frequency, Hz
50
Indication method
sound and light
Automatic shutdown
5 minutes of inactivity
Signal intensity indication
3 levels: high (red blinking), medium (green blinking), low
(green glowing) and sound indication of different frequency
Pollution degree acc.to IEC 61010-1
2
Measurement category
CAT III
Protection class acc. to IEC 61140
II
Operating temperature
from 0 °Ñ to plus 40 °Ñ at RH up to 70 %
Power source
2ґ1,5 V AAA battery
Degree of protection acc. to IEC 60529
IP20
Complete set
Non-contact AC voltage tester – 1 pc., battery 1,5 V type AAA – 2 pcs.,
passport – 1 pc.
Service life, years
10
Warranty period (from the date of sale,
subject to the rules of transportation,
storage and operation), years
2
Dimensions (HґWґD), mm
156ґ20ґ20
Weight without batteries, g
45
1
4
5
6
7
8
2
3
+25
70
‒ 10
+50
+25
70
‒ 10
+60
Battery replacement
1. Unscrew the battery cover at the back of
the detector.
2. Replace two batteries, observing the
polarity of the installation.
3. Screw on the battery cover. Do not apply
excessive force.
4. Verify the voltage detector is working on
a known AC voltage source within
the operating range.
