(RS-15, 25, 50 only)
(RS-15/25,RD,RT,RQ)
3

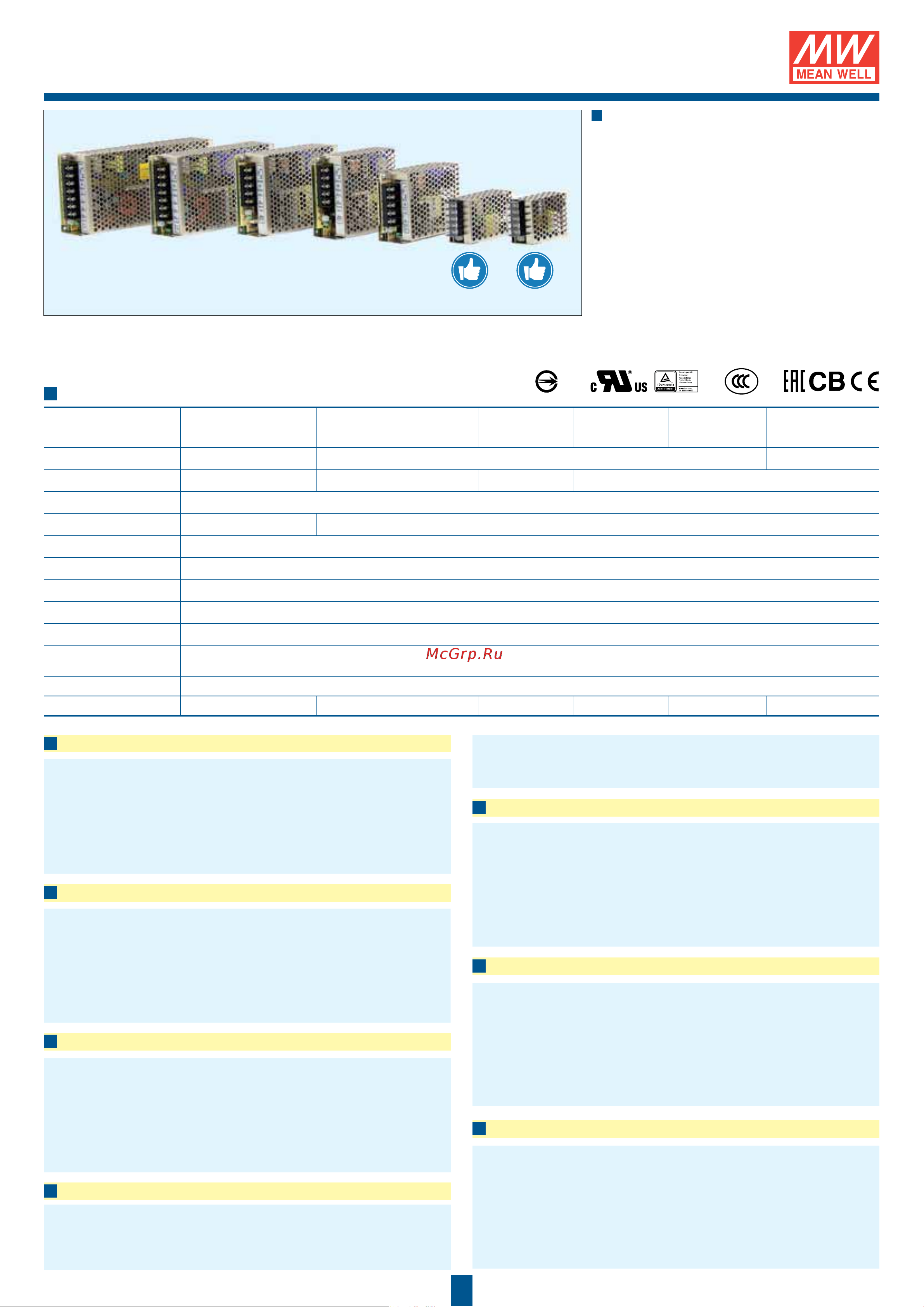

Enclosed-G3 Series
High Reliability Compact
• No load power consumption <0.5W (RS-15~75)
• All using 105
O
C long life electrolytic capacitors
• Protections: Short circuit / Overload /
Over voltage / Over Temp.(RS-15)
• Meet EMS EN50082-2/EN61000-6-2 heavy
industry level (35~150W)
• Withstand 300VAC surge input for 5 sec.
• High operating temperature up to 70°C
• Withstand 5G vibration test
• Miniature size
• Long life and high reliability
• LED indicator for power on
• Suitable for critical applications
• 3 years warranty
RS-150
RD/ID/T/Q-125
General Specification (Please refer to www.meanwell.com for detail spec.)
Model No. RS-15 RS-25
RS-35
RD-35
RS-50
RD / ID / T / Q-50
RS-75
RD / ID / T / Q-65
RS-100
RD / ID / T / Q-85
RS-150
RD / ID / T / Q-125
AC input voltage range 85~264VAC, 120~370VDC 88~264VAC, 125~373VDC 115 / 230VAC by switch
AC inrush current (max.) Cold start, 65A at 230VAC 30A at 230VAC 36A at 230VAC 33A at 230VAC 40A at 230VAC
DC adjustment range ±10% by potentiometer for single output; CH1 -5%~+10% by potentiometer for multiple output
Overload protection >105%, hiccup mode 110%~180% 110%~150% hiccup mode, auto-recovery (150% ~190% for RID-125-1205/2405)
Over voltage protection 115%~135%, shut off 115%~135% rated output voltage, hiccup mode, auto-recovery
Withstand voltage I/P - O/P: 3kVAC, I/P - FG: 2kVAC, O/P - FG: 0.5kVAC, 1 minute
Working temperature -20~+70°C -25~+70°C (refer to the derating curve for different models)
Vibration 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes
Safety standards UL62368-1, TUV EN62368-1, CCC GB4943(RS-15, 25, 50 only), EAC TP TC 004, BSMI CNS14336-1(RS-15/25, RD,RT, RQ only) approved
EMC standards
EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) (35~150W), GB17625.1,
EAC TP TC 020; GB9254 for RS-15, 25, 50 only
Connection Terminal block for input and output
Dimension (LxWxH)(mm) 62.5x 51x 28 78x 51x 28 99x 82x 36 99x 97x 36 129x 98x 38 159x 97x 38 199x 98x 38
:Ň6LQJOH2XWSXW
Model No. Output Tol. R&N Effi.
RS-25-3.3 3.3V, 0~6.0A ±3% 80mV 73.5%
RS-25-5 5V, 0~5.0A ±2% 80mV 78.5%
RS-25-12 12V, 0~2.1A ±1% 120mV 81.5%
RS-25-15 15V, 0~1.7A ±1% 120mV 83.5%
RS-25-24 24V, 0~1.1A ±1% 120mV 86.0%
RS-25-48 48V, 0~0.57A ±1% 200mV 85.0%
35WŇSingle Output
Model No. Output Tol. R&N Effi.
RS-35-3.3 3.3V, 0~7.0A ±3% 80mV 76.5%
RS-35-5 5V, 0~7.0A ±2% 80mV 80.5%
RS-35-12 12V, 0~3.0A ±1% 120mV 84.5%
RS-35-15 15V, 0~2.4A ±1% 120mV 86.0%
RS-35-24 24V, 0~1.5A ±1% 120mV 88.0%
RS-35-48 48V, 0~0.8A ±1% 200mV 88.5%
50WŇSingle Output
Model No. Output Tol. R&N Effi.
RS-50-3.3 3.3V, 0~10A ±3% 80mV 78.0%
RS-50-5 5V, 0~10A ±2% 80mV 83.0%
RS-50-12 12V, 0~4.2A ±1% 120mV 84.5%
75WŇSingle Output
Model No. Output Tol. R&N Effi.
RS-75-3.3 3.3V, 0~15A ±3% 80mV 75.0%
RS-75-5 5V, 0~12A ±2% 80mV 79.0%
RS-75-12 12V, 0~6.0A ±1% 120mV 84.5%
RS-75-15 15V, 0~5.0A ±1% 120mV 86.0%
RS-75-24 24V, 0~3.2A ±1% 120mV 88.5%
RS-75-48 48V, 0~1.6A ±1% 200mV 89.5%
100WŇSingle Output
Model No. Output Tol. R&N Effi.
RS-100-3.3 3.3V, 0~20A ±3% 80mV 74%
RS-100-5 5V, 0~16A ±2% 80mV 77%
RS-100-12 12V, 0~8.5A ±1% 120mV 81%
RS-100-15 15V, 0~7.0A ±1% 120mV 82%
RS-100-24 24V, 0~4.5A ±1% 120mV 84%
RS-100-48 48V, 0~2.3A ±1% 200mV 84%
150WŇSingle Output
Model No. Output Tol. R&N Effi.
RS-150-3.3 3.3V, 0~30A ±3% 80mV 74%
RS-150-5 5V, 0~26A ±2% 80mV 78%
RS-150-12 12V, 0~12.5A ±1% 120mV 83%
RS-150-15 15V, 0~10A ±1% 120mV 84%
RS-150-24 24V, 0~6.5A ±1% 120mV 86%
RS-150-48 48V, 0~3.3A ±1% 200mV 86%
RS-25
RS-100
RD/ID/T/Q-85
RS-75
RD/ID/T/Q-65
RS-50
RD/ID/T/Q-50
RS-35
RD-35
RS-50-15 15V, 0~3.4A ±1% 120mV 86.0%
RS-50-24 24V, 0~2.2A ±1% 120mV 88.0%
RS-50-48 48V, 0~1.1A ±1% 200mV 89.0%
15WŇSingle Output
Model No. Output Tol. R&N Effi.
RS-15-3.3 3.3V, 0~3.0A ±3% 80mV 72%
RS-15-5 5V, 0~3.0A ±2% 80mV 77%
RS-15-12 12V, 0~1.3A ±1% 120mV 81%
RS-15-15 15V, 0~1.0A ±1% 120mV 81%
RS-15-24 24V, 0~0.625A ±1% 200mV 82%
RS-15-48 48V, 0~0.313A ±1% 200mV 82%
RS-15
Features
