FORM NO. 3-24 05/27/2021
45-0566
50 LB PUSH SPREADER
A
B
2-9
2-80
45-0566
50 LB PUSH SPREADER
Problem?
Call 1-800-448-9282
the fastest way to purchase parts
www.speedepart.com
1
B
B
2
A
A
3
4
B
B
14
1
17
14
20
19
2
3
15
23
24
24
23
24
10
22
7
21
21
26
17
20
11
18
16
18
9
4
4
25
24
6
5
25
20
17
26
11
12
12
24
13
8

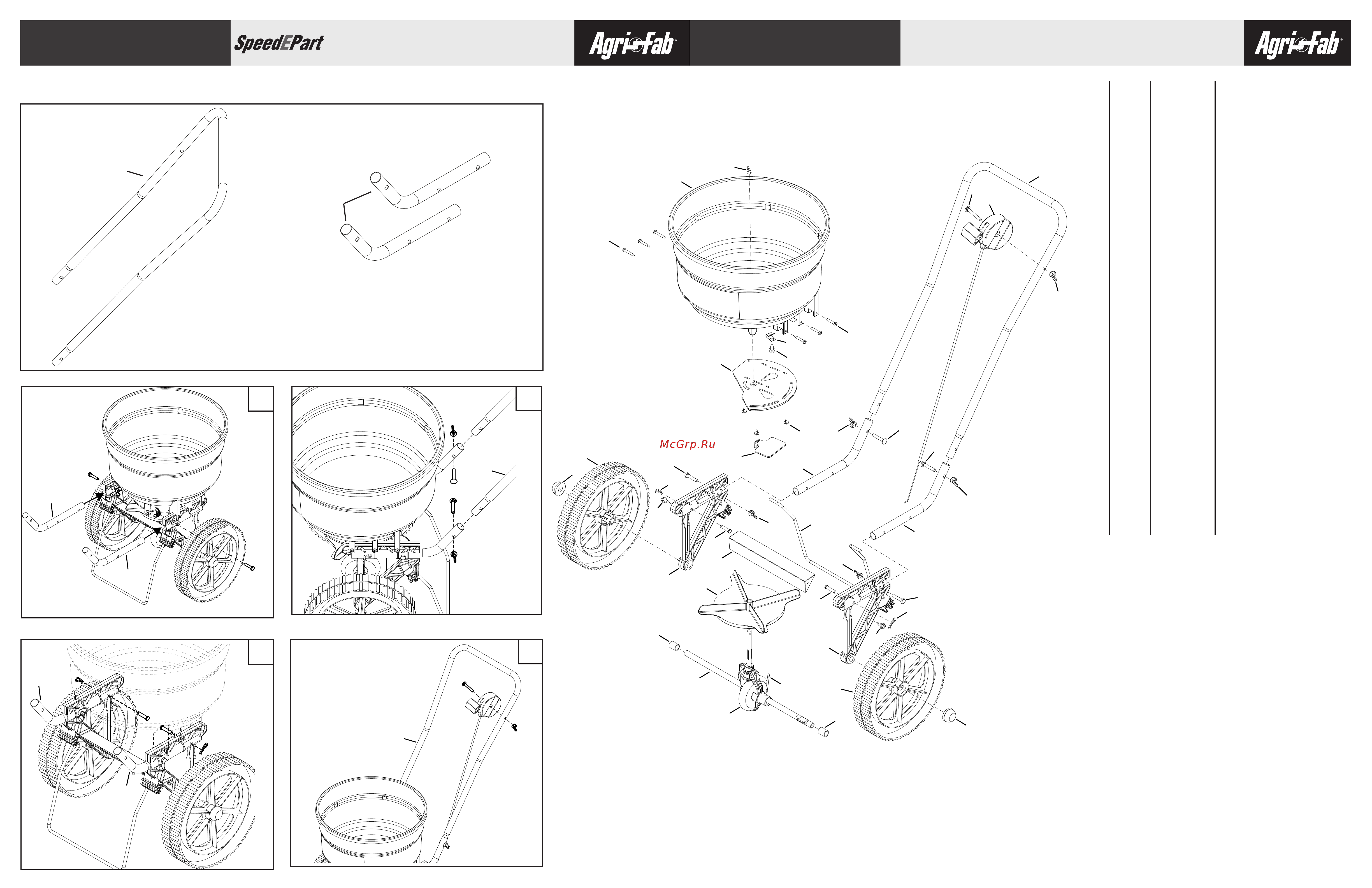

REF QTY PART NO DESCRIPTION
1 1 2-3 HOPPER, 50 LB. ROUND
2 1 2-4 GATE, HOPPER 50 LB.
3 1 2-5 DOOR SLIDE
4 2 2-6 LEG
5 1 2-7 BRACE, FRAME
6 1 2-8 WIREFORM, KICKSTAND
7 1 2-9 TUBE, HANDLE
8 1 6-3 ASS'Y, GEARBOX
9 1 45504 IMPELLER
10 1 2-11 CONTROL, CABLE ASS'Y
11 2 44663 NUT, 1/2 PUSH
12 2 48001 WHEEL
13 1 2-14 AXLE, 1/2" OD
14 6 4-2 SCREW, 10-16 X 1.25
15 3 4-3 SCREW, #8 X .375 PMT #8
16 1 41631 PIN, COTTER 5/32 X 1/2
17 3 HA3090 PIN, HAIR COTTER 1-1/8
18 2 45705 SPACER
19 1 41196 CLAMP, 7/32
20 3 41622 SCREW, HEX 1/4-14 X .625
21 2 2-80 TUBE, LOWER FRAME
22 1 45165 BOLT, CARR .25-20 X 2
23 2 46000 BOLT, CARR .25-20 X 1.5
24 5 47141 NUT, WING 1/4-20
25 2 48365 PIN, CLEVIS 1/4 X 1.11
26 2 1509-90 BOLT, HEX 1/4-20 X 1-1/4
1 3-24 Owner's Manual
