20 I 071E
HB2

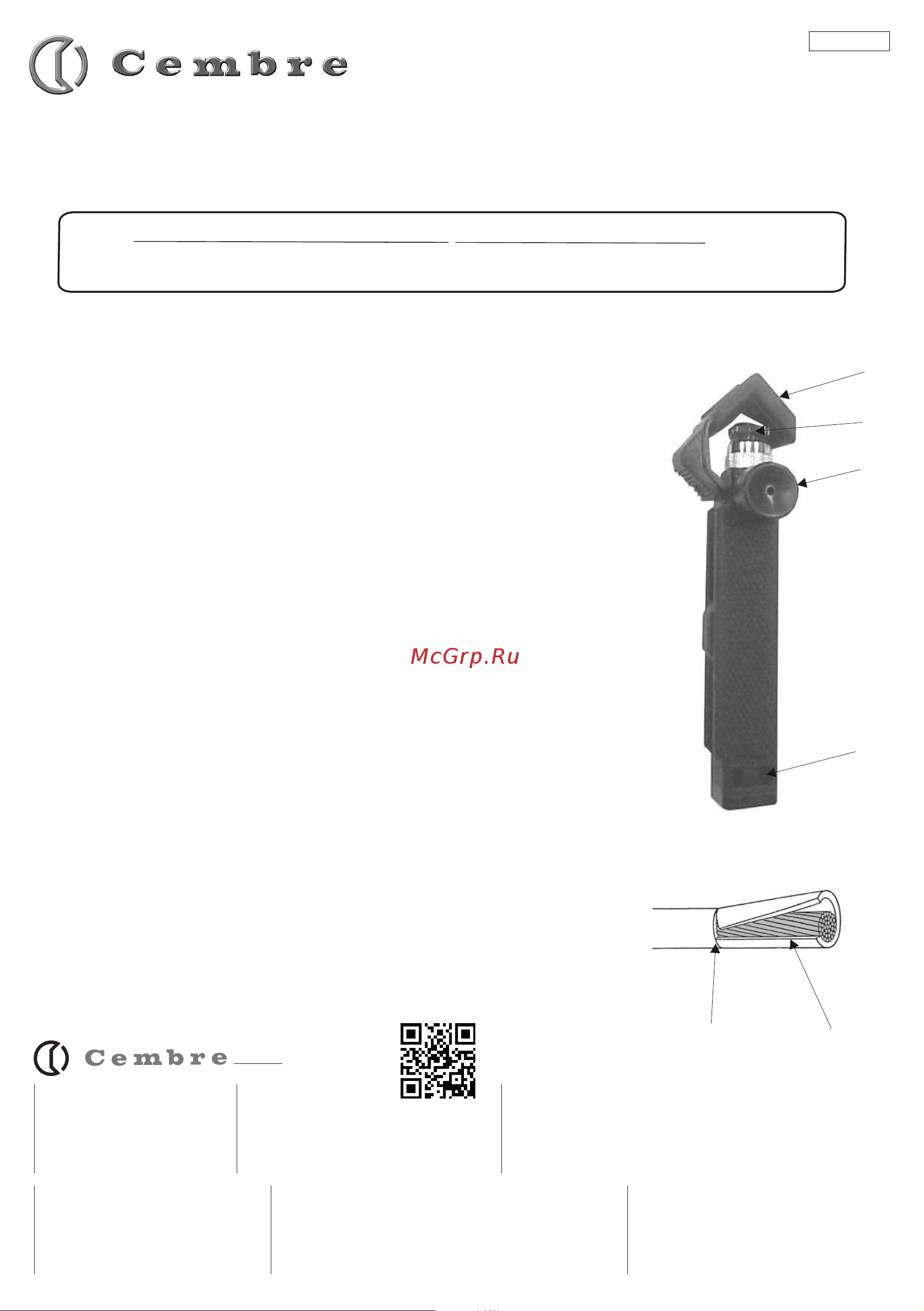

Instruction Sheet
The HB2 tool is used for slitting the PE, PVC, or rubber insulation on
electrical cables of between 4.5-28.5 mm (3/16” and 1-1/8”) diameter
with an insulation depth of up to 3 mm (1/8”) max, providing for efficient
F
insulation removal.
1.
The cutting blade is adjusted for depth of incision to the thickness of
A
insulation by turning the knurled screw shown (A) .
C
2.
Position the cable between the cutting blade and gripping arm, which is
spring loaded and holds the cable in contact with the blade.
3.
Rotate the tool clockwise around the cable to provide a circumferential
cut ensuring clean separation of the insulation (B).
4.
Rotate the blade through 90 degrees by depressing the push button
shown (C). While holding the button, pull the cutter along the length of
the cable to provide the longitudinal cut (D).
5.
The insulation may now be pulled clean away.
6.
To aid removal of tough insulation, HB2 tool is provided with a
E
ripping blade located in the base of the tool. The ripping blade is released
by pressing the button shown (E).
7.
For cable diameters above 19 mm (3/4”)
remove plastic gripping
arm cover (F) from the cable support bracket.
REPLACEMENT BLADE (Cembre code: 2591314)
Replacement cutting blades are simply fitted by removal of the knurled
adjuster screw and locking nut.
B D
Warning!
This tool should not be used on live electrical circuits. It is not protected against electrical
shock! Always use OSHA/ANSI or other industry approved eye protection when using tools. This tool is not
to be used for purpose other than intended. Read carefully and understand instructions before using this tool.
