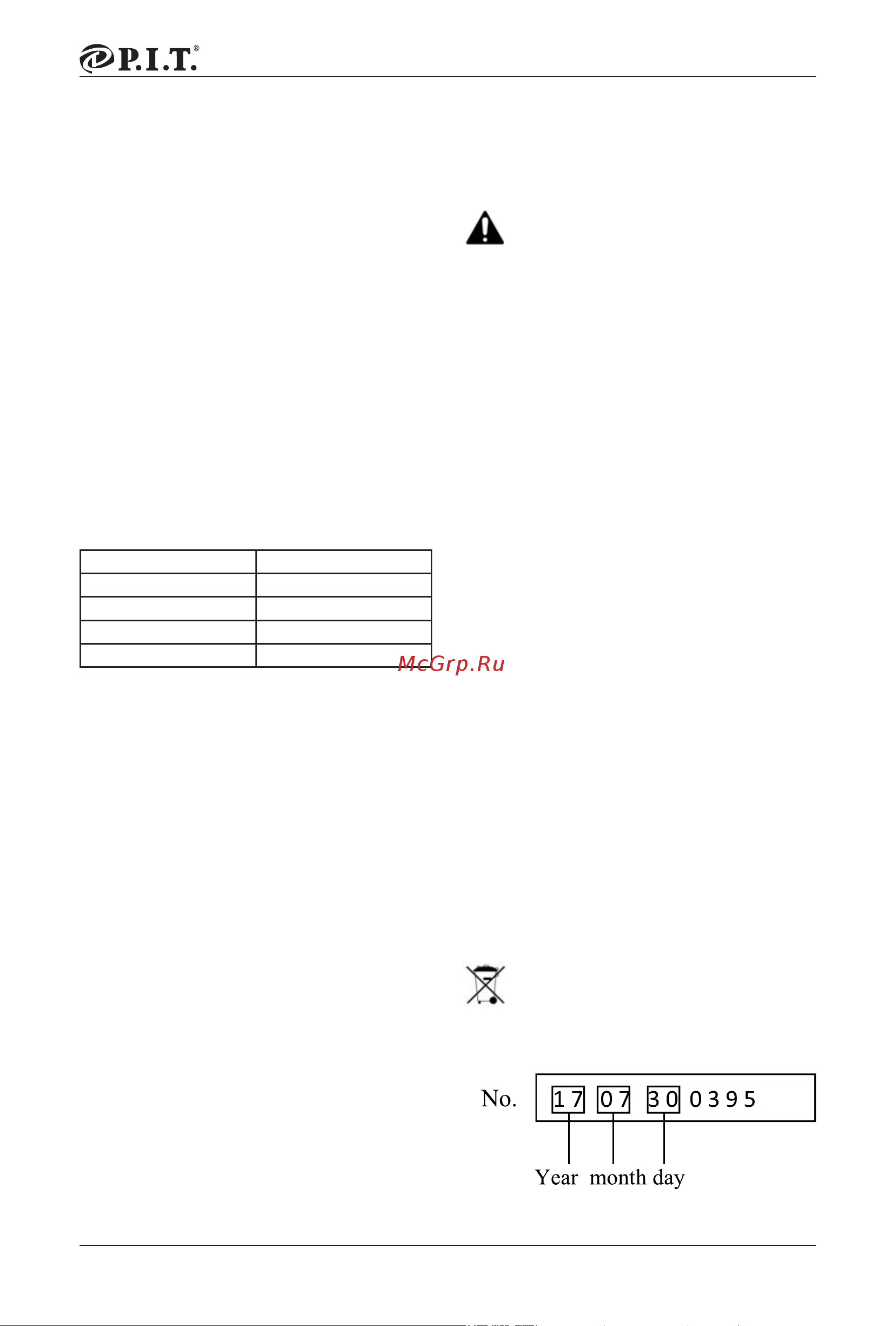

Burnishing Polisher

4

to the diagram of the power tool on the graph-

ics page.

(1) Spindle

(2) Speed control thumbwheel

(3) Self-locking button

(4) On/oﬀ switch

(5) Protection/dust cover

(6) Auxiliary handle

(7) Burnishing head

(8) Flange

(9) Burnishing head ﬁ xing screw

(10) Side cover

(11) Side cover ﬁ xing screws

(12) Vacuum cleaner adapter

(13) Fixing screw of vacuum cleaner adapter

(14) Nut for protection/dust cover

(15) Fixing screws for protection/dust cover

(16) Spindle lock button

(17) Dust outlet cover

(18) Phillips screwdriver hex key

(19) Hex key

Technical Data

Model PWP120-C

3BUFE7PMUBHF

220 V~/50 Hz

3BUFE1PXFS

1400 W

3BUFEOPMPBETQFFE

700-4200 r/min

.JYJOHEJBNFUFS

φ120x100 mm

Contents of delivery

Burnishing polisher 1 pc

Protection/dust cover 1 pc

Additional handle 1 pc

Phillips screwdriver hex key 1 pc

Hex key 1 pc

Dust outlet cover 1 pc

Burnishing head 1 pc

Vacuum cleaner adapter 1 pc

Dust outlet cover 1 pc

User manual 1 pc

Note

Since the product is constantly being im-

proved, P.I.T. reserves the right to make

changes to the specifications and product

speciﬁ cations speciﬁ ed here without prior no-

tice.

Assembly

See Figure A

-Unscrew the fastening screws (11) and re-

move the protective cover (10).

-Lock the spindle (1) by pressing the spindle

lock button (16).

-Using the hex key (19), unscrew the screw

that secures the brush (9) and remove

hold-down washer (8) seeker (7).

-Install the brush on the spindle.

ATTENTION!

-Assembly is performed in reverse sequence.

ATTENTION: Make sure the spindle lock but-

ton (16) is back to its original position.

position.

Initial Operation

WARNING

Before plugging in,

check that the rated mains voltage and

mains frequency, as stated on the rating

label, match with your power supply.

Use

On/Oﬀ switch, continuous activation

► Always guide the machine with both

hands.

► The machine must not be allowed to draw

inadditional dust and shavings. When

switching the machine on and oﬀ , keep It

away from dust deposits.

► After switching oﬀ the machine, only place

it down when the motor has come to a

standstill.

► In continuous operation, the machine

continues running if it is forced out of your

hands.Therefore, always hold the machine

using the handles provided, stand in a safe

position and concentrate.

Switching on/Continuous activation:

Push

sliding switch foiward. For continuous activa-

tion, now tilt downwards until it engages.

Switching oﬀ :

Press the rear end of the slide

switch and release.

Cleaning,Maintenance

Motor cleaning:

blow compressed air

through the rear ventilation slots of the ma-

chine regularly,frequently and thoroughly.

Here, the machine must be held ﬁ rmly.

Dispose of waste

Damaged power tools, batteries, accessories

and waste packaging materials must be recy-

cled and reused in an environmentally friendly

manner.

Do not throw power tools and accumula-

tors / batteries into general household waste!

Product serial number interpretation

serial number

The ﬁ rst and second digits of the product seri-

al number from left to right
