3. The water heater should be drained fully with the help of (turning the button operating) the safety

blow-off unit.

List of branches:

1 Sanitary hot water – hot water G3/4

2 Sanitary hot water - cold water G3/4

3. Circulation branch G3/4

4. Heating water upward G1

5 Heating water returning G1

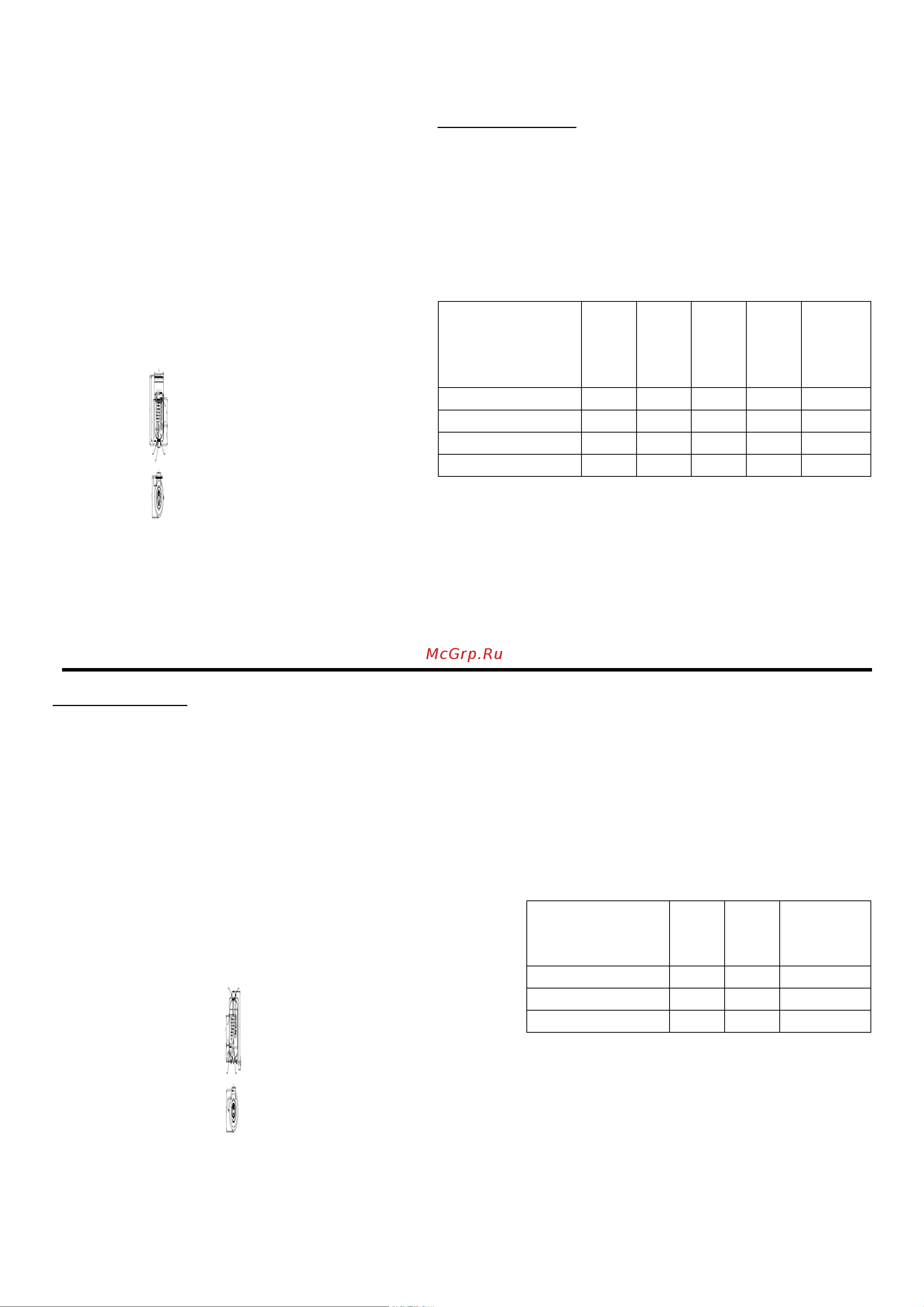

Figure 1.

List of branches:

1 Sanitary hot water – hot water G3/4

2 Sanitary hot water – cold water G3/4

3 Circulation branch G3/4

4. Heating water upward G1

5 Heating water returning G1

6 Radiator branch Rp6/4

Figure 2.

47/12

Type H A B C Coil

pipe

surface

)

AQ IND75FC 710 260 500 670 0,615

AQ IND100FC 870 340 570 830 0,81

AQ IND150FC 1200 340 1050 1160 0,81

AQ IND200FC 1474 340 1050 1431 0,81

Type H A Coil pipe

surface

)

AQ IND100SC 890 380 0,81

AQ IND150SC 1215 460 1,06

AQ IND200SC 1490 460 1,06
