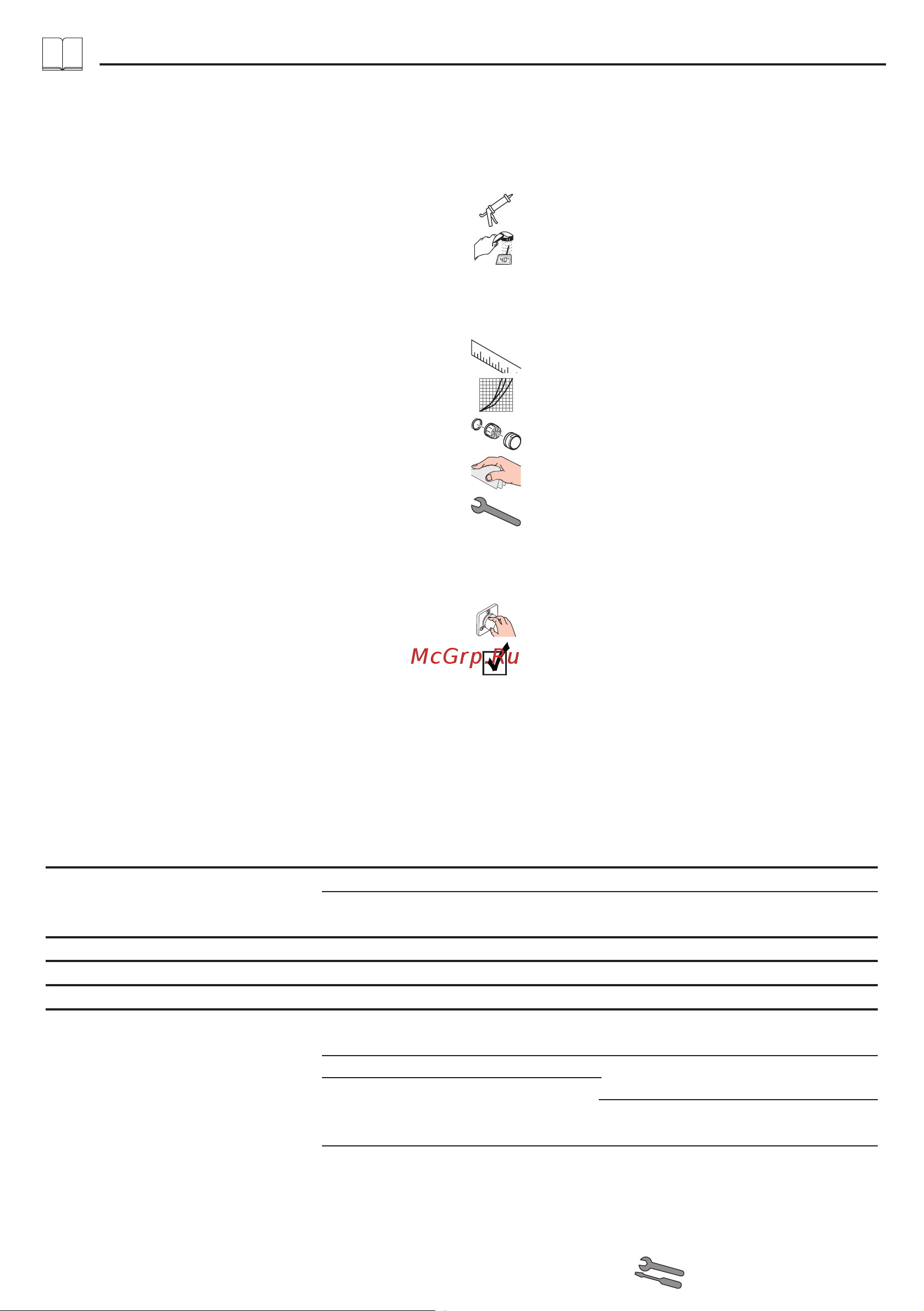

4
English
Assembly (see page 32)
Safety Notes
Gloves should be worn during installation to prevent
crushing and cutting injuries.
The product may only be used for bathing, hygienic
and body cleaning purposes.
The hot and cold supplies must be of equal
pressures.
Installation Instructions
• Prior to installation, inspect the product for transport
damages. After it has been installed, no transport or
surface damage will be honoured.
• The pipes and the fixture must be installed, flushed
and tested as per the applicable standards.
• The plumbing codes applicable in the respective
countries must be observed.
• 71740XXX: The diverter (type HC) installed in the
bath mixer is designed as an anti-retraction device.
For this reason, the lower edge of the diverter must
be at least 25 mm above the highest possible dirty
water level.
Technical Data
Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 - 0,5 MPa
Test pressure: 1,6 MPa
(1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 70°C
Recommended hot water temp.: 65°C
Thermal disinfection: max. 70°C / 4 min
• Safety against backflow
• The product is exclusively designed for drinking
water!
Symbol description
Do not use silicone containing acetic acid!
Adjustment (see page 34)
To adjust the hot water limiter. Using a hot water limiter
in combination with a continuous flow water heater is
not recommended.
Dimensions (see page 36)
Flow diagram (see page 36)
Spare parts (see page 38)
Cleaning (see page 37)
Maintenance (see page 40)
The check valves must be checked regularly according
to DIN EN 1717 in accordance with national or
regional regulations (at least once a year).
Operation (see page 35)
Test certificate (see page 40)
Fault Cause Remedy
Insufficient water - check valve hasn't moved back - Exchange check valves
- Shower filter seal dirty - Clean filter seal between shower
and hose
Mixer stiff - Cartridge defective, calcified - Exchange cartridge
Mixer dripping - Cartridge defective - Exchange cartridge
Hot water temperature too low - Hot water limiter incorrectly set - Set hot water limiter
Instantaneous heater didn’t work - Flow limiter in handshower isn’t re-
moved
- Remove flow limiter
- Shower filter seal dirty
- filter insert shower dirty
- Clean filter seal between shower
and hose
- Clean filter insert between shower
and hose
- check valve hasn't moved back - Exchange check valves
