3. DESIGN

The valve does not provide a sealed ﬂow overlap, and is not a shut-off valve! All cylindrical

tube threads correspond to DIN EN ISO 228-1, and all metric thread — DIN ISO 261.

Three-way valves have shutter with segmental gate, and four-way valves — shutter with

bypass damper plate.Three-way valves have possible angle of rotation of 360 degrees. Four-

way valves have driving lever (6) with a rotation limiter which limits the rotation angle up to 90

degrees.The plate (5) has a scale graded from 0 to 10.

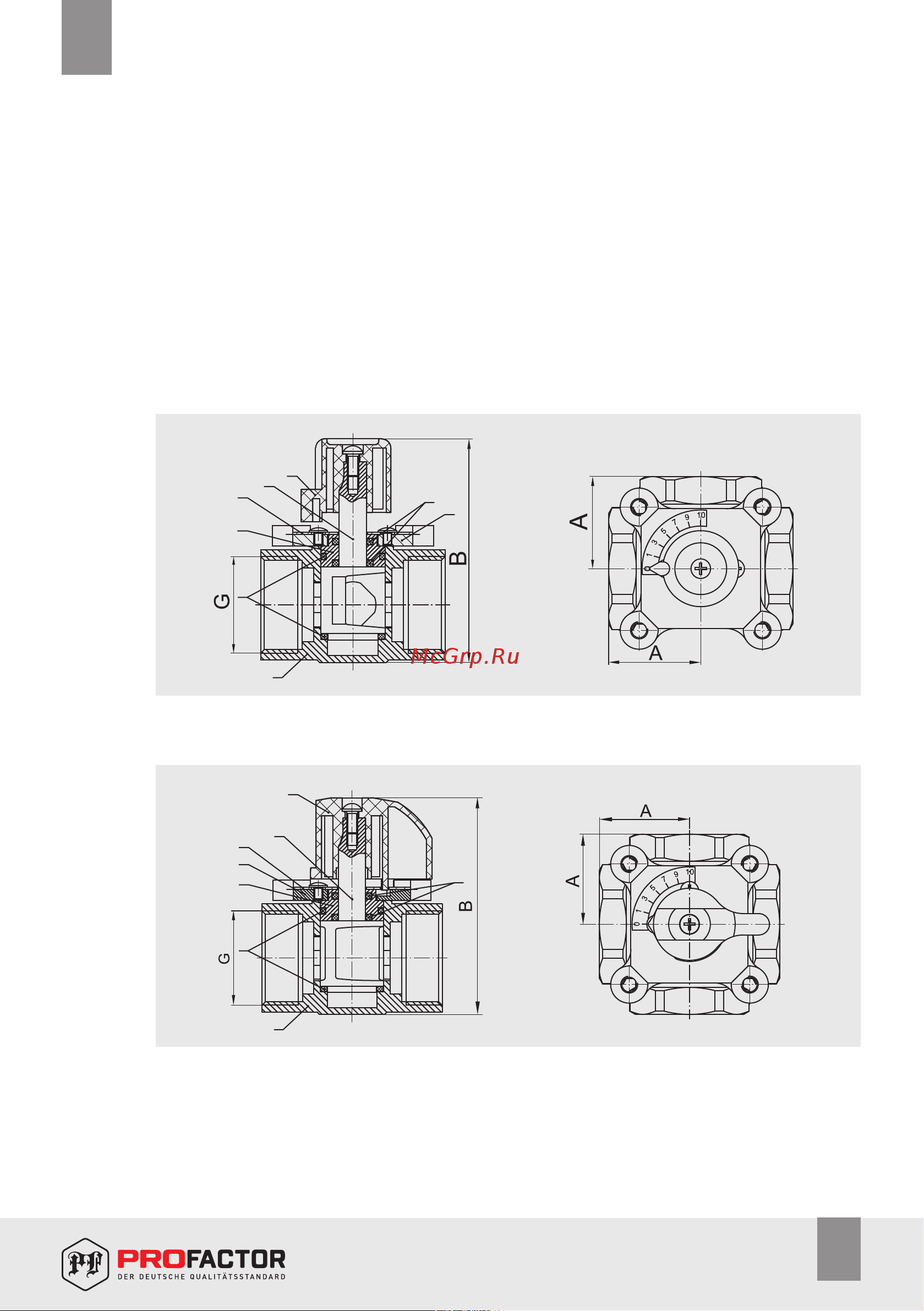

Three-way valve (Code PF RVM 389)

Four-way valve (Code PF RVM 390)

1 – Body

2 – Rotary shutter

3 – Sleeve

4 –Flange

5 – Plate with the scale

6 – Lever

7 – Big sealing ring

8 – Small sealing ring
