COMPRAG Screw air compressor A-Series

2.2 General description

The A-Series oil-lled screw compressor series is designed for uninterrupted and efcient

compressed-air production.

The A-Series compressor is an electric motor-operated, intake-regulated, belt-driven and air-

cooled compressor, enclosed in a

sound-insulated

canopy. An electronic controller i-Log with

an LCD indicator panel is provided, including start and stop buttons and an emergency stop

button. Pressure and temperature relays are used for system control and protection.

2.3

Function diagram and main components

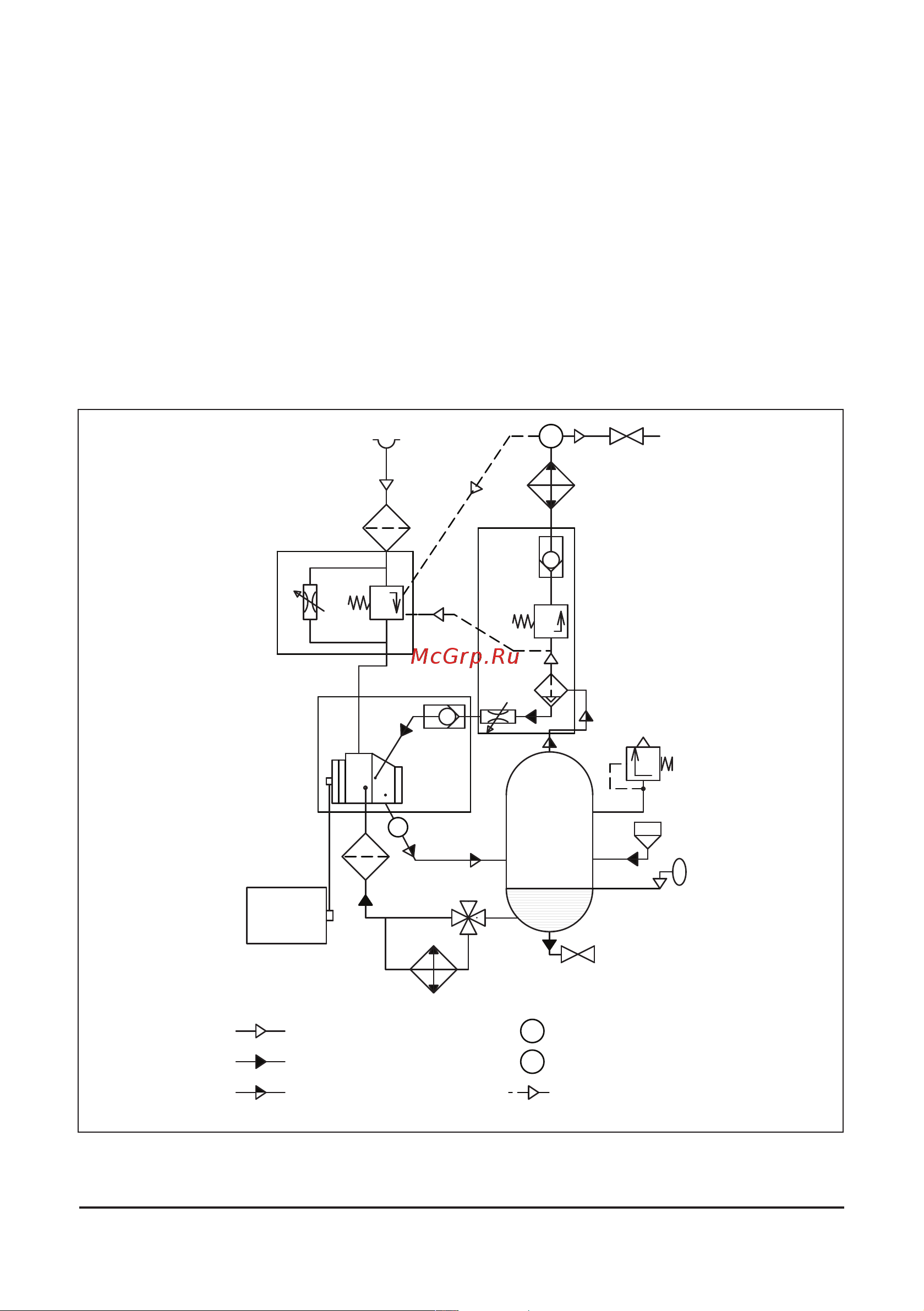

Fig. 2.3 Function diagram A30-A55

Air ﬂow

Air/Oil mix ﬂow

Oil ﬂow

Temperature sensor

Pressure sensor

Pneumatic control line
