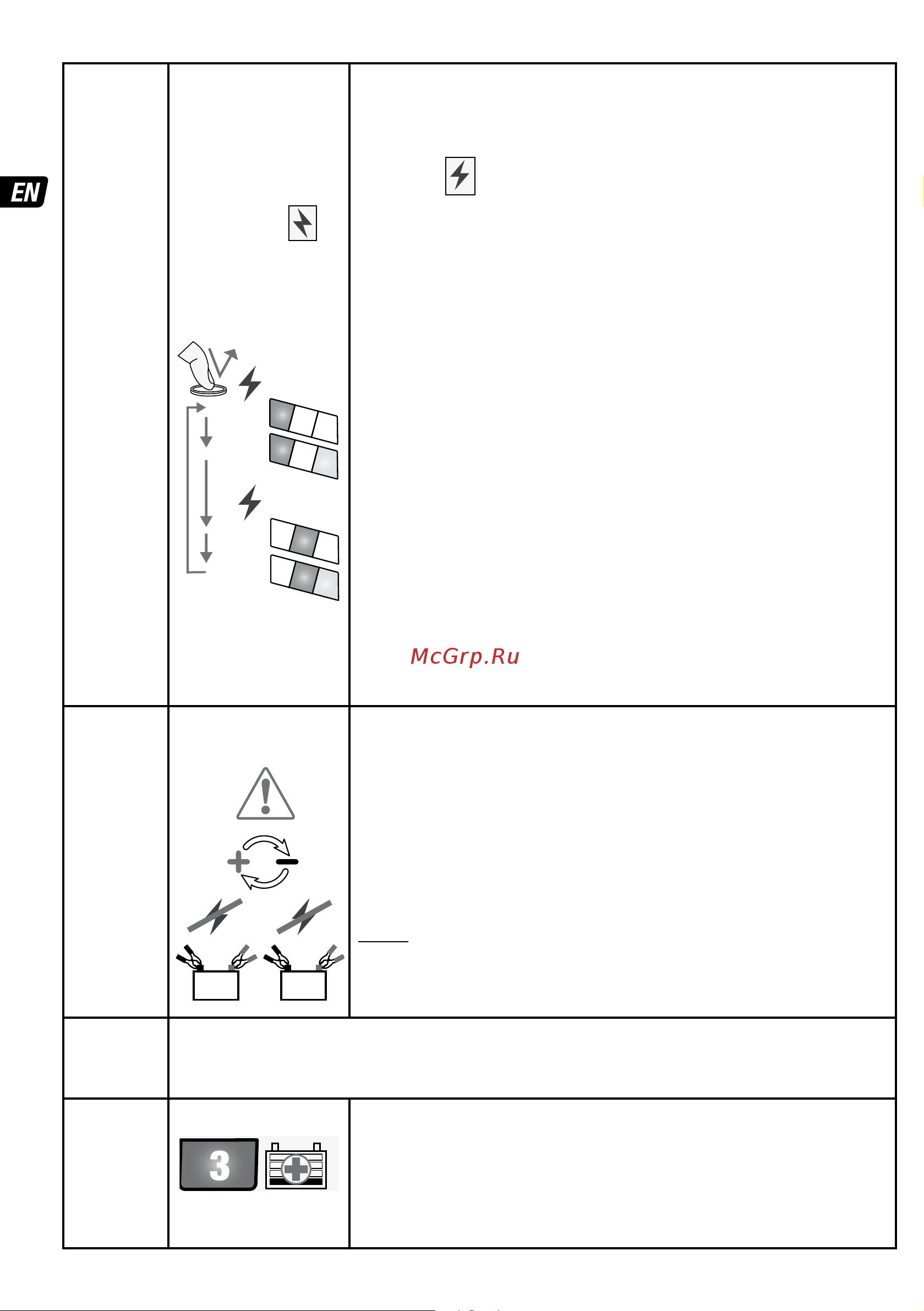

STEP 1
Voltage
Selection
1.
Disconnect
battery.
2.
Select
charge
voltage.
3.
Wait until
LEDs #3,
#4, #5, #6,
#7 & #8
flash twice,
confirming
selection is
in memory.
4.
Reconnect
battery.
NOTE:
Selection
remains
even if AC
power is
lost.
LED #1a => 12V
LED #1b => 24V
LED #1a / 1b :
Confirms AC power
supply to the charger
LED #2 =>
24-724-7
12V / 24V
Ca/Ca
1
2
V
2
4
V
12V
24V
5
4
3
1a
1b
2 8
6
7
- Lights together with
LED #1a or #1b when
a higher charge
voltage is selected.
Changing voltage selection: Push and release the pushbutton switch.
The mode selection changes when the button is released. SAVE (#3),
CHARGE (#4), OPTIMIZE(#5) and TEST (#6,7,8) LEDs flash twice to
confirm selection is in memory, confirming your battery can now be
connected.
LED #2 =>
24-724-7
12V / 24V
Ca/Ca
1
2
V
2
4
V
12V
24V
5
4
3
1a
1b
2 8
6
7
: There are 2 different charge voltages for 12V /
24V lead-acid batteries.
LED #2 OFF: 14.4V / 28.8V (2.4V / cell) - the standard charging
voltage suitable and safest for all lead-acid battery types.
TIP: If you are not sure of your battery’s charging requirements, choose
this mode to avoid overcharging the battery.
LED #2 ON: 14.7V / 29.4V (2.45V / cell) - higher charging voltage
suitable only for specific sealed AGM (absorbed glass mat) flat plate or
spiral cell batteries.
IMPORTANT: Selecting 14.7V (for 12V batteries) or 29.4V (for 24V
batteries) elevates charge voltage in STEP 5 & 6. Confirm battery charge
voltage requirement before selecting a higher charge voltage. Incorrect
selection can lead to overcharging and electrolyte loss through gassing
and can cause permanent damage.
Proceeding to charge: If the battery's voltage matches the voltage
selection the charge mode automatically activates and proceeds to
STEP 3. If it does not proceed, see STEP 2.
STEP 2
Protection
LED #1a / #1b
flashing ON/OFF
12V
24V
14.4V
14.7V
28.8V
29.4V
1b
2
1b
2
1a
1a
2
24V
12V
12V
24V
REVERSE POLARITY / incorrect battery connection (LED #1a and
#1b flashing together) : The charger is electronically protected so no
damage will result, and the output will remain disabled until the
connections are corrected.
VOLTAGE SAFETY CHECK:
12V (#1a) flashing: a battery with voltage exceeding 16V is connected
/ battery may be 24V.
24V (#1b) flashing: a battery with voltage below 18V is connected;
battery may be 12V or it may be a deep discharged 24V battery.
Action: Physically check battery. If nominal voltage is 12V, disconnect
battery and select 12V.
If nominal voltage is 24V, push and hold pushbutton switch. After 3
seconds program will proceed to STEP 3.
STEP 3
Preparing
to charge
Immediately following connection to a battery there may be a 1-2 second delay before
charging progresses, during which time battery State Of Charge and ambient temperature is
measured to determine charge requirement and duration of the State Of Health test in STEP 7.
STEP 4
SAVE
State of
charge:
less than
50%
LED #3 : RED
1a
1b
2
3
4
5
6
7
8
12V
24V
12V 6A
24V 3A
GOLD
optimate1.com
/om6-1224v
AUTOMATIC BATTERY CHARGER
+ TESTER + MAINTAINER FOR
12V & 24V LEAD-ACID BATTERIES
24-7
1
2
V
2
4
V
12V / 24V
Ca/Ca
24V
12V
12V
14.4V
14.7V
24V
28.8V
29.4V
The SAVE mode engages if the battery state of charge was less
than 50% or the battery was diagnosed as sulphated.
Charge time: Minimum 15 minutes, maximum 2 hours.
A recondition charge is applied; current is delivered in pulses to prepare
the battery to accept normal charge and increase state of charge above
50%.
12V
24V
14.4V
14.7V
28.8V
29.4V
1b
2
1b
2
1a
1a
2
24V
12V
12V
24V
