TECHNICAL SPECIFICATIONS

Maximum scanning depth*

Ferrous metals 100 mm

Non-ferrous metals (cooper) 80 mm

Copper conductors(live)** 50 mm

Wood 20 mm

Automatic shutdown 5 min

Operating temperature –10 °C ... +50 °C

Storage temperature –20 °C ... +70 °C

Power supply 1 x 9 V 6LR61 (alkaline)

Operating lifetime 6 h

Dimensions 196*76*25 mm

Weight 0,145 kg

* Depends on material and size of objects as material and condition of structure.

** Less scanning depth for wires/conductors that are not “live”.

OPERATION

Inserting/replace the battery

Remove the battery cover. Insert the batteries, observing correct polarity. Put the

battery cover back. Use 9 V alkaline batteries only. Remove the batteries when the

product is not used for a long time to avoid corrosion and battery depletion.

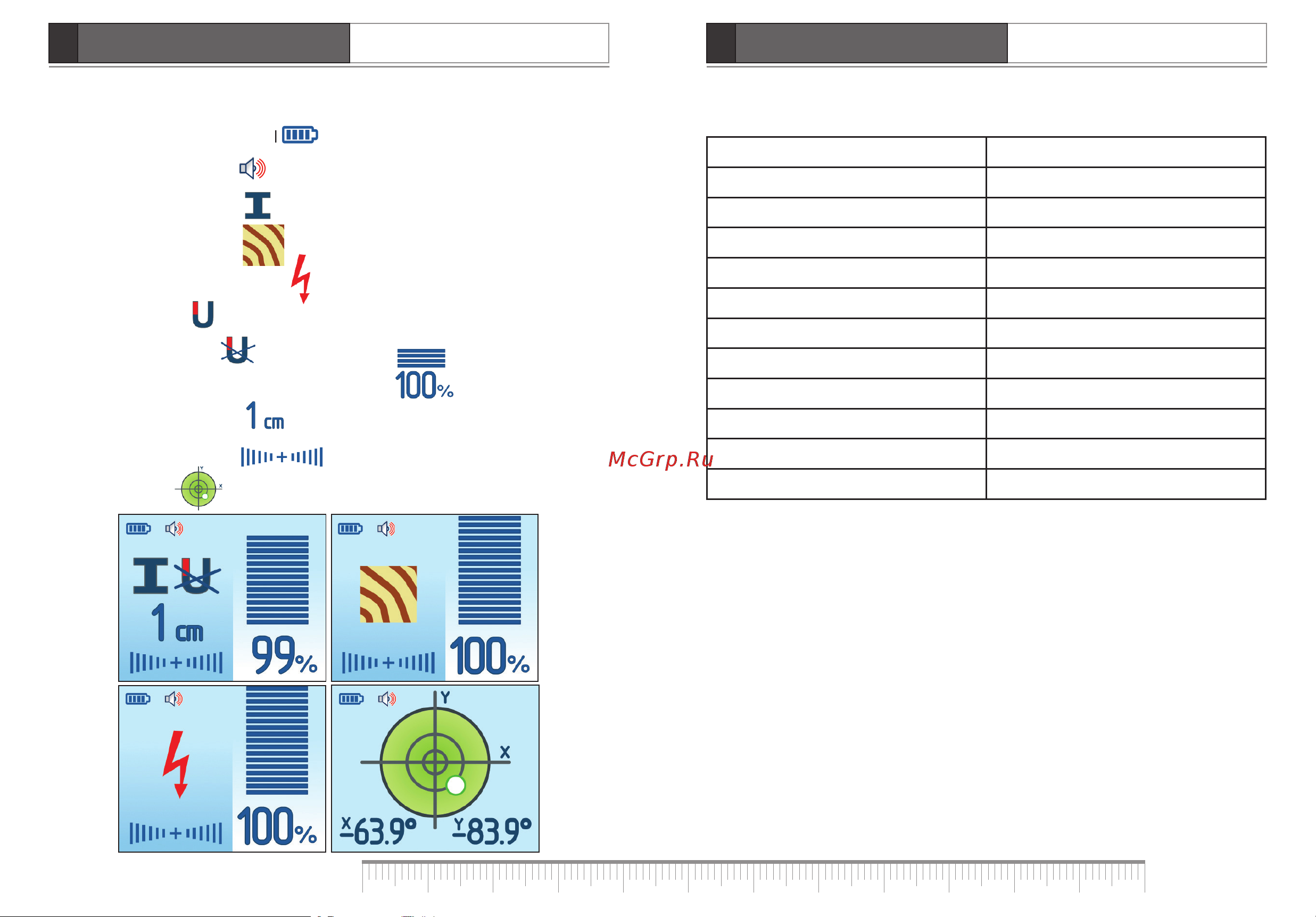

Display

- Indication of battery charge level

- Indication of sound signal

- Metal detection mode icon

- Wood detection mode icon

- Live wires detection mode icon

- Ferrous metal icon

- Non-ferrous metal icon

- Detected object approximation degree (0-100 %)

- Metal detection depth (cm)

- Detection of object center

- Digital vial mode
