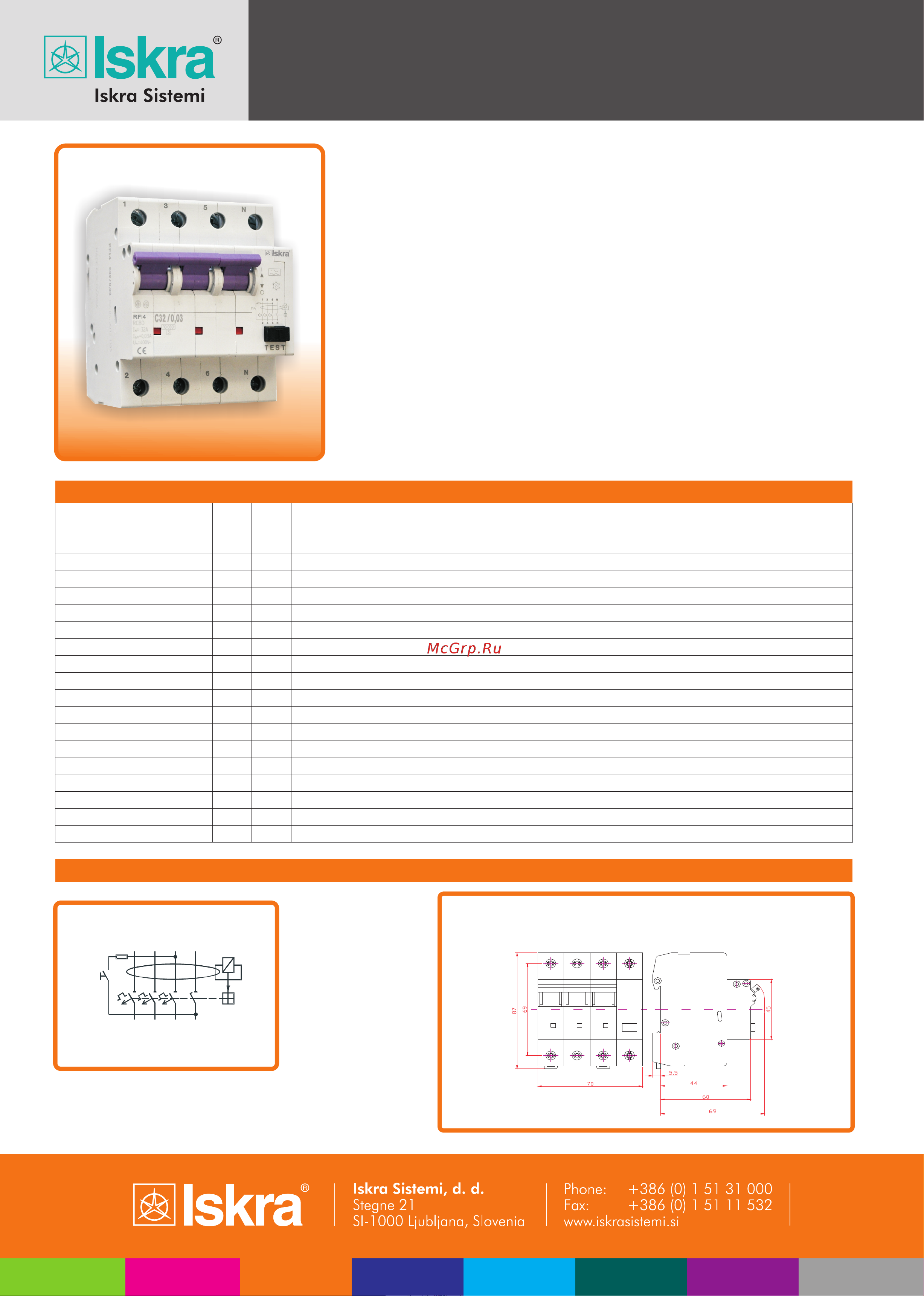

TECHNICAL DATA

Residual Current Circuit Breaker with Overcurrent Protection

RFI4

• Device is a combination of residual current circuit breaker and

miniature circuit breaker

• Rated currents 6, 10, 13, 16, 20, 25, 32, 40 A

• Used in house and similar installations

• Used for the protection against:

• Short circuit (breaking capacity 10 kA)

• Simple assembly with spring clamps to the DIN rail

• Sealable in on and off position

• Optical status indicator on the front side indicating state of device

(green - switched off, red - switched on)

• Working possition optional

• Possibility to mount auxilliary contacts

- fire

- overcurrent

- indirect contact, dangerous contact with not living parts

- additional protection in the event of direct contact with living

parts

WIRING DIAGRAM

3 5 N

4 6 N

IEC 61009-1

6, 10, 13, 16, 20, 25, 32, 40

B, C

type A - for alternatig and pulsating DC residual

assembly to 35 mm wide mounting rail in accordance with EN 60715

10.000

according to type label

400

30, 500

without belatedly

1.5 - 25

4.000

-25 up to +40

IP 20, IP 40 from the front panel

headed / stirrupted

Auxilliary and signal contacts

Electrical endurance
