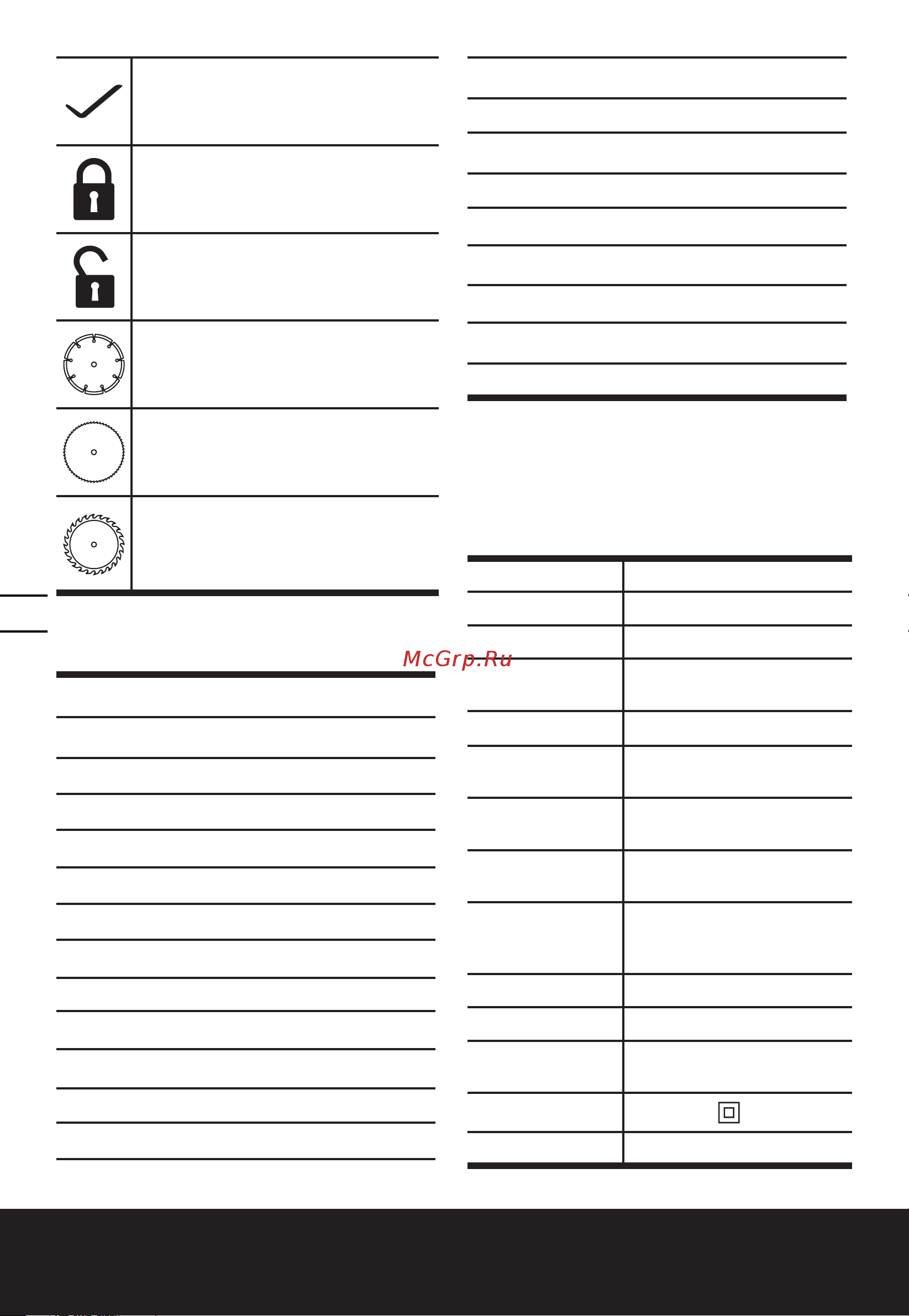

Compact Circular
Saw EN
Compact Circular Saw EN
Correct
Lock
Unlock
Abrasive cutting disc
HSS blade
TCT blade
COMPONENT LIST
1. SOFT GRIP HANDLE
2. HEX KEY
3. LOCK OFF BUTTON
4. ONOFF SWITCH
5. FIXED UPPER GUARD
6. LOWER GUARD LEVER
7. BASE PLATE
8. LOWER BLADE GUARD
9. SPINDLE LOCK BUTTON
10. VACUUM ADAPTER
11. DEPTH ADJUSTMENT LEVER
12. PARALLEL GUIDE
13. SAW BLADE*
14. INNER FLANGE
15. BLADE BOLT
16. BEVEL ADJUSTMENT LEVER
17. DUST EXTRACTION OUTLET
18. PARALLEL GUIDE CLAMPING FIXTURE
19. OUTER FLANGE
20. LASER GUIDE
21. LASER ONOFF SWITCH SEE FIG. D1
22. LASER BATTERIES TWO SEE FIG. E2
* Not all the accessories illustrated or described
are included in standard delivery.
TECHNICAL DATA
Type WX437 WX437.X (4-designation of
machinery, representative of Saw)
WX437 WX437.X**
Voltage 230-240V~50/60Hz
Rated Power 800W
No load speed
(MAX.)
4700 /min
Blade size
TCT blade (WA5100)
120 mm X1.5mmX 9.5mm
X 24T
HCS blade
(WA8302)
115 mm X1.2mmX 9.5mm
X 60T
Abrasive cutting
disc (WA5048)
115 mmX1.6mm X9.5mm X
60G
Cutting capacity
Cutting Depth at 90°
Cutting Depth at 45°
42.5mm
28.5mm
Bevel capacity 0-45°
Arbor size
9.5 mm
Laser battery model
no.
LR44 1.5V
Protection class
/II
Bare tool weight 2.3kg
