*2019522*
2019522 English 21
3 Description

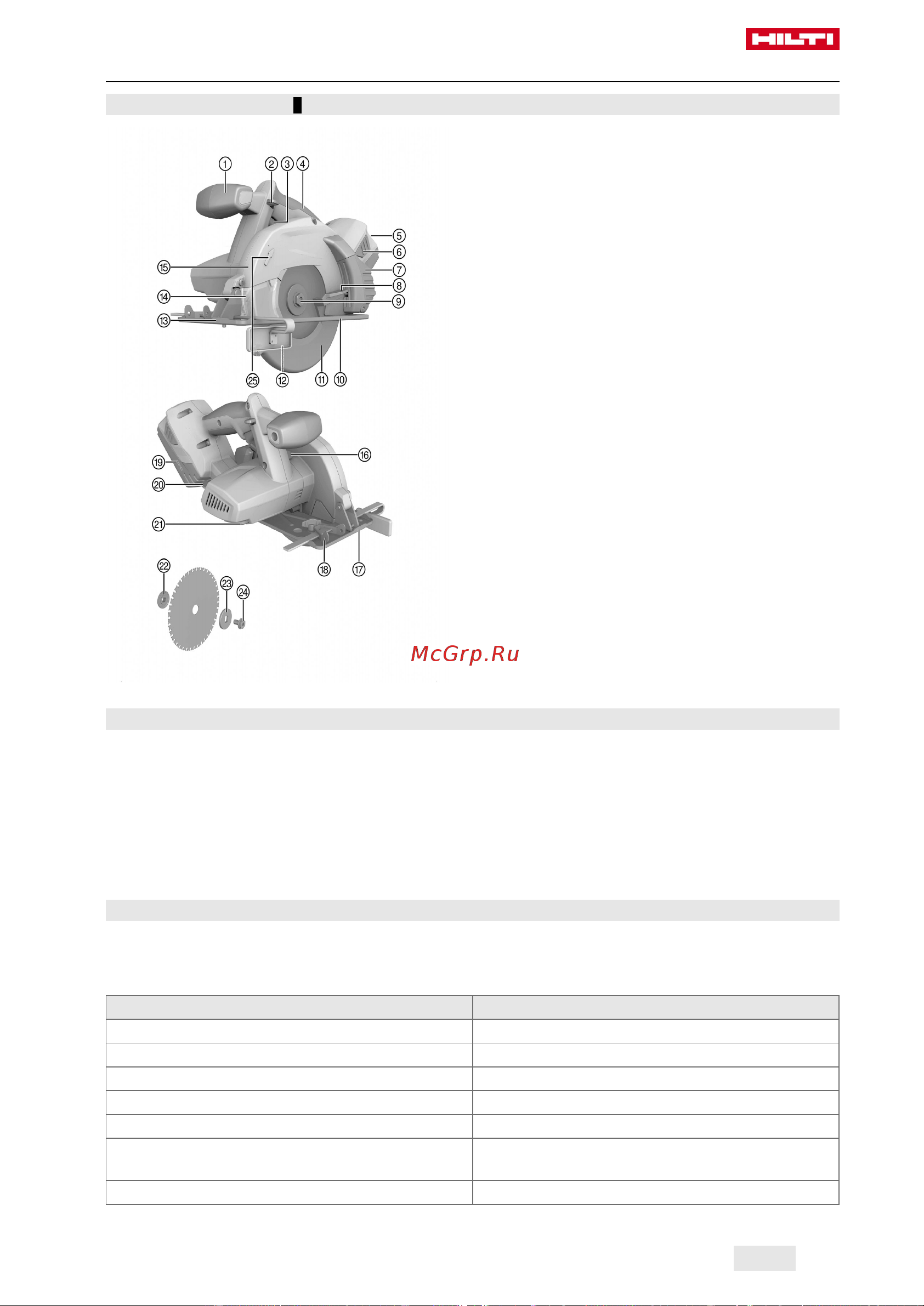

3.1 Product overview 1
@
Auxiliary grip
;
Switch-on interlock release button
=
On/off switch
%
Grip
&
Charge-status and fault indicator
(
Release button with additional function
(charge status display activation)
)
Chip collector
+
Pivoting guard operating lever
§
Arbor
/
Base plate
:
Pivoting guard
∙
Fence
$
Saw blade position indicator
£
LED / viewing window
|
Guard
¡
Spindle lock button
Q
Cutting line indicator
W
Clamp for fence
E
Battery
R
Clamping lever for cutting depth adjustment
T
Hex key
Z
Mounting flange
U
Clamping flange
I
Clamping screw
O
Direction-of-rotation arrow
3.2 Intended use
The product described is a cordless circular saw. It is designed for cutting metal or materials similar to metal.
The use of saw blades not in compliance with the given specification (e.g. diameter, speed of rotation,
thickness) or the use of cutting and grinding discs or blades made from high-alloy steel (HSS steel) is not
permissible. Do not use the saw to cut wood or wood-like materials, plastics, gypsum board, gypsum
fiberboard and composite materials.
▶ Use only Hilti Liion batteries of the B 22 series with this product.
▶ Use only Hilti battery chargers of the C4/36 series for charging these batteries.
3.3 Liion battery display
The charge status of the Li-ion battery and malfunctions of the power tool are indicated by the display on
the Liion battery. The charge status of the Liion battery is displayed after pressing one of the two battery
release buttons.
Status Meaning
4 LEDs light. Charge status: 75 % to 100 %
3 LEDs light. Charge status: 50 % to 75 %
2 LEDs light. Charge status: 25 % to 50 %
1 LED lights. Charge status: 10 % to 25 %
1 LED blinks, the power tool is ready for use. Charge status: < 10 %
1 LED blinks, the power tool is not ready for use. The battery has overheated or is completely dis-
charged.
4 LEDs blink, the power tool is not ready for use. The power tool is overloaded or has overheated.
Printed: 06.06.2019 | Doc-Nr: PUB / 5142664 / 000 / 04
