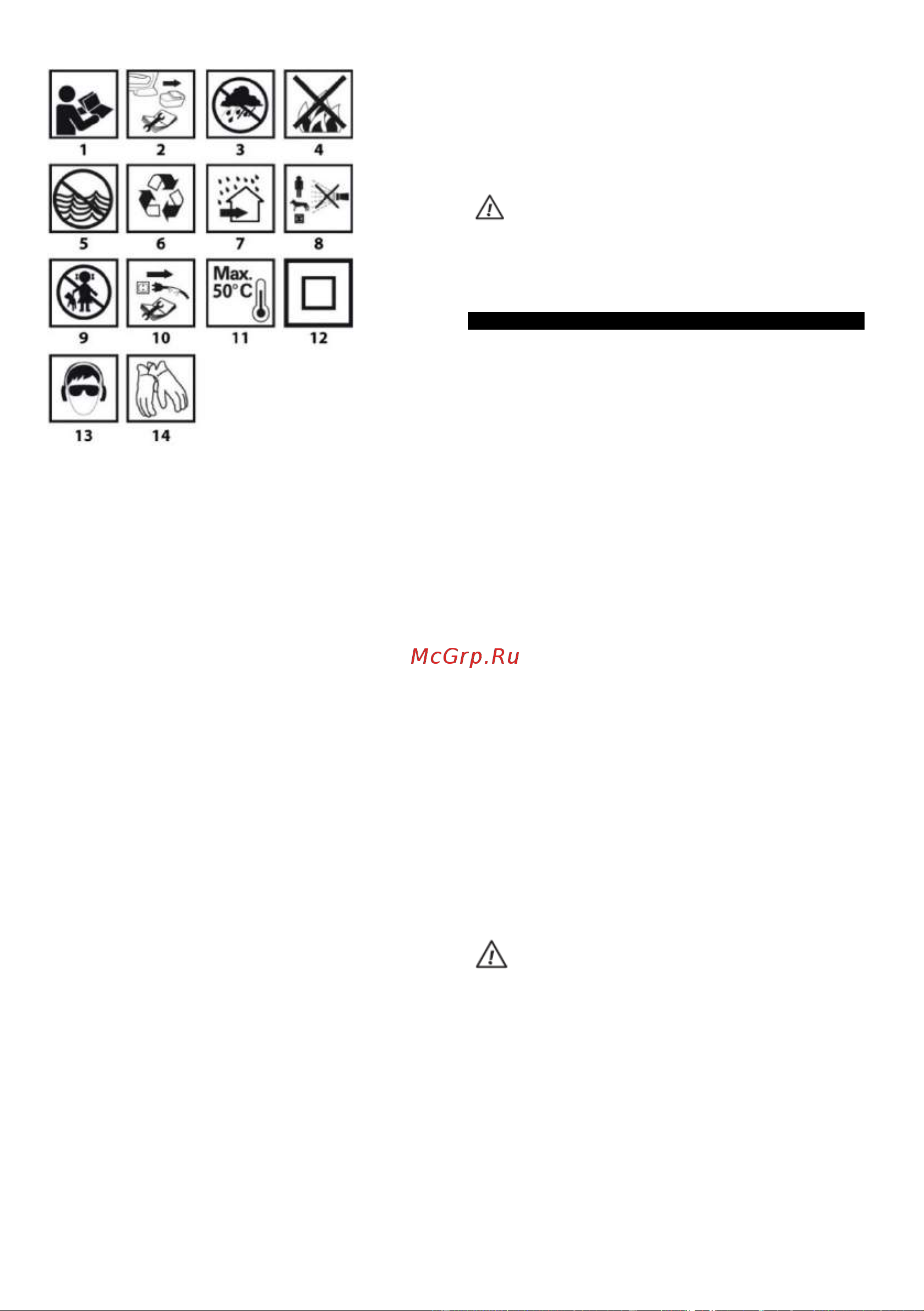

Explanation of used symbols

1. Read instruction manual, observe warnings and safety

conditions therein!

2. Remove the battery from the device before starting any

adjustments or cleaning related tasks.

3. Protect the tool from moisture.

4. Do not throw cells into fire.

5. Hazardous to water environment.

6. Recycling.

7. For use indoors

8. Do not direct stream onto people, animals or live installations.

9. Keep the tools away from children.

10. Disconnect the charger before repairs.

11. Maximum permissible cell temperature.

12. Protection class 2.

13. Use personal protection equipment (protective goggles,

earmuff protectors).

14. Use protective gloves.

DESIGN AND INTENDED USE

The compressor is a compact, mobile device powered from the

battery, which allows for use in any place. The drive consists of DC

motor that runs the compressor. The device is equipped with backlit,

digital manometer, LED illumination, feature of automatic switching

off when the target pressure is obtained and memory function for

last selected pressure before the device was switched off previously.

The compressor is used to inflate objects like car or bike tyres, tyres

for mowers, sports equipment, inflatable mattresses, beach toys and

other inflatable objects. The compressor is not designed to inflate

high volumes, like in rubber pontoons and large inflatable

mattresses.

Do not use the tool to fill air tanks in respiratory equipment or for

chemical spraying.

DESCRIPTION OF DRAWING PAGES

Below enumeration refers to the device elements depicted on the

drawing pages of this manual.

1. Fixing nut

2. Switch

3. Illumination

4. Display screen

5. Button “+"

6. On/Off button on display

7. Button “−"

8. Battery lock button

9. Battery

10. Charger

11. LED diodes

12. Button for battery level indication

13. Battery level indicator (LED)

14. Compressed air hose

15. Adapter for compressed air hose

* Differences may appear between the product and drawing.

MEANING OF SYMBOLS

WARNING

EQUIPMENT AND ACCESSORIES

1. Compressed air Hose - 1 pce

2. Various inflating tips - 6 pcs

PREPARATION FOR OPERATION

REMOVING AND INSERTING THE BATTERY

• Push the battery lock button (8) and slide out the

battery (9) (fig. A).

• Insert charged battery (9) into the battery installation socket in

the handle, you should hear when the battery lock button (8)

snaps.

BATTERY CHARGING

The device is supplied with partially charged battery. Charge the

battery in ambient temperature between 4°C and 40°C. New battery,

or one that has not been used for a long time, will reach full

efficiency after approximately 3 to 5 charge/discharge cycles.

• Remove the battery (9) from the device (fig. A).

• Connect the charger to mains socket (230 V AC).

• Slide the battery (9) into the charger (10) (fig. B). Make sure the

battery is properly fitted (pushed to the end).

When the charger is connected to a mains socket (230 V AC), the

green diode (11) on the charger turns on to indicate connected

supply.

When the battery (9) is placed in the charger (10), the red diode (11)

on the charger turns on to indicate that the charging is in progress.

At the same time green diodes (13) of the battery level indication

are flashing in different configurations, see description below.

• All diodes are flashing – the battery is empty and requires

charging.

• 2 diodes are flashing – the battery is partially discharged.

• 1 diode is flashing – the battery level is high.

Once the battery is charged, the diode (11) on the charger lights

green, and all battery level indication diodes (13) light continuously.

After some time (approx. 15 s) the battery level indication diodes

(13) turn off.

Do not charge the battery for more than 8 hours.

Exceeding this time limit may cause damage to battery cells.

The charger does not turn off automatically when the battery is

full. Green diode on the charger will remain on. Battery level

indication diodes turn off after some time. Disconnect power

supply before removing the battery from the charger socket.

Avoid consecutive short chargings. Do not charge the battery

after short use of the tool. Significant decrease of the period

between chargings indicates the battery is worn out and should

be replaced.

Batteries heat up strongly during charging process. Do not

work just after charging has been finished, wait until the

battery cools down to room temperature. It will prevent battery

damage.
